51 16 181 Replacing Center Console Carrier Section
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove base for center console on storage tray. Refer to 51 16 188 REPLACING BASE FOR CENTER CONSOLE ON STORAGE TRAY .

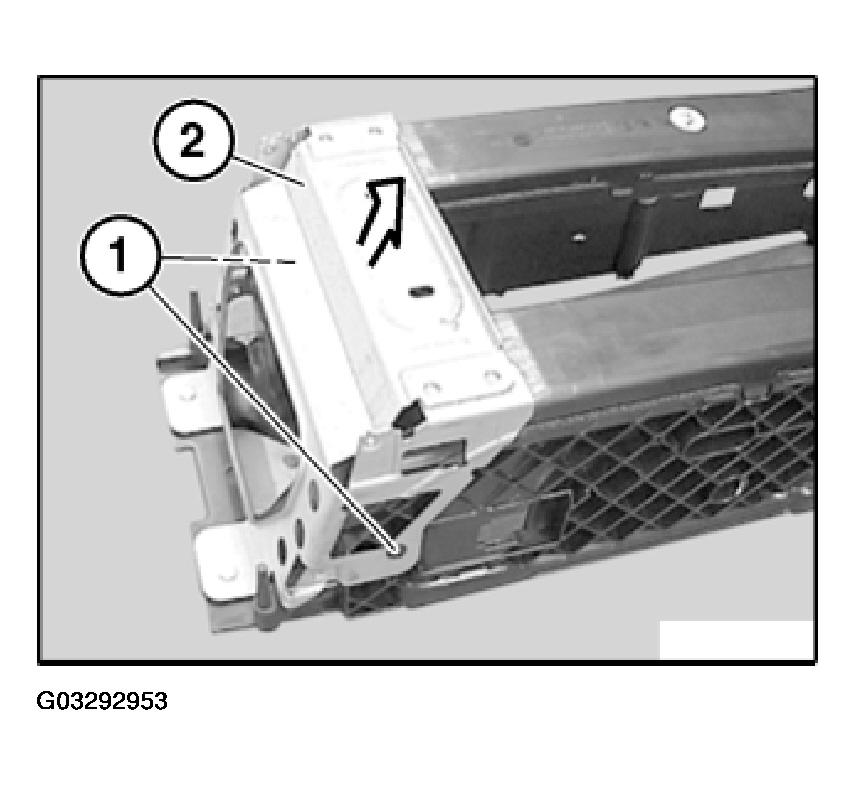

Release screws (1).
Remove carrier (2) in direction of arrow.
