51 71 447 Removing And Installing Or Replacing Panel For Cover On Left Or Right Side Member

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach wheel arch cover from front/rear side member cover. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER and 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

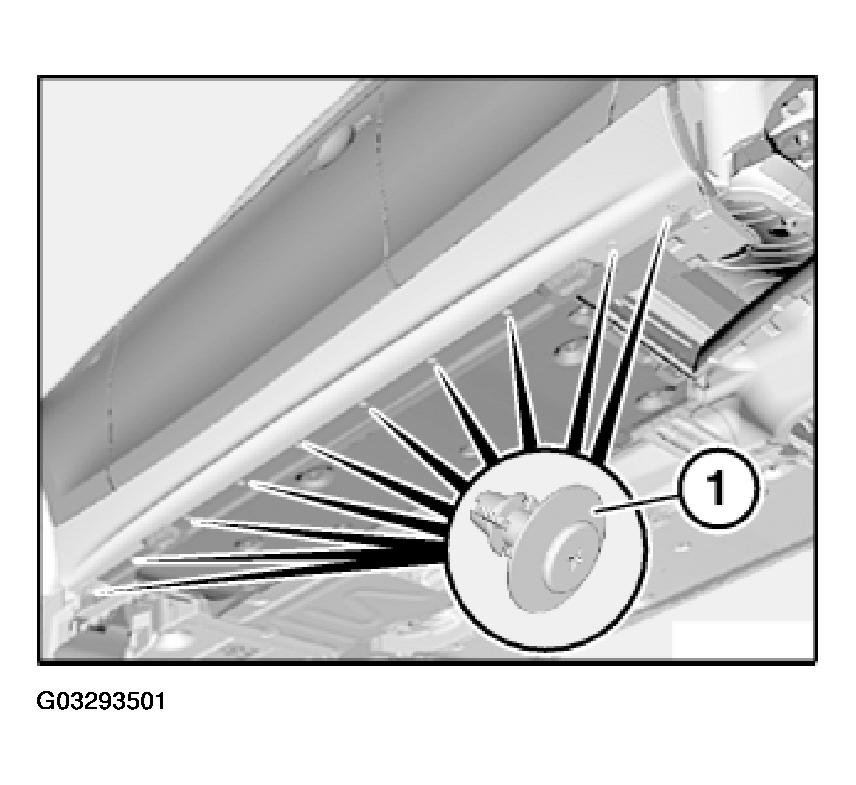

Release screws (1).

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

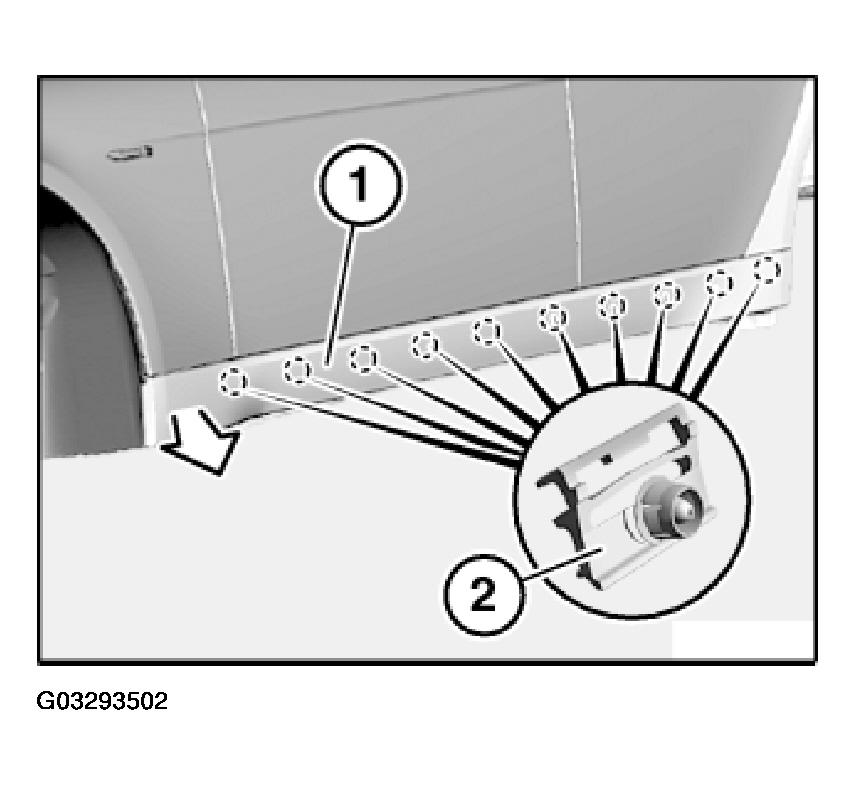

Unclip panel (1) at holders (2) in direction of arrow and remove.

Fig 2: Locating Panel Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

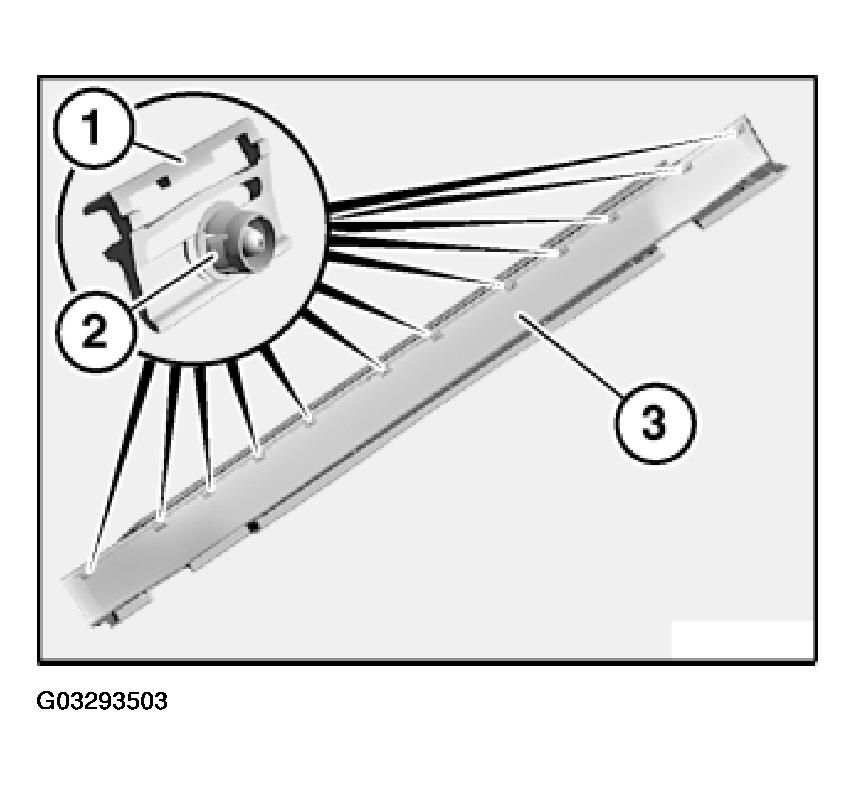

Before installation, soak holders (1) in water.

If necessary, detach holders (1) from body and fit on panel (3).

If necessary, detach grommets (2) from holders (1) and place on body.

If necessary, replace faulty holders (1) and grommets (2).

Fig 3: Identifying Holders And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
