51 23 211 Removing And Installing/Replacing Cable For Front Engine Hood Locks (To Passenger Compartment)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove microfilter air duct. Refer to 64 31 031 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C HIGH) .
Remove footwell side trim panel on A-pillar. Refer to 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .

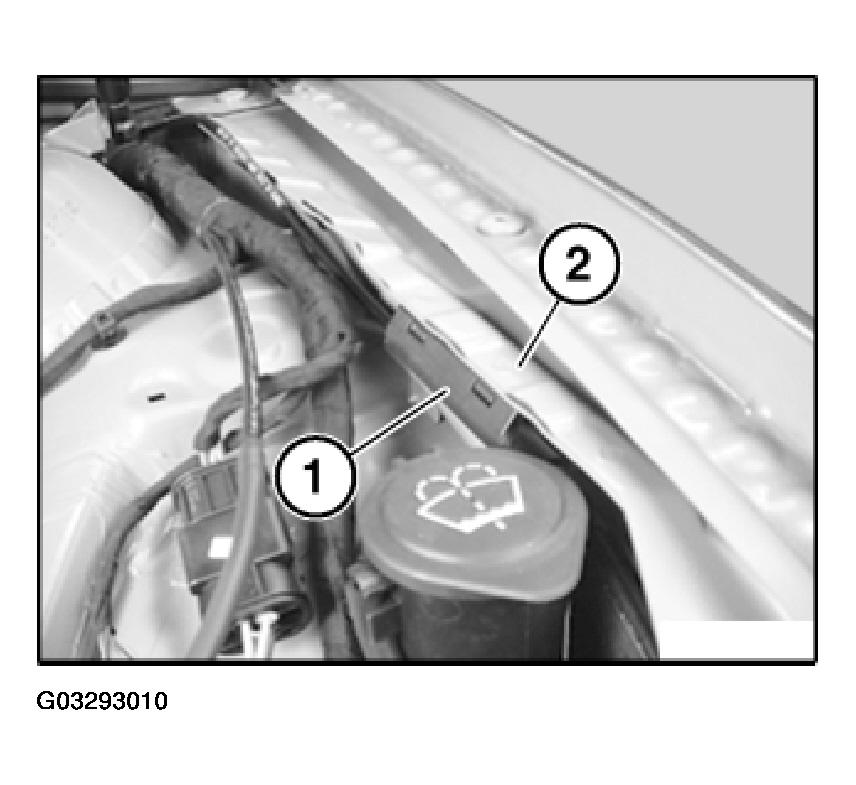

Lever connecting element (1) out of side panel (2).

Fig 1: Identifying Lever Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

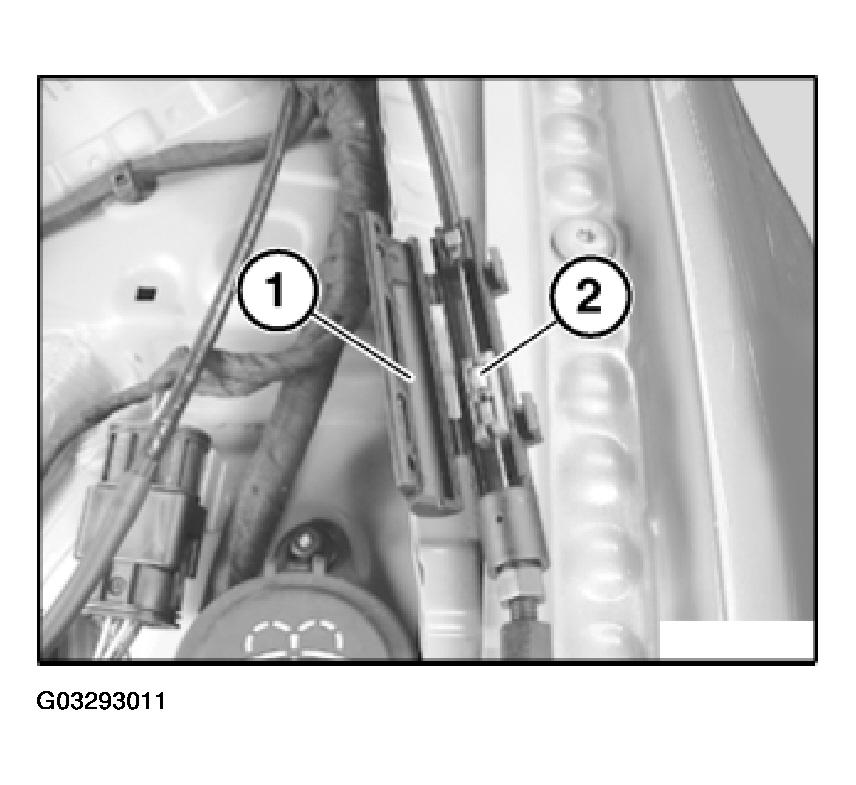

Open connecting element (1) and disengage Bowden cable (2).

NOTE: The scope of work "Disconnecting Bowden cable at connection point" ends here.

Fig 2: Opening Connecting Element And Disengaging Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

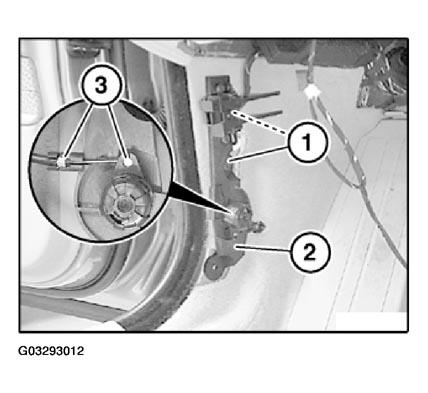

Release screws (1).

Remove fixture (2) and feed out Bowden cable (3).

Fig 3: Removing Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

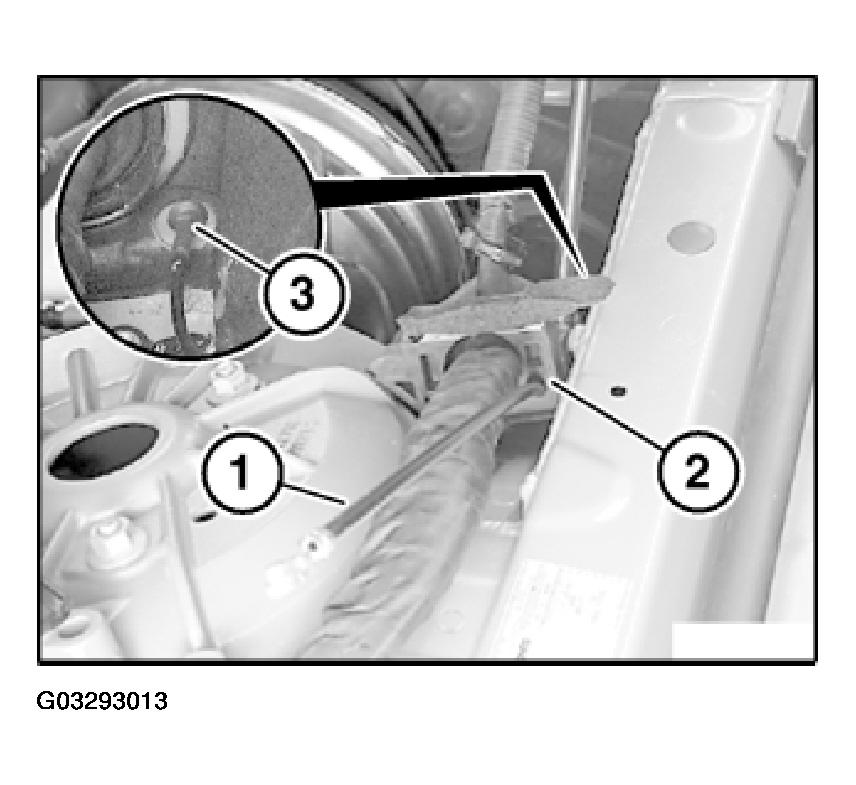

Feed Bowden cable (1) out of grommet (2).

Carefully feed Bowden cable (1) with grommet (3) out of vehicle interior.

IMPORTANT: Make sure grommets (2 and 3) are correctly seated (water ingress).

Installation:

Lay Bowden cable (1) without kinks.

Fig 4: Feeding Bowden Cable Out Of Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
