51 32 420 Removing And Installing/Replacing Trim On Front Door Window Frame, Left Or Right

Necessary Preliminary Tasks:

• Remove front window cavity cover strip. Refer to 51 21 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP (ON OUTSIDE OF FRONT DOOR) .

Partially detach rubber window seal (1) at rear.

Installation:

Coat rubber window seal (1) with water before fitting.

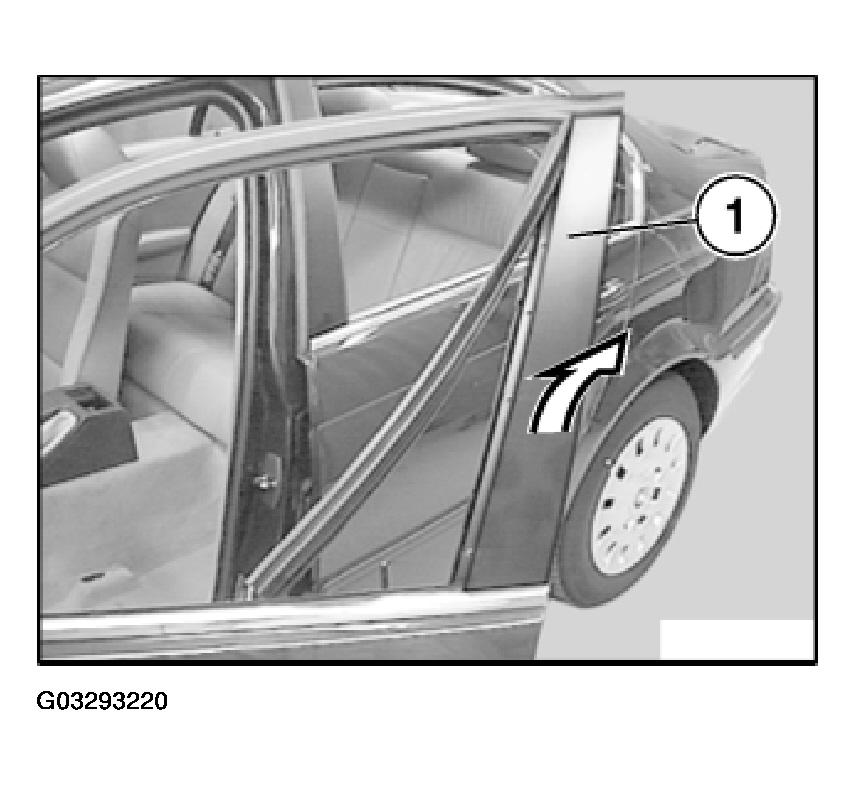

Fig 1: Detaching Rubber Window Seal At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Press trim (2) towards rear and lever out sideways.

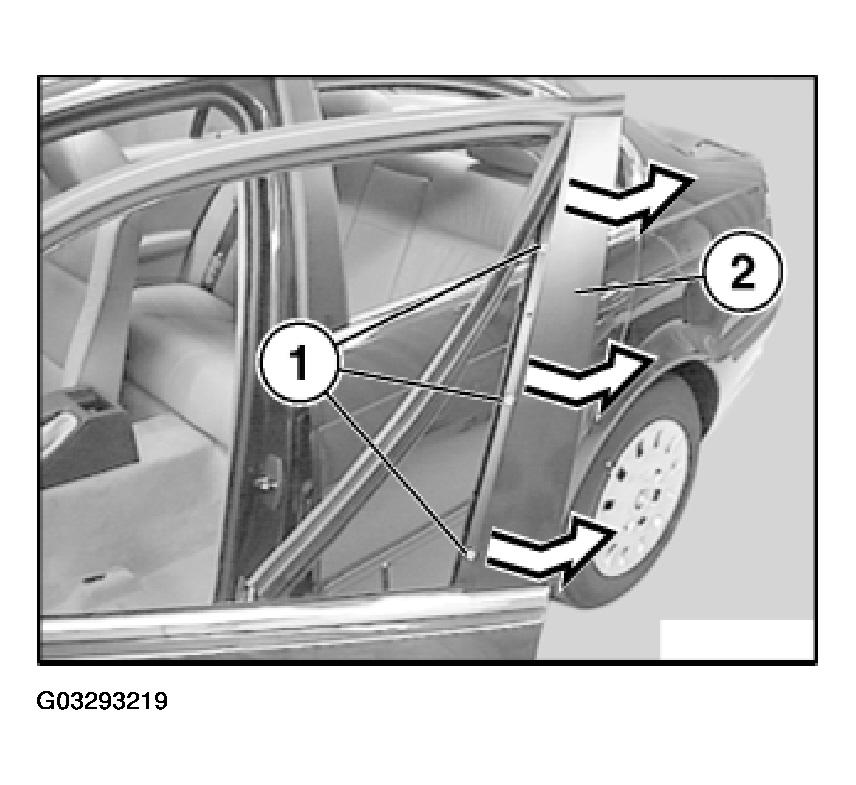

Fig 2: Identifying Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (1) towards top.

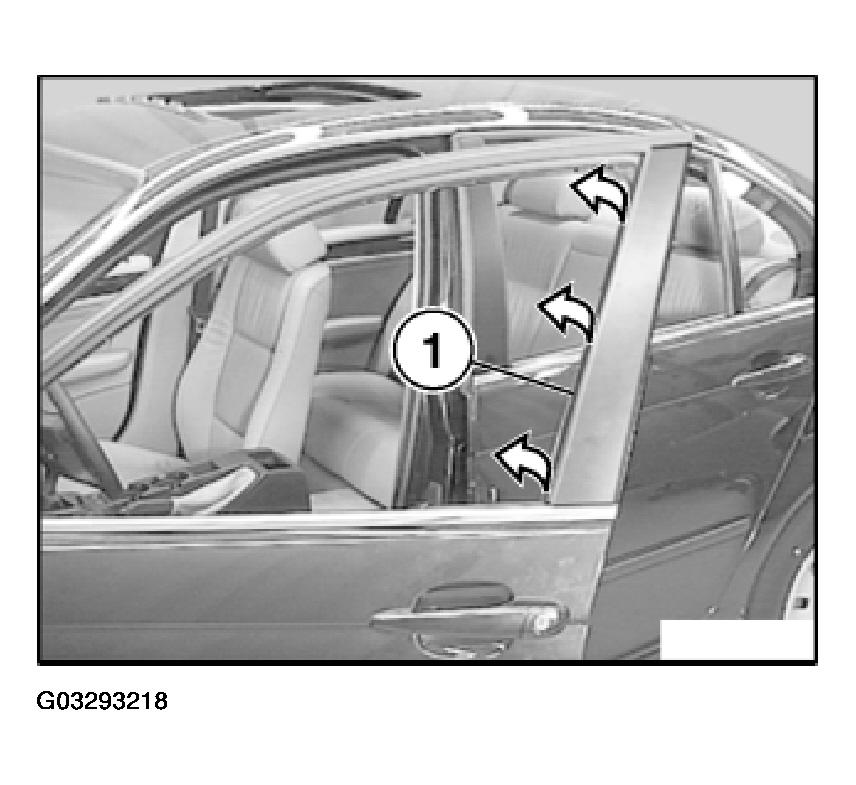

Fig 3: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty plastic nuts (1).

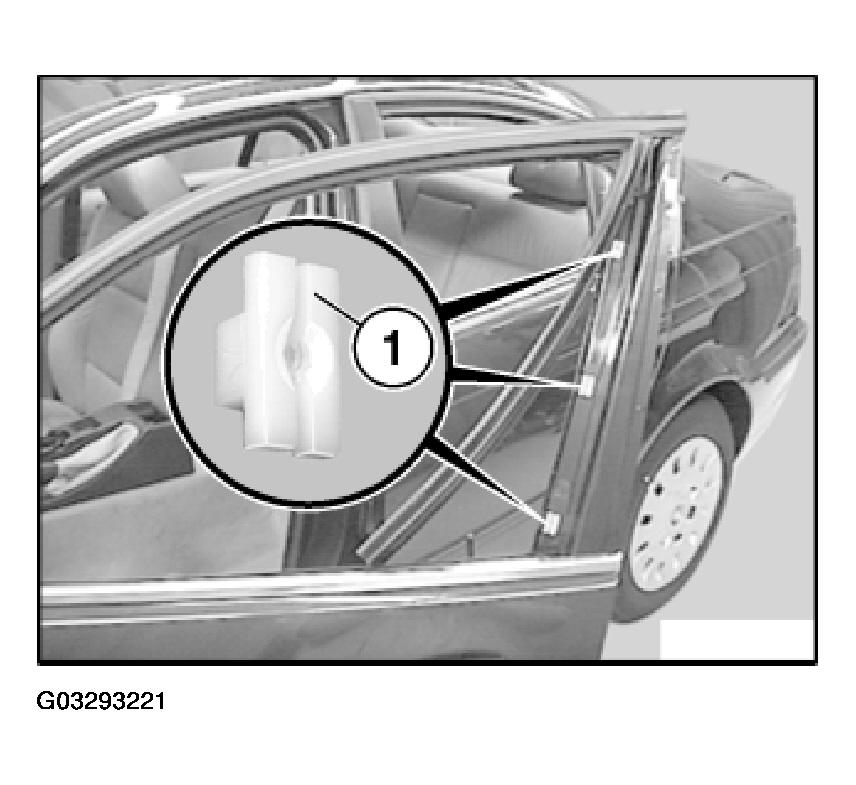

Fig 4: View Of Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check trim (1) for damage, replace if necessary.

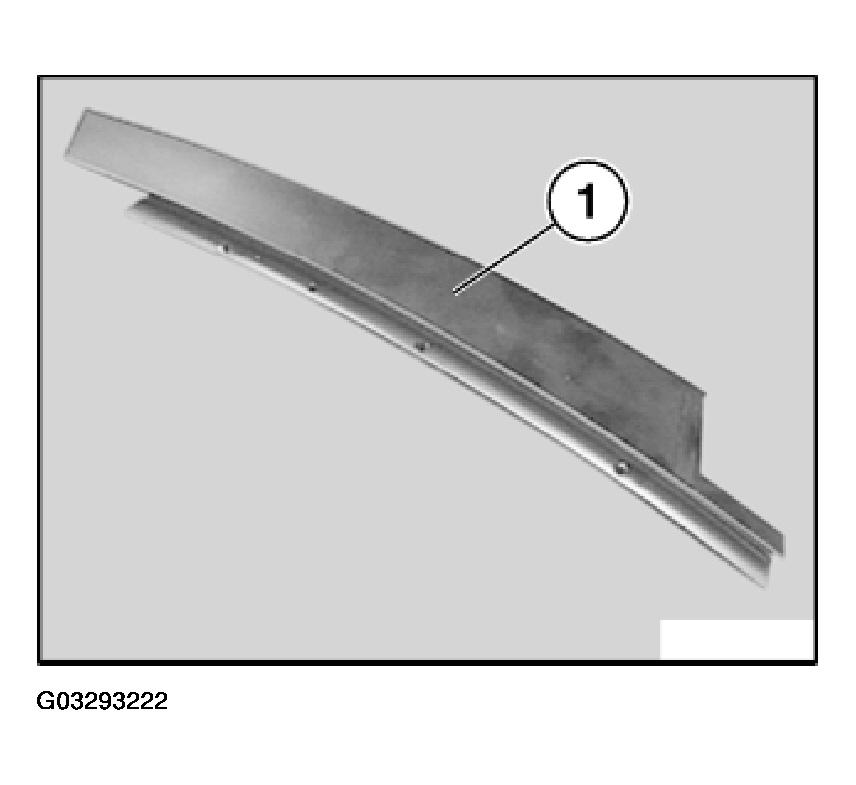

Fig 5: Identifying Trim

Courtesy of BMW OF NORTH AMERICA, INC.
