51 21 302 Removing And Installing/Replacing Chrome Strip For Window Cavity Cover Strip (On Outside Of Front Door)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 311

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

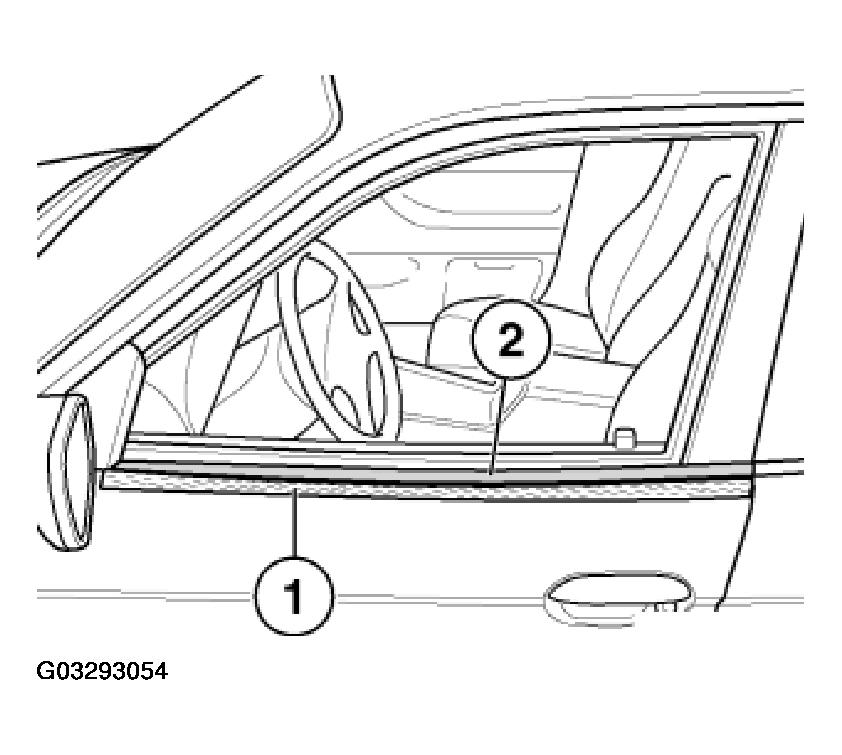

Fig 1: Identifying Adhesive Tape Application Area On Door

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 00 9 311 beginning at rear (1) proceeding to front (2), lever out window cavity cover strip.

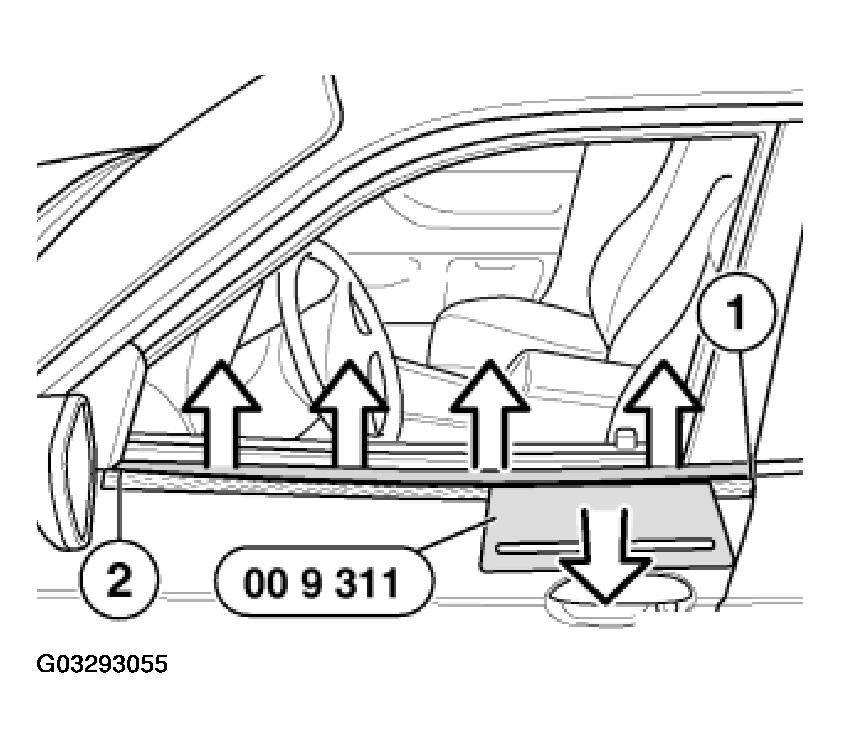

Fig 2: Removing Window Cavity Cover Strip Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Pull window cavity cover strip (1) out of mirror (2) in direction of arrow and remove.

Installation:

Moisten window cavity cover strip (1) with water.

Window cavity cover strip (1) must be flush at rear to door edge.

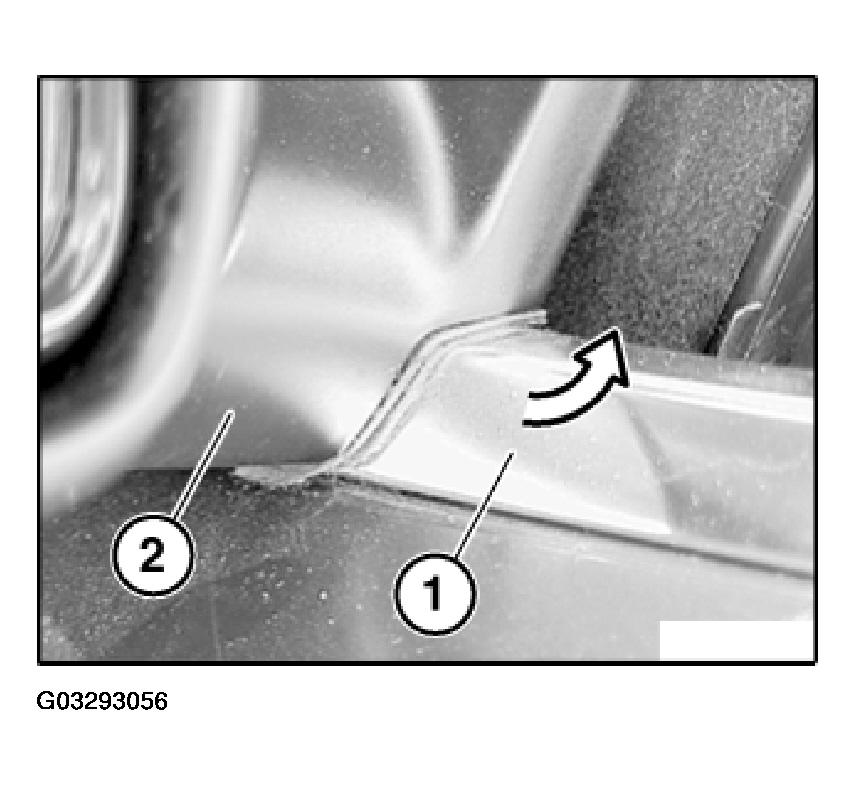

Fig 3: Removing Window Cavity Cover Strip Out Of Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must be correctly fitted in chrome strip (2).

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

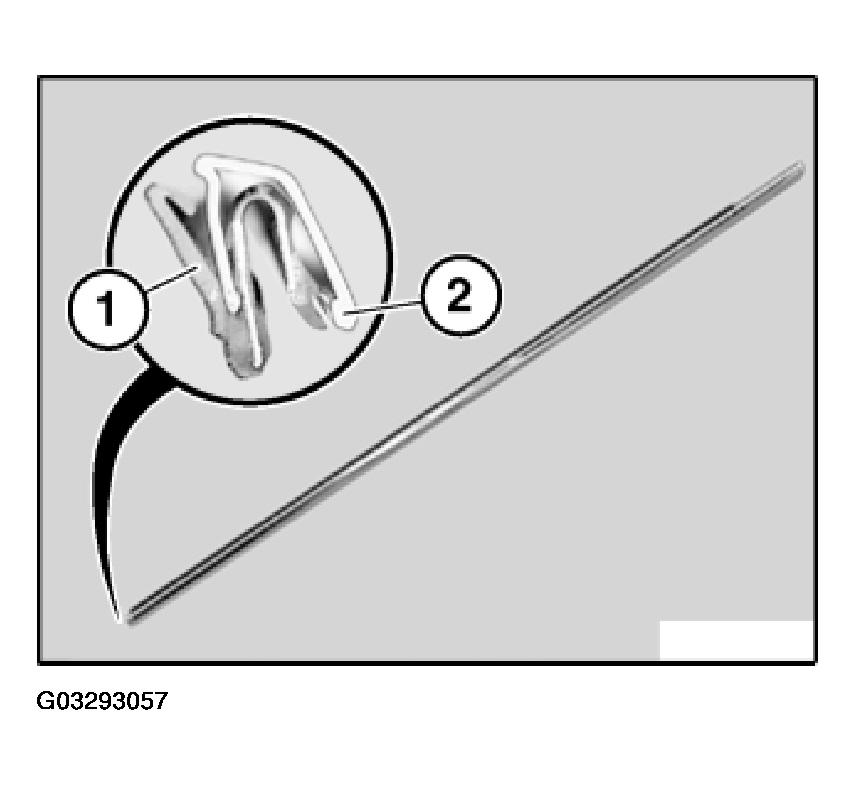

Fig 4: Fitting Seal In Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
