51 32 154 Adjusting Left Or Right Front Door Window Glass

Special Tools Required:

• 61 2 071
• 61 2 210

Necessary Preliminary Tasks:

• Remove door brake for front door. Refer to 51 21 280 REMOVING AND INSTALLING OR REPLACING DOOR BRAKE ON LEFT OR RIGHT FRONT DOOR .

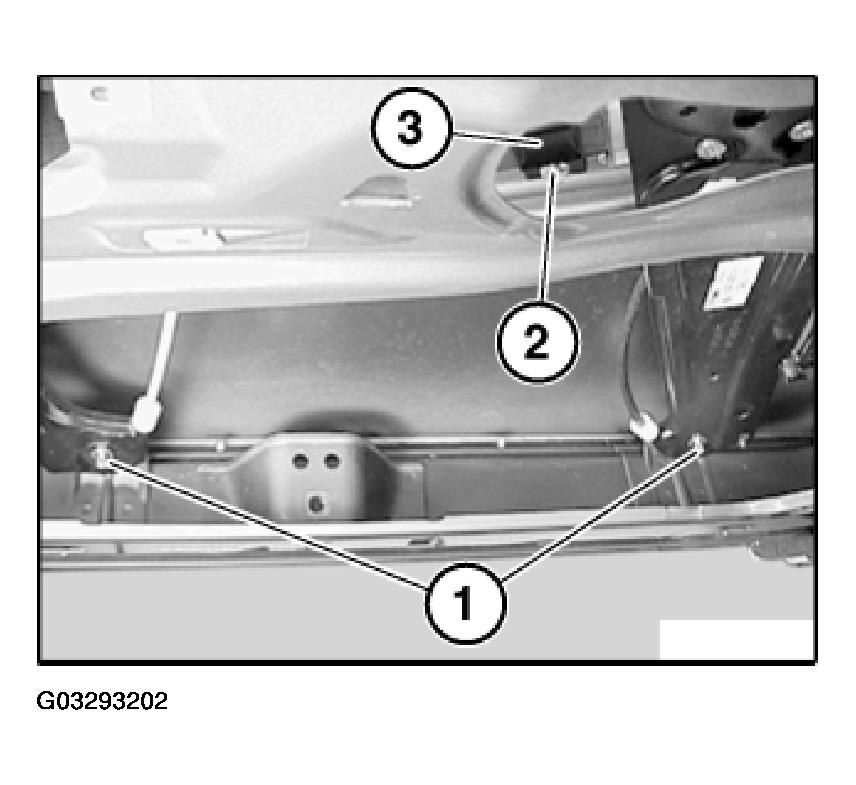

Slacken screws (1 and 2) (do not release fully).

Retaining clip (3) remains fitted.

Fig 1: Locating Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

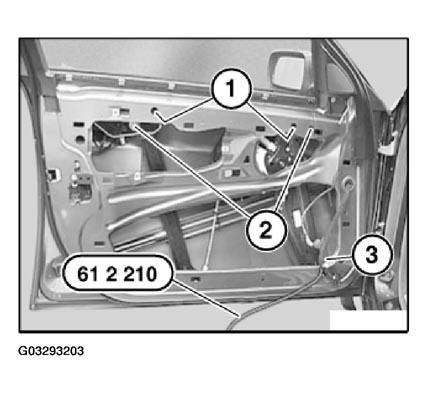

Screws (1) of power window rails at top must be tightened down.

Slacken screws (2) of door window (do not release fully).

Connect special tool 61 2 210 to plug connection (3) and special tool 61 2 071. Connect special tool 61 2 071 to a 12 V power source.

Fig 2: Connecting Special Tool To Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Open door window approx. 100 mm and close again completely.

Tighten down screws (2) of door window.

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

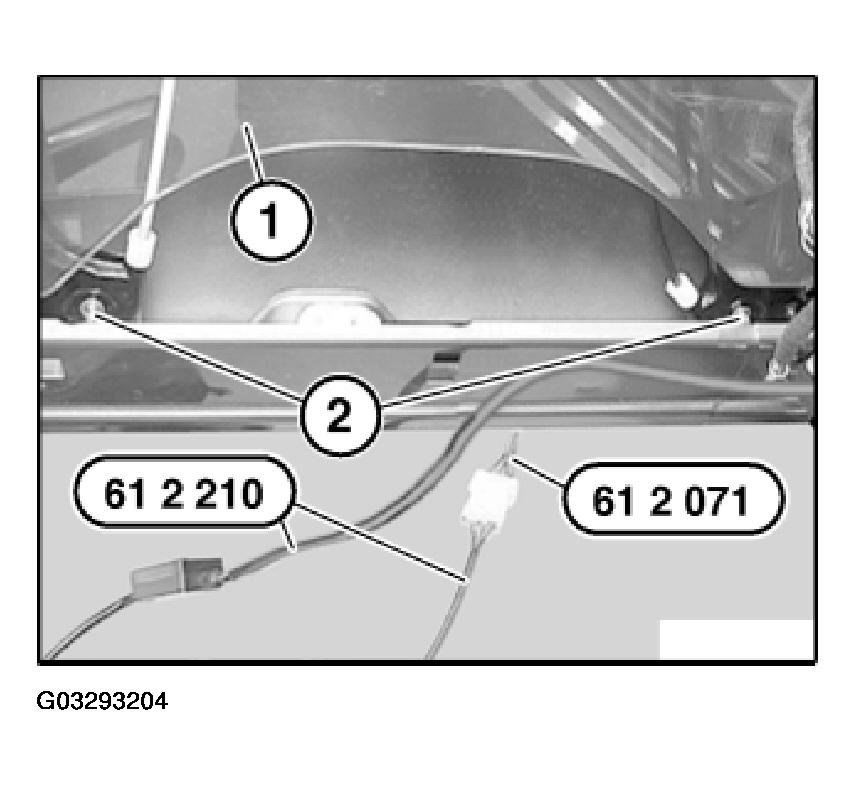

Using special tools 61 2 210 and 61 2 071, open door window (1) to approx. 40 mm.

Tighten down screws (2).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Opening Door Window Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

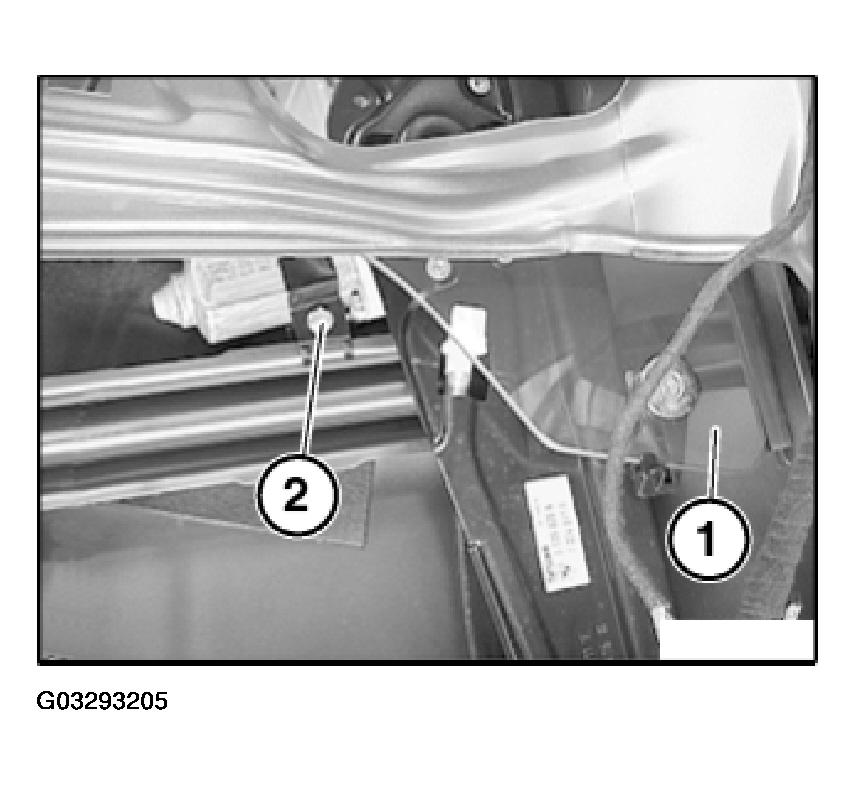

Close door window (1) until screw (2) is accessible.

Tighten screw (2).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Close door window (1) completely.

Installation:

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

Fig 4: Closing Door Window

Courtesy of BMW OF NORTH AMERICA, INC.
