51 21 280 Removing And Installing Or Replacing Door Brake On Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Close door windows.
Detach door brake from door pillar. Refer to 51 21... RELEASING DOOR RETAINER FROM LEFT OR RIGHT DOOR PILLAR .
Remove function carrier. Refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR , 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR and/or 51 22 435 REMOVING AND INSTALLING FUNCTION CARRIER (WITH ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR .

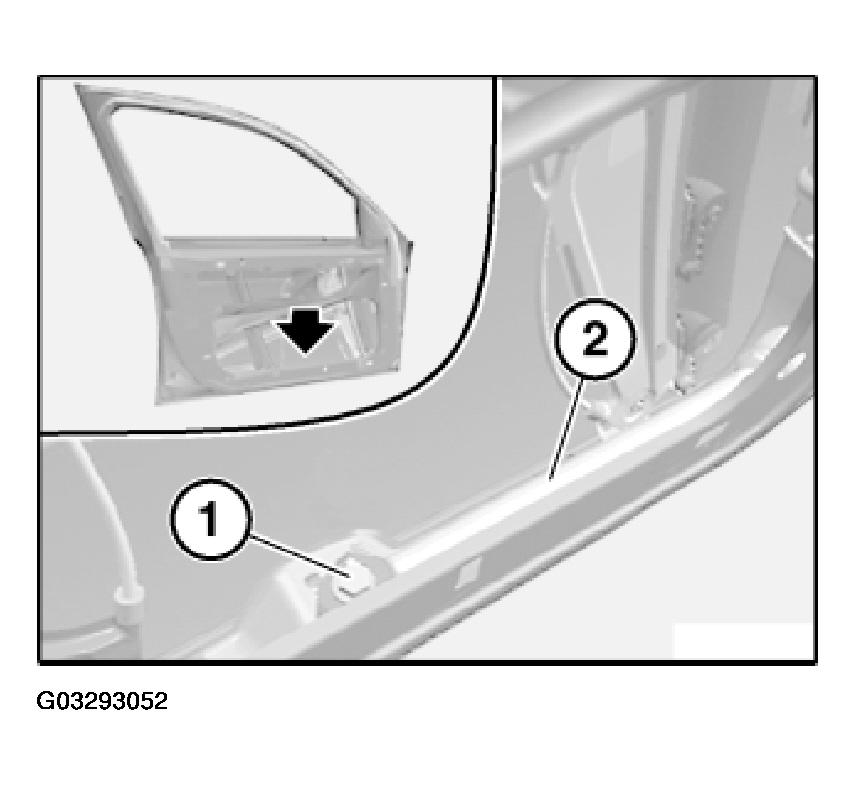

Release screw (1) and remove door brake (2).

Fig 1: Locating Door Brake Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

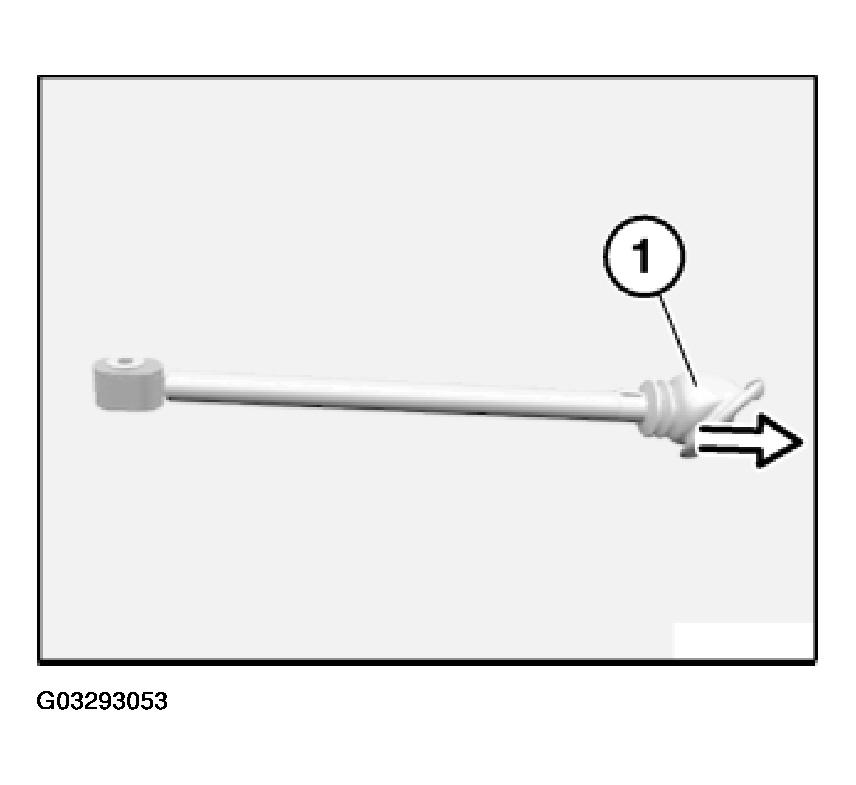

If necessary, detach seal (1).

Fig 2: View Of Door Brake Seal

Courtesy of BMW OF NORTH AMERICA, INC.
