51 33 000 Removing And Installing Power Window Unit In Left Or Right Front Door

Necessary Preliminary Tasks:

• Remove front door window glass. Refer to 51 32 170 REMOVING AND INSTALLING/REPLACING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT .
• Remove door brake for front door. Refer to 51 21 280 REMOVING AND INSTALLING OR REPLACING DOOR BRAKE ON LEFT OR RIGHT FRONT DOOR .

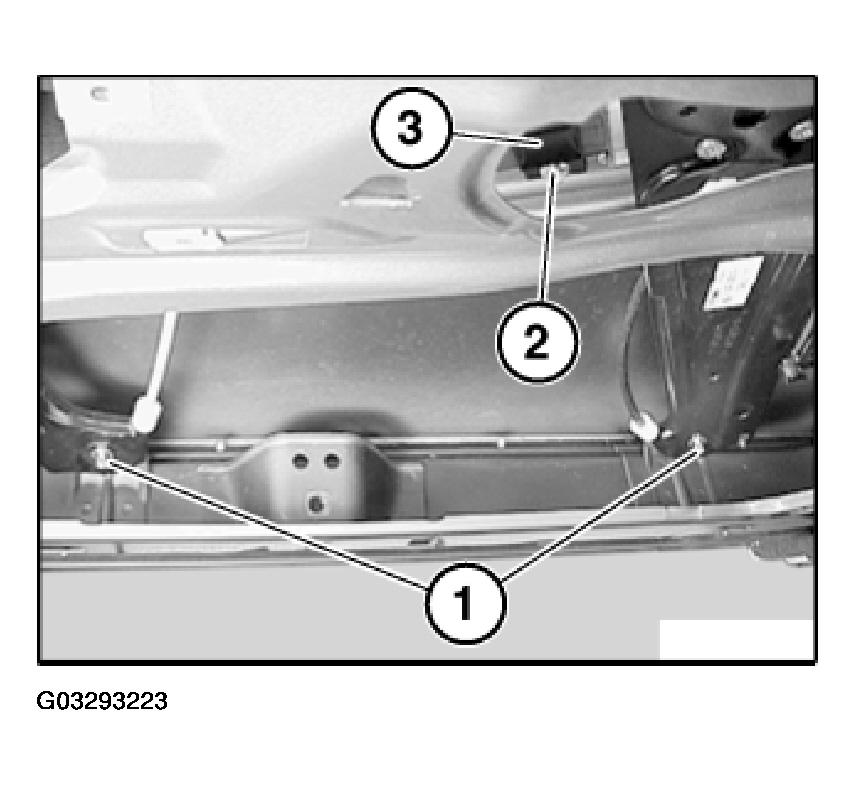

Slacken screws (1)

Slacken screw (2) and remove retaining clip (3).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Removing Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

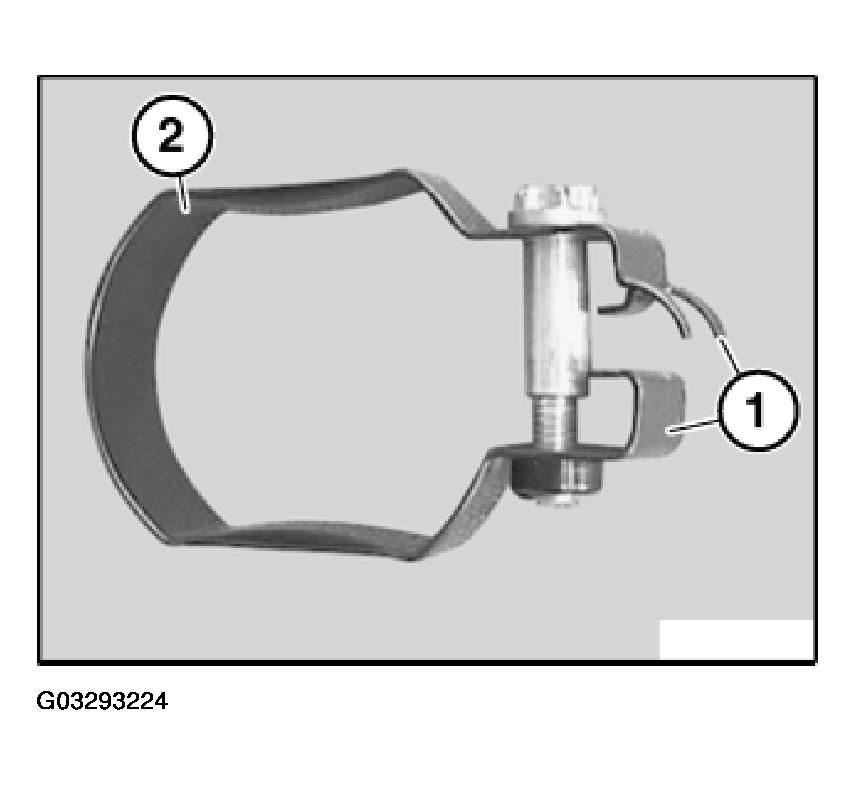

Make sure guide (1) is correctly seated when fitting retaining clip (2).

Fig 2: Identifying Guide And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

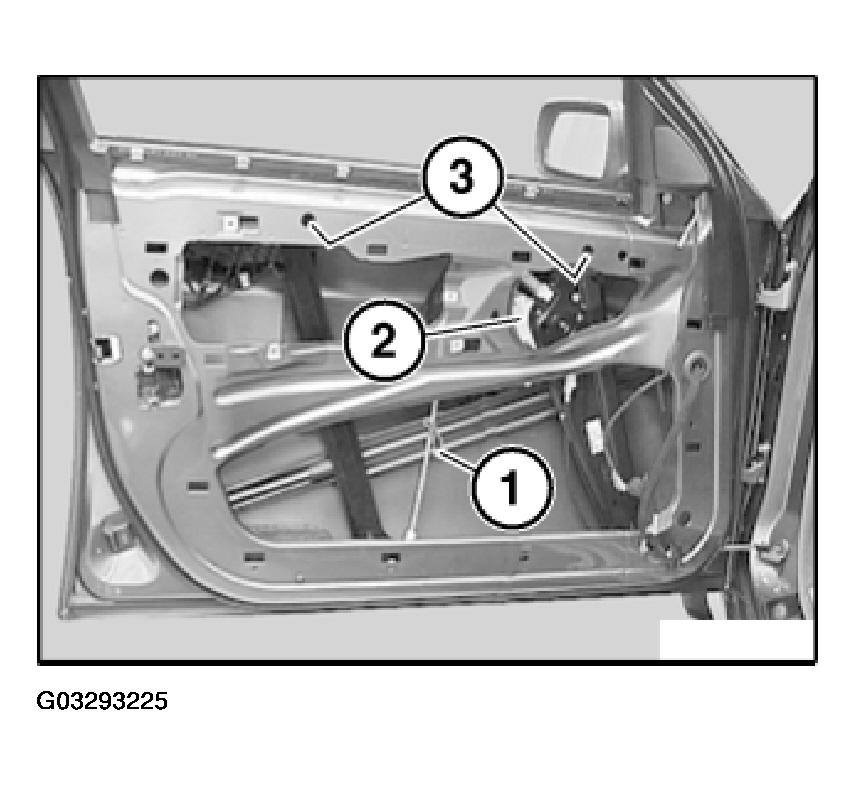

Release cable tie (1).

Disconnect plug connection (2) on drive.

Release screws on power window unit above bores (3).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Disconnecting Plug Connection On Drive

Courtesy of BMW OF NORTH AMERICA, INC.

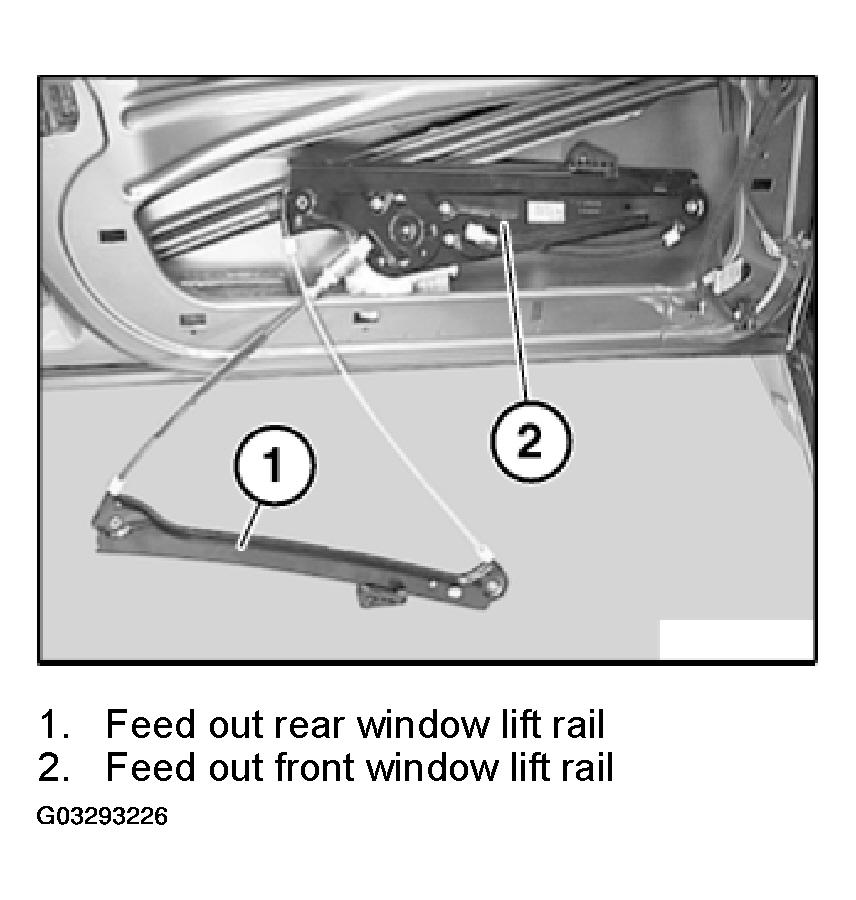

Removal of power window:

Fig 4: Removing Power Window

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

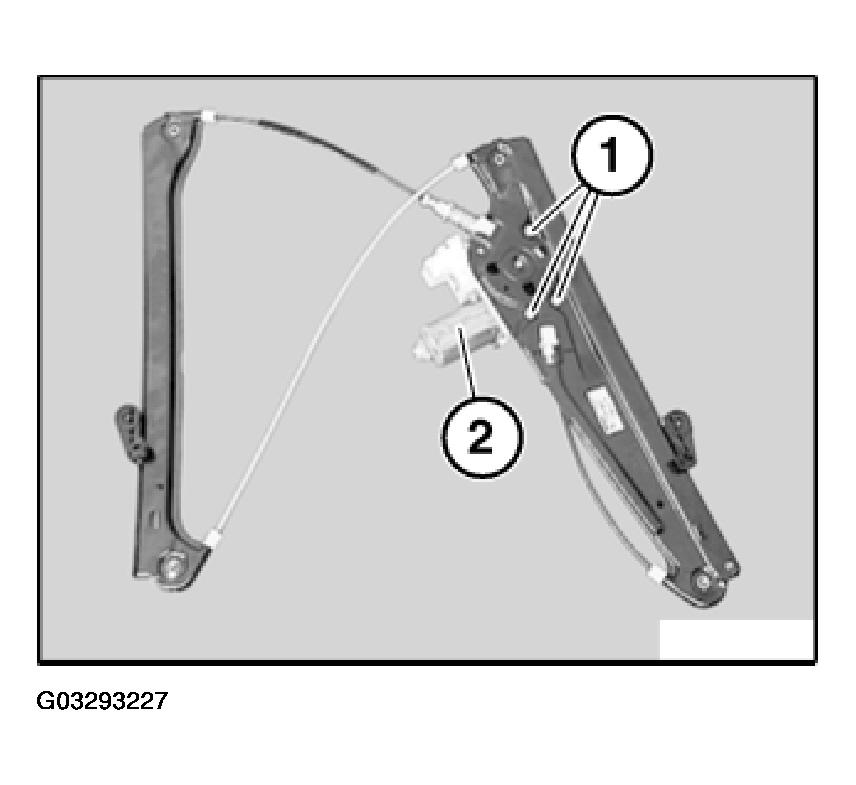

Release screws (1) and detach flat motor (2).

Tightening torque, refer to 51 33 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Initialize power window unit. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

Fig 5: Detaching Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.
