51 21... Releasing Door Retainer From Left Or Right Door Pillar

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

41 1 120

IMPORTANT: Cover ball head below door retainer (1) (damage to paintwork). Detach door retainer (1) with special tool 41 1 120 towards top from ball head.

NOTE: To remove door retainer or door seal, feed out seal (2) inwards.

If necessary, push piston rod into door retainer (risk of damage).

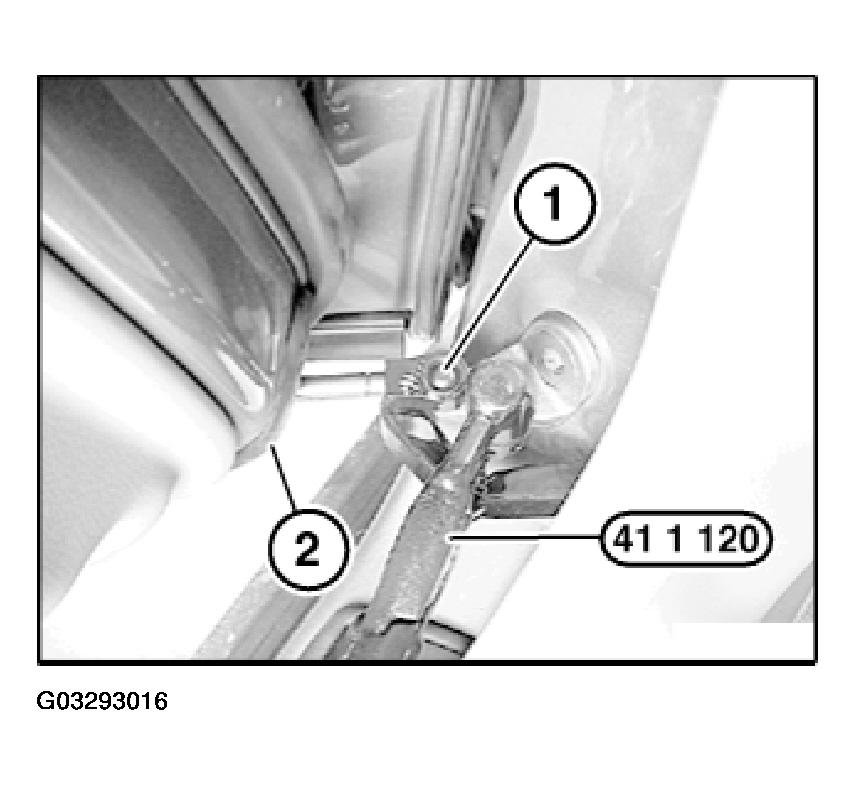

Fig 1: Detaching Door Retainer With Door Retainer Removal Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal must not be damaged.

Door outer skin must be situated between outer lip (1) and inner lip (2).

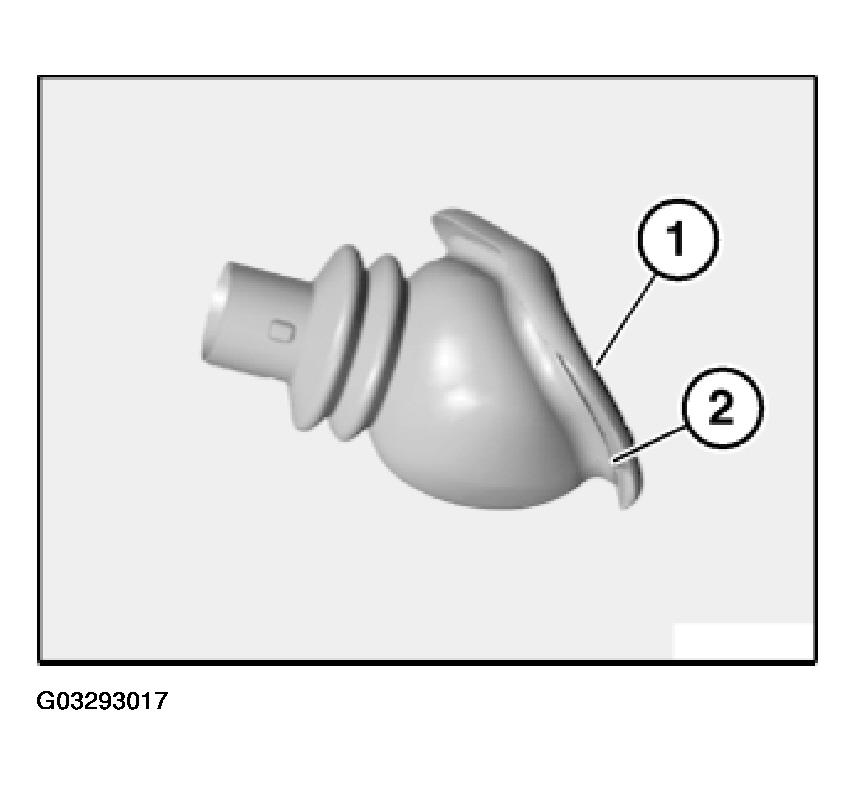

Fig 2: Identifying Outer Lip And Inner Lip

Courtesy of BMW OF NORTH AMERICA, INC.
