51 21 036 Replacing Function Carrier On Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

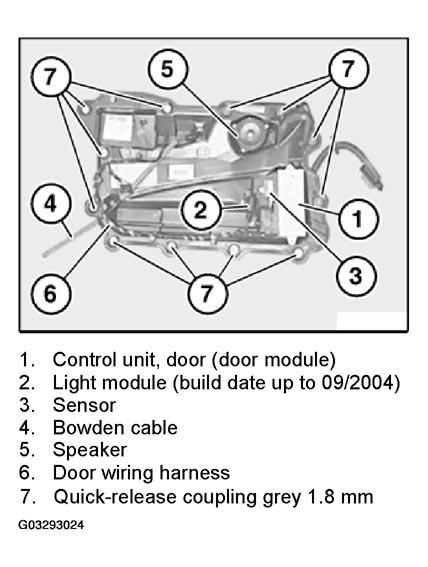

Overview Of Function Carrier Components:

Control unit, door (door module).
Light module (build date up to 09/2004).
Sensor.
Bowden cable.
Speaker.
Door wiring harness.
Quick-release coupling grey 1.8 mm.
Quick-release coupling white 0.8 mm.

Necessary Preliminary Tasks:

Remove front function carrier. Refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR .
Remove control unit. Refer to 61 35 220 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR LEFT OR RIGHT FRONT DOOR .
Remove sensor. Refer to 65 77 740 REMOVING AND INSTALLING (REPLACING) LEFT FRONT DOOR SENSOR .
Remove speaker. Refer to 65 13 070 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT FRONT) .
Remove wiring harness. Refer to 61 12 180 REPLACING WIRING HARNESS ON FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR .

Build date up to 09/2004:

Remove light module. Refer to 63 99 486 REPLACING LIGHT MODULE FOR FRONT LEFT OR RIGHT OUTSIDE DOOR HANDLE LIGHTING (UP TO 09/2004) .

Fig 1: Identifying Function Carrier Components
Courtesy of BMW OF NORTH AMERICA, INC.

Release clip.

Remove Bowden cable.

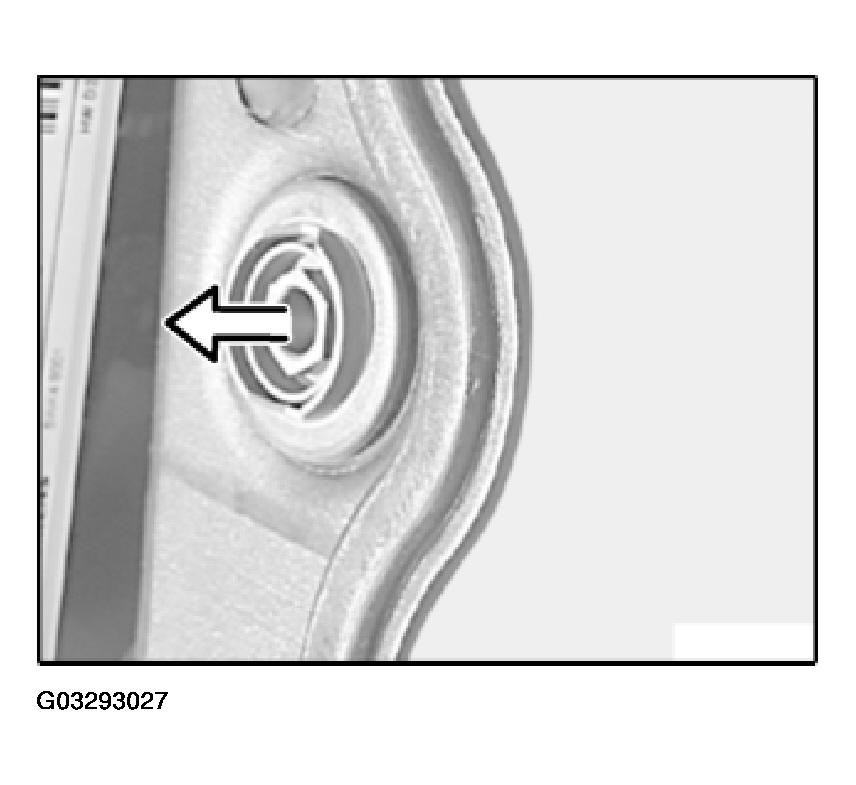

Fig 2: Releasing Clip On Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sensor seal.

Installation:

Insert pin (1) in outer bore.

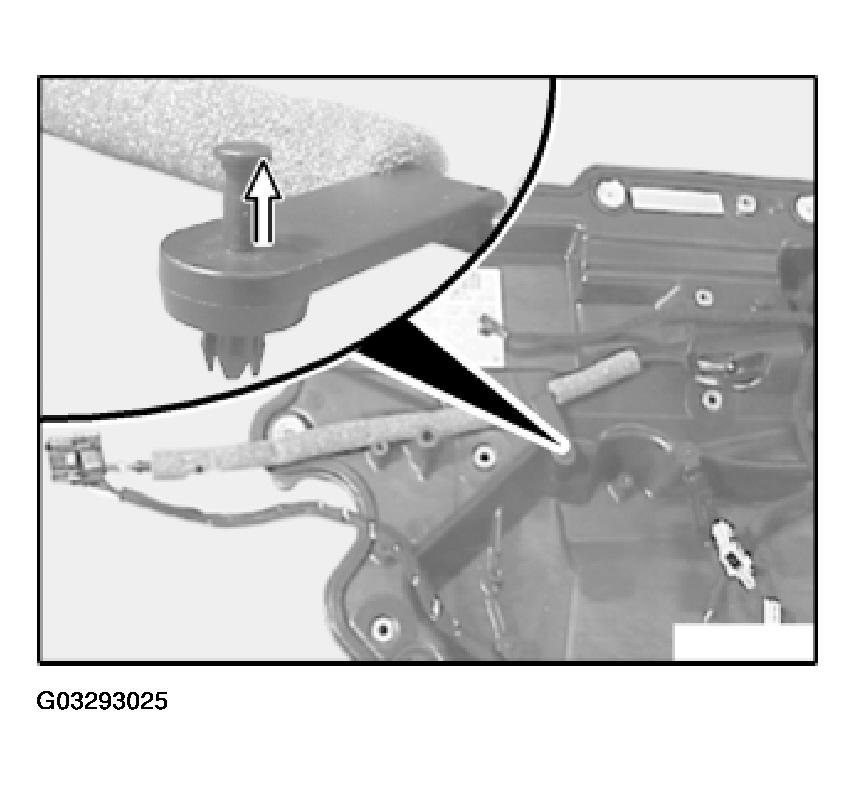

Fig 3: Inserting Pin In Outer Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Press out quick-release couplings.

Installation:

Make sure quick-release couplings are installed in correct position.

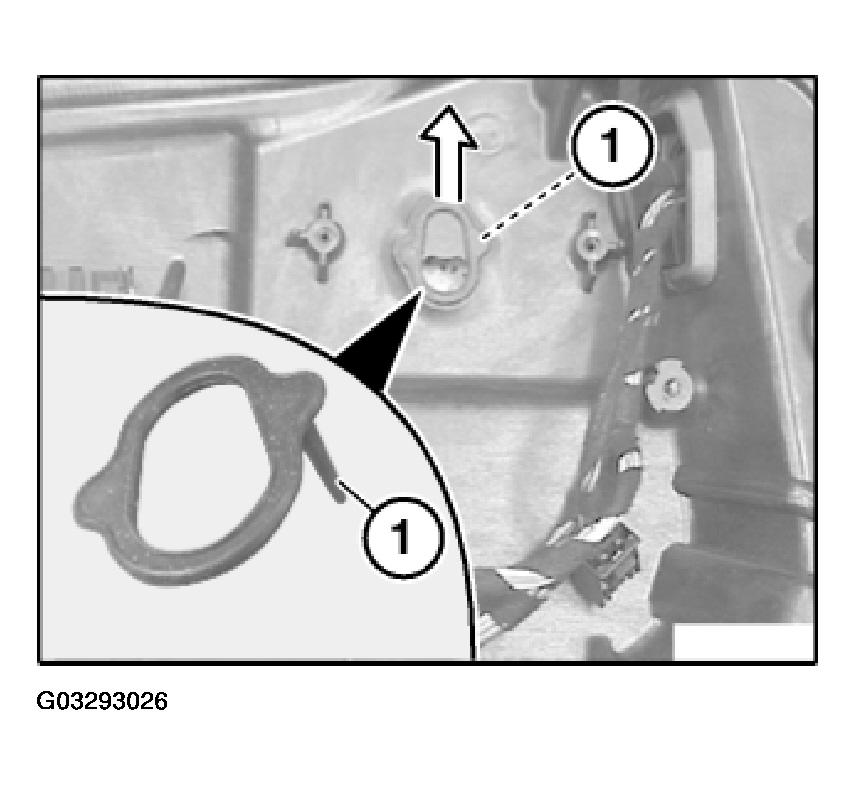

Fig 4: Removing Quick-Release Couplings

Courtesy of BMW OF NORTH AMERICA, INC.
