65 77 740 Removing And Installing (Replacing) Left Front Door Sensor
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note airbag safety instructions! Incorrect handling can activate airbag and cause injury. Refer to 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS
.
NOTE:
Follow instructions for handling optical fibres. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY .
- Remove control unit in left front door. Refer to 61 35 220 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR LEFT OR RIGHT FRONT DOOR .

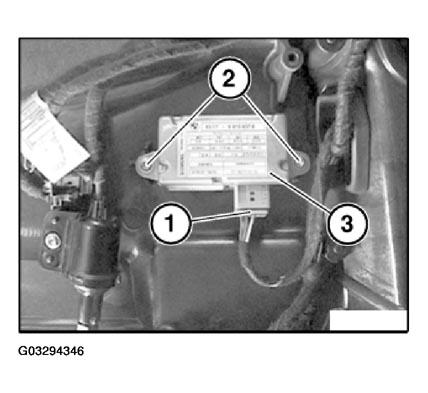

Disconnect plug connection (1).
Release screws (2) and remove front door sensor (3).
Installation:
Make sure sensor is mounted without play.
Tightening torque, refer to 65 77 7AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .
Installation:

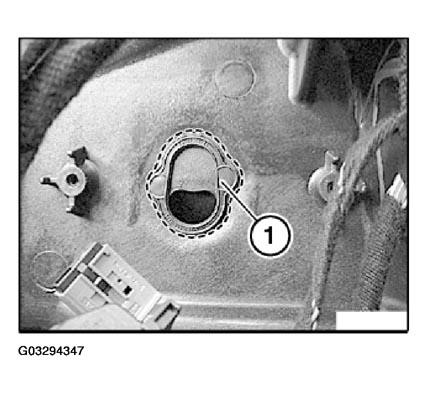

Check seal (1), replace if necessary.
Make sure seal (1) for front door sensor is correctly seated.
Replacement only:

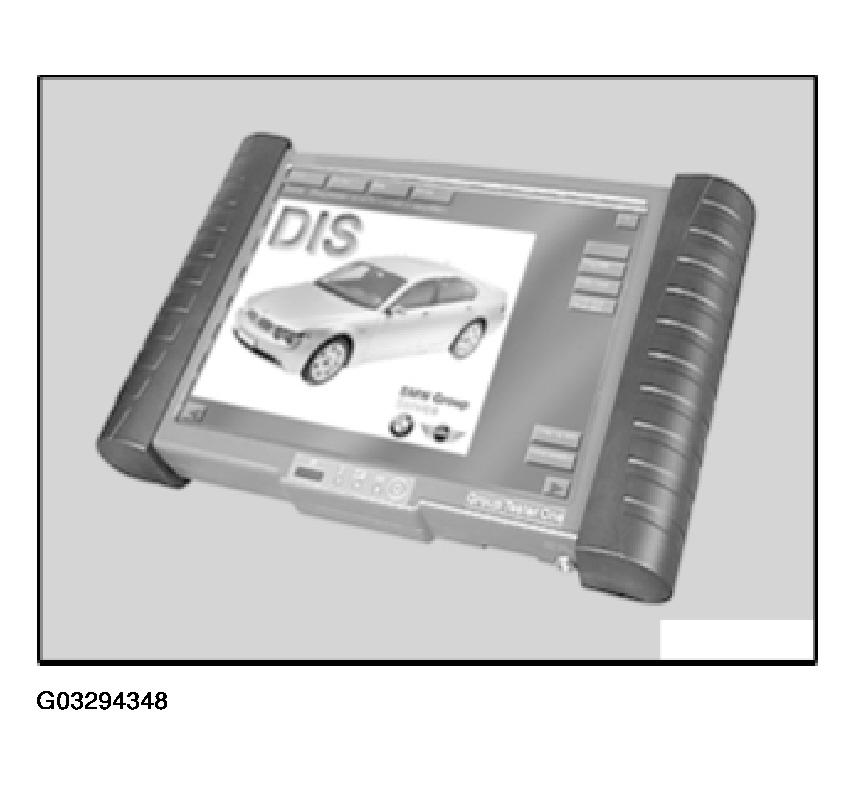

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .
