51 11 170 Replacing Body Molding For Left Or Right Bumper

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 321

Unclip body molding (1) with special tool 00 9 321.

Remove body molding (1) towards front.

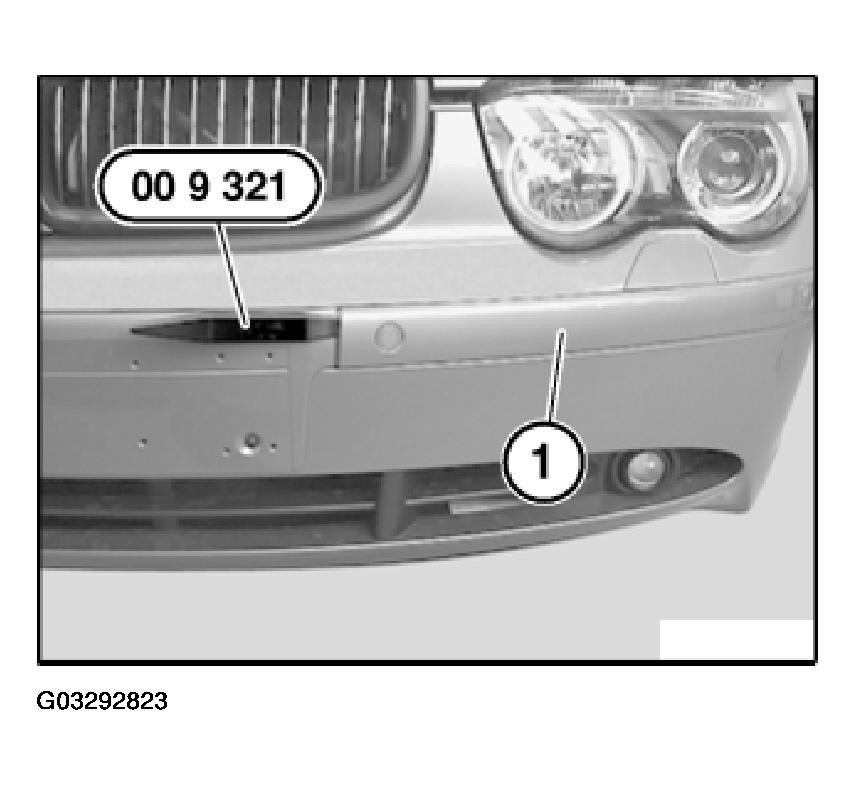

Fig 1: Unclipping Body Molding With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Version with PDC:

Remove ultrasonic transducer.

Remove holder (1).

Version with Chromeline:

Release catches (2) and remove chrome trim from body molding.

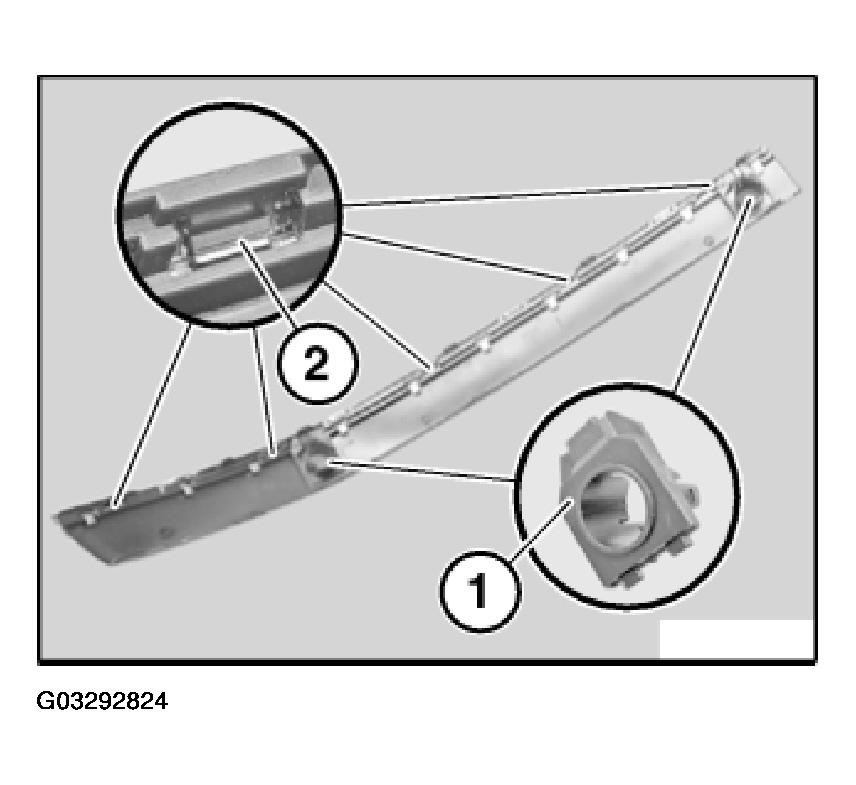

Fig 2: Removing Transducer Holder

Courtesy of BMW OF NORTH AMERICA, INC.
