51 11 050 Removing And Installing/Replacing Carrier For Front Bumper Trim

Necessary Preliminary Tasks:

• Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

  Build Date From 03/2005:

• Remove both lower brackets for headlight mounting.

Note Build Date From 03/2005:

Release screw (1).

Remove upper air duct section (2) on left/right.

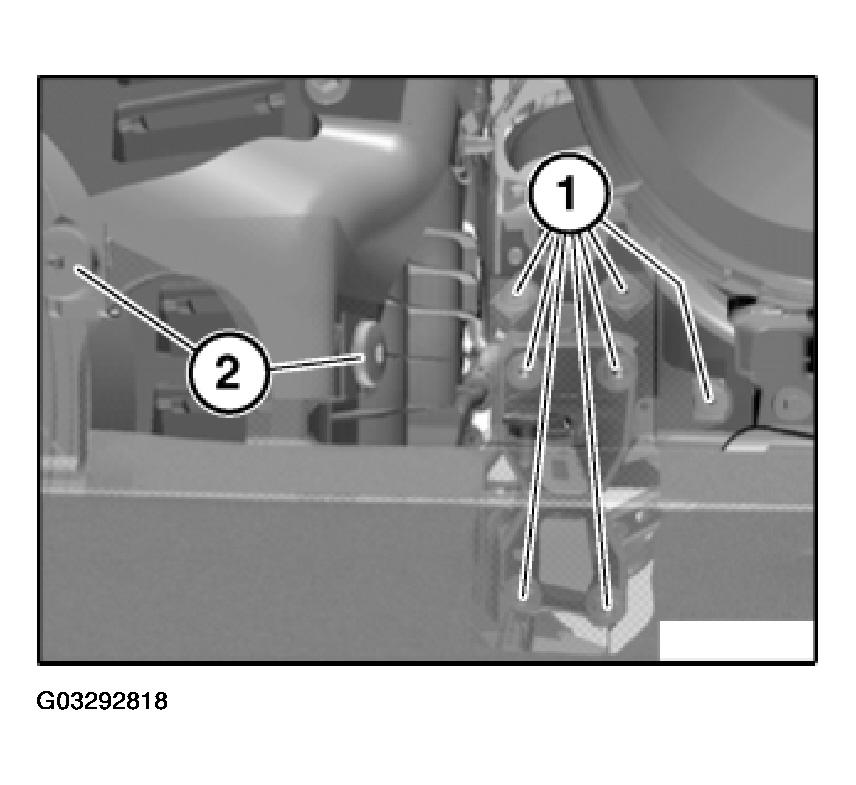

Fig 1: Locating Upper Air Duct Section

Courtesy of BMW OF NORTH AMERICA, INC.

Remove impact absorber (2) towards front.

Release screws (1) and remove bracket/rod.

Disconnect plug connection on fanfare horn on left/right Release screw (3) on left/right and remove fanfare horn.

Version With ACC:

Disconnect plug connection on ACC sensor.

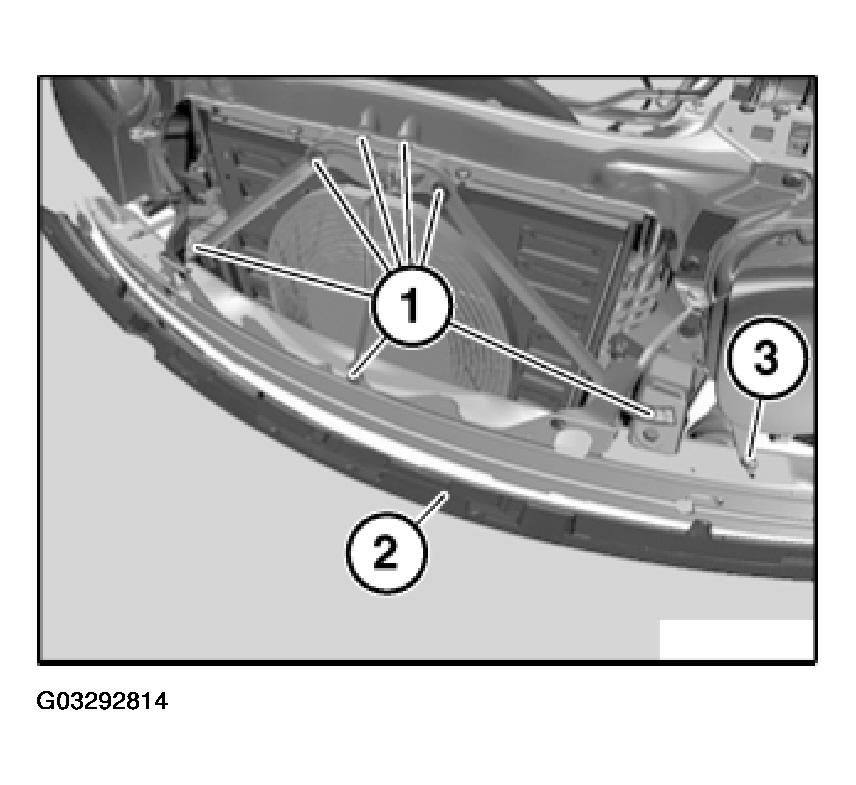

Fig 2: Identifying Impact Absorber Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1).

Remove cover (2) on left/right.

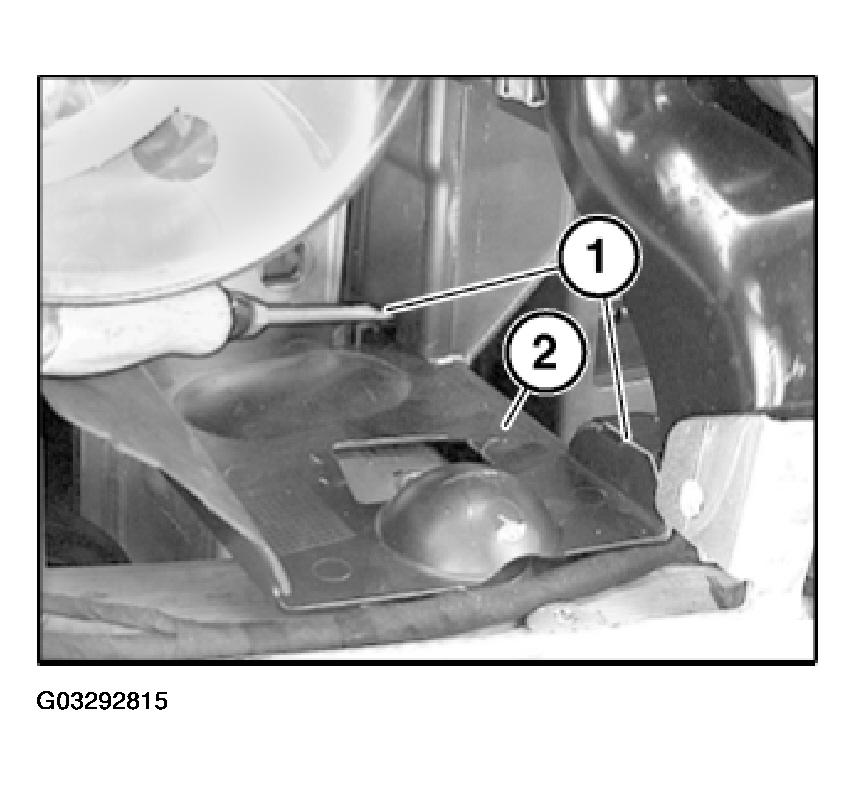

Fig 3: View Of Catches In Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Headlight Washer System:

Detach water hose (1) from high-pressure nozzle on right and seal off with rubber plug.

Feed water hose (1) out of carrier.

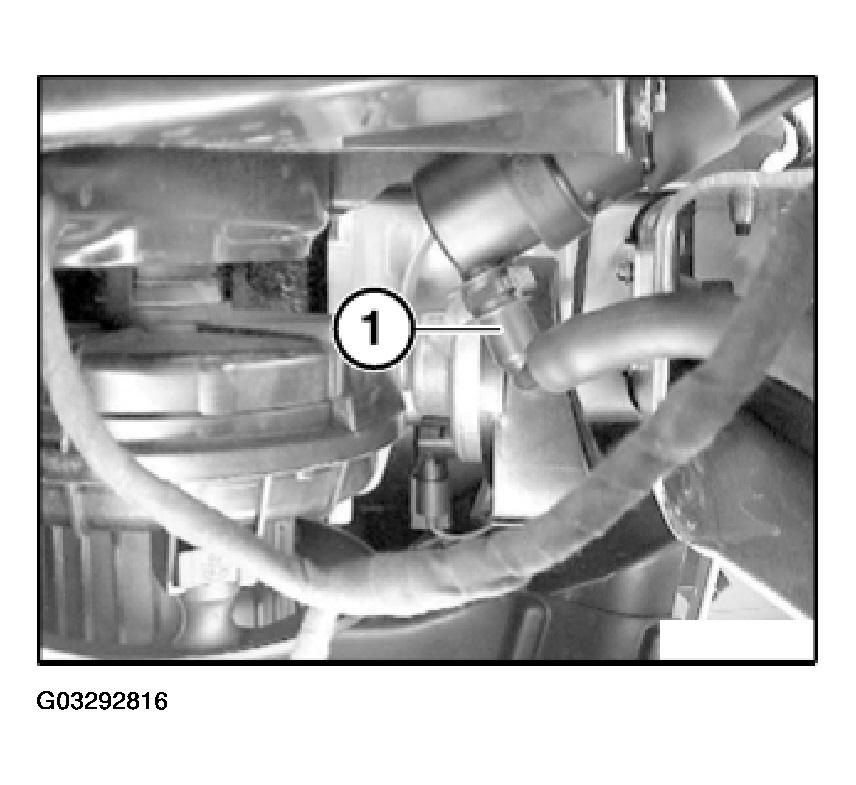

Fig 4: Locating Water Hose From High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Version With PDC:

Unclip wiring harness (1) from carrier.

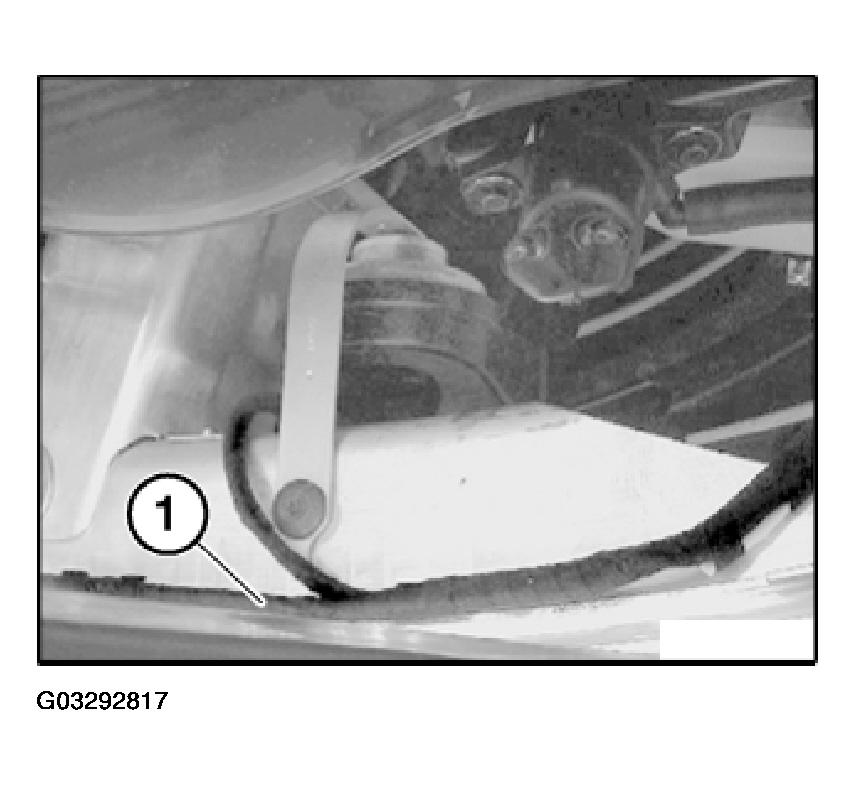

Fig 5: View Of Wiring Harness In Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2) on left/right.

Remove carrier towards front.

Tightening torque, refer to 51 11 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Replacement:

If necessary, remove bracket for ACC sensor or vibration damper.

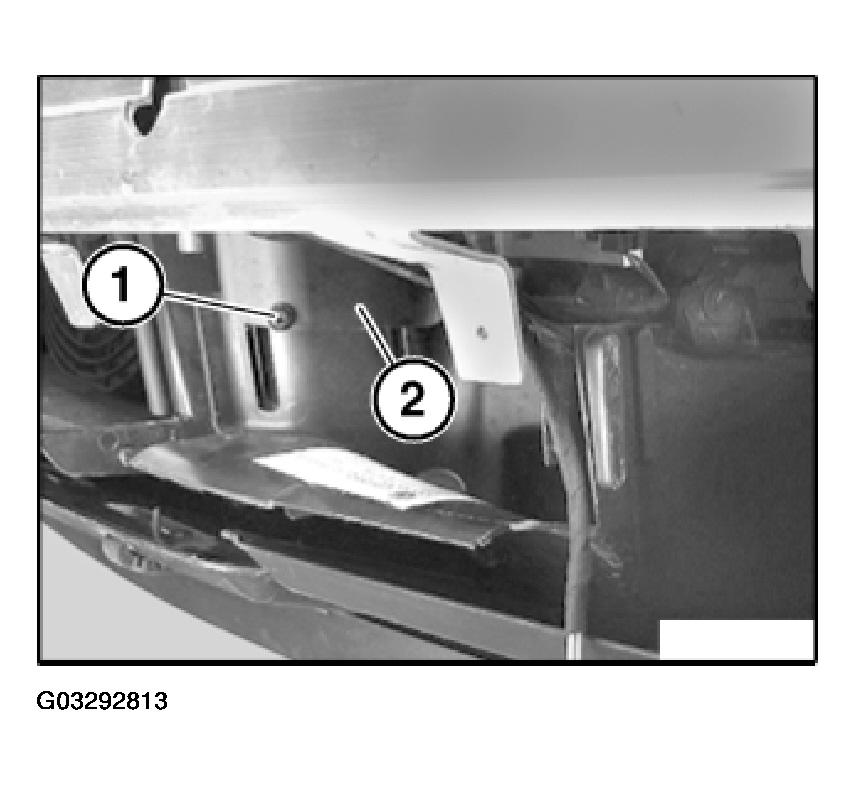

Fig 6: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
