51 31 242 Replacing Rubber Frame (Bottom) For Rear Window
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove both trim strips from roof frame. Refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT .
CAUTION:

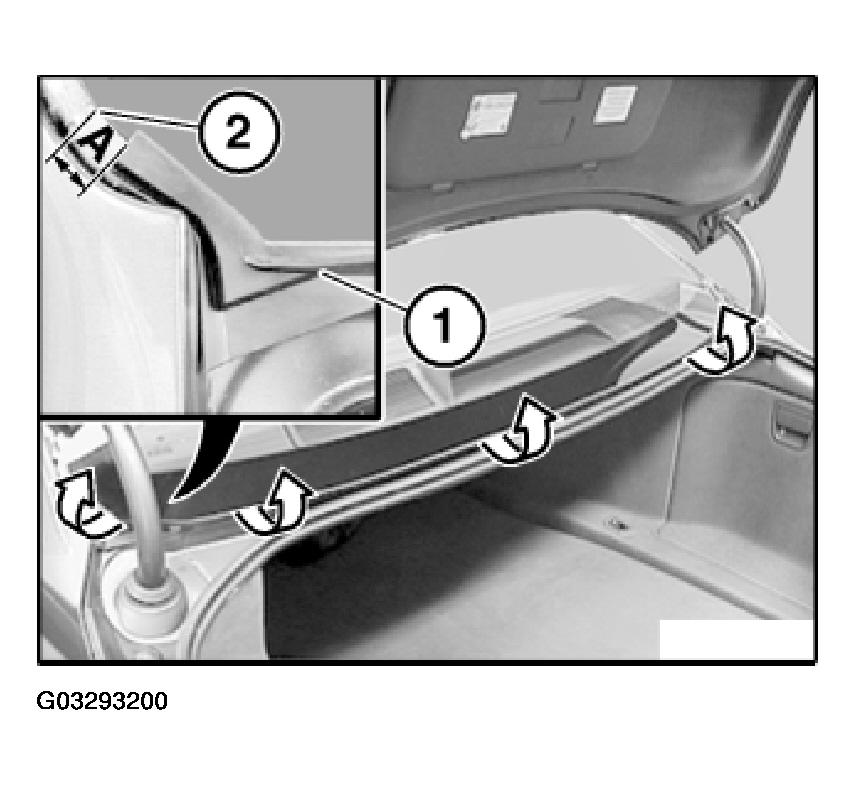

Rubber frame (1) is reinforced with an aluminum strip.
Pull off rubber frame (1) carefully in direction of arrow (rear window breakage).
NOTE:
Tear-off tab on left/right may be bonded to adhesive.
When rubber frame (1) is removed, tear-off lip on left/right may tear off and remain in vehicle.
Installation:
Gap (A) between rubber frame (1) and rear window corner (2) must be the same on left/right.
Installation:

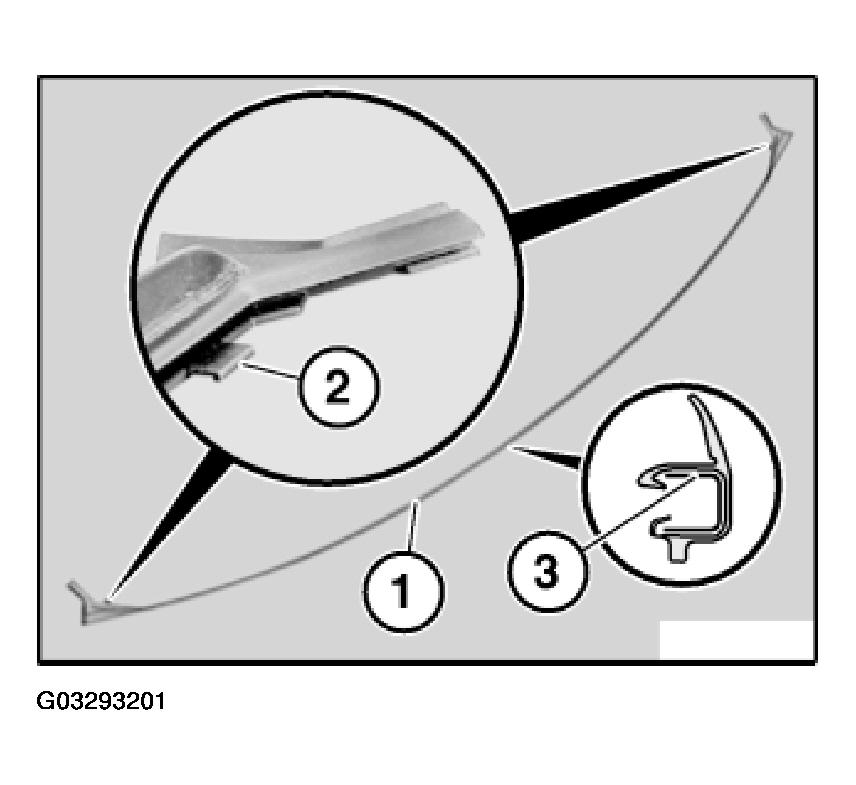

Replacement of rubber frame without rear window removal:
Detach tear-off tabs (2) from rubber frame (1).
If adhesive has managed to get onto bridge, this area must be cut out partially.
Replacement of rubber frame with removed or new rear window:
Fit rubber frame with tear-off tabs (2).
3) Aluminum strip.
