51 13 280 Removing And Installing Trim Strip On Roof Frame At Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work must be carried out with a second person assisting (risk of damage). Trim strip must not be bent and seals must rest correctly on windscreen (wind noises).

First lever out trim strip (1) at rear, unclip remainder and pull at front out of seal (3).

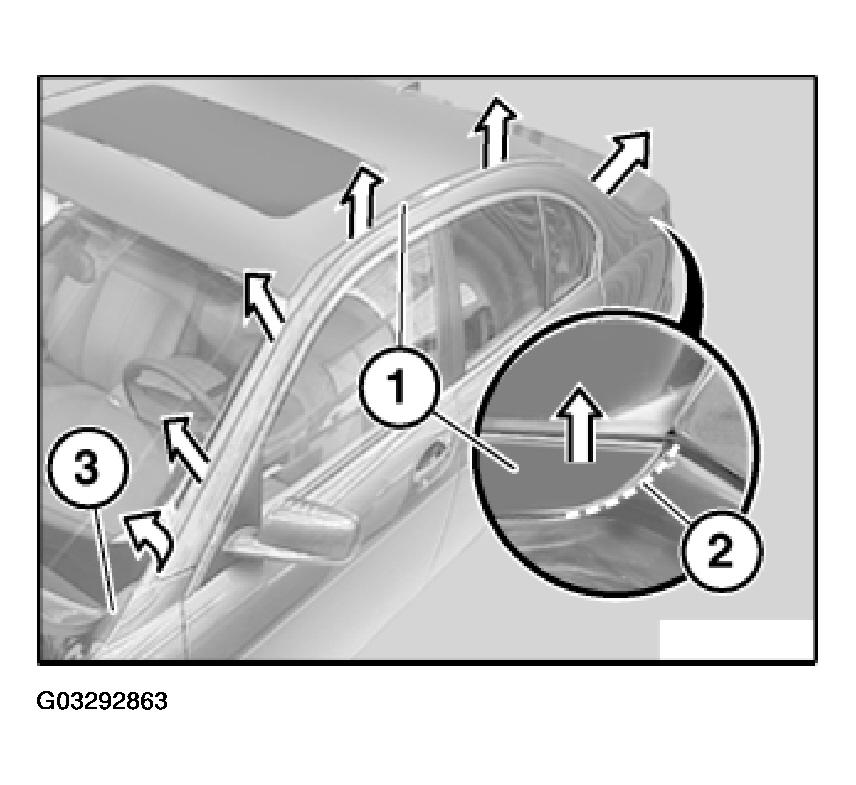

Fig 1: Removing Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First push trim strip (1) at front into seal (3), clip in at rear flush with edge (2) and then clip in remainder.

IMPORTANT: Replace clips (1 and 2) after each removal.

Installation:

Locks (3 and 4) of clips (1 and 2) must not be damaged.

NOTE: For E66, seven clips (2) are fitted.

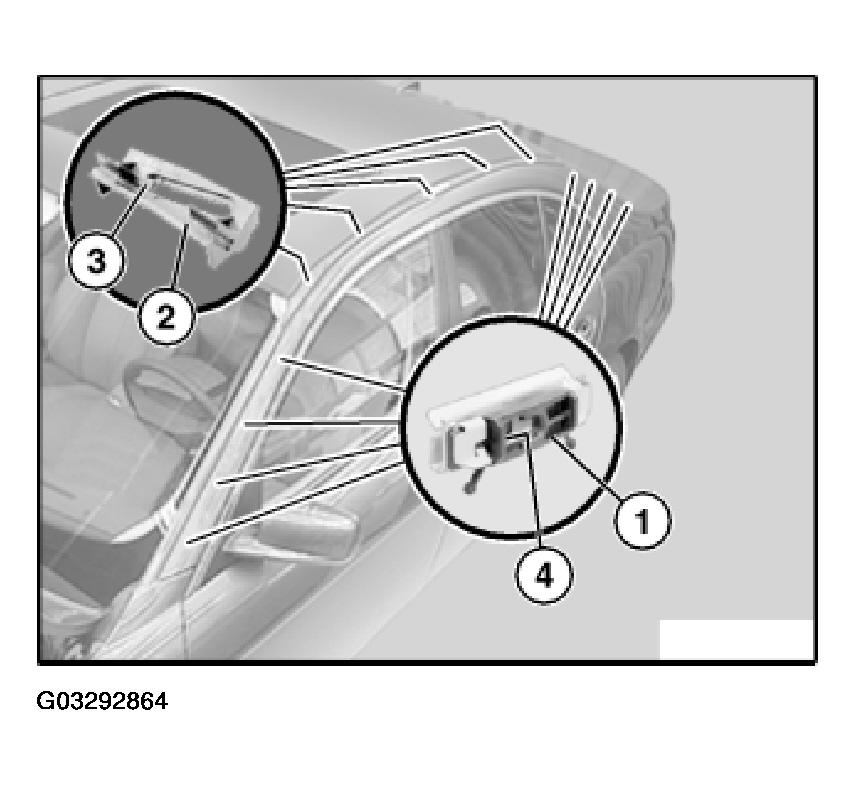

Fig 2: Identifying Locks Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clips (1 to 4) or seal (5) of trim strip (6), refer to REPLACING TRIM STRIP ON ROOF FRAME .

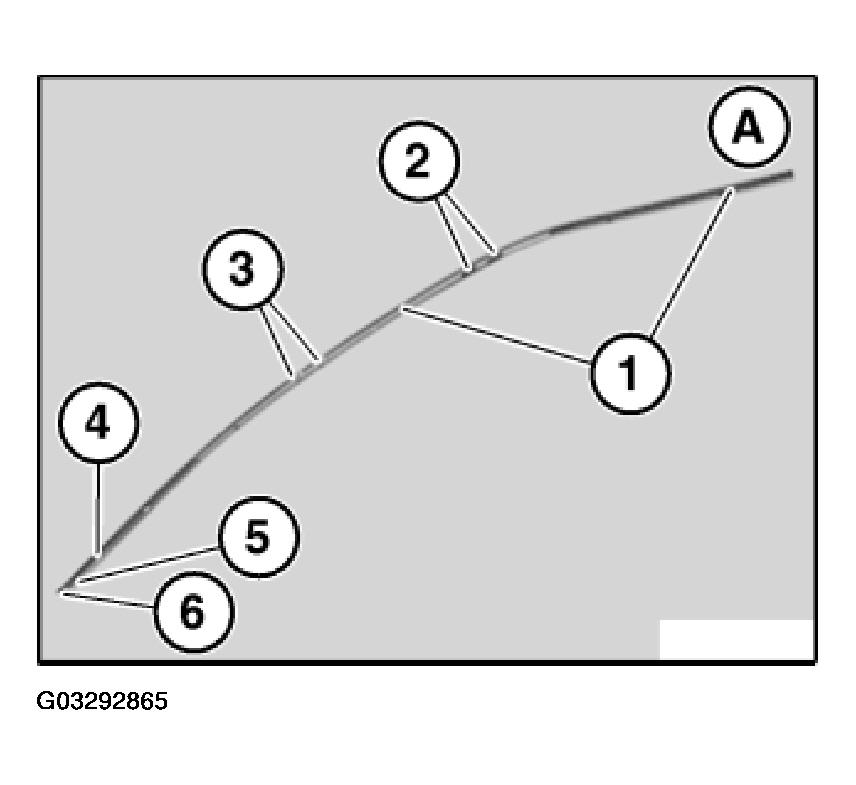

Fig 3: Locating Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.
