51 31 241 Replacing Rubber Frame (Top) For Rear Window
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove both trim strips from roof frame. Refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON ROOF FRAME AT LEFT OR RIGHT .
CAUTION:

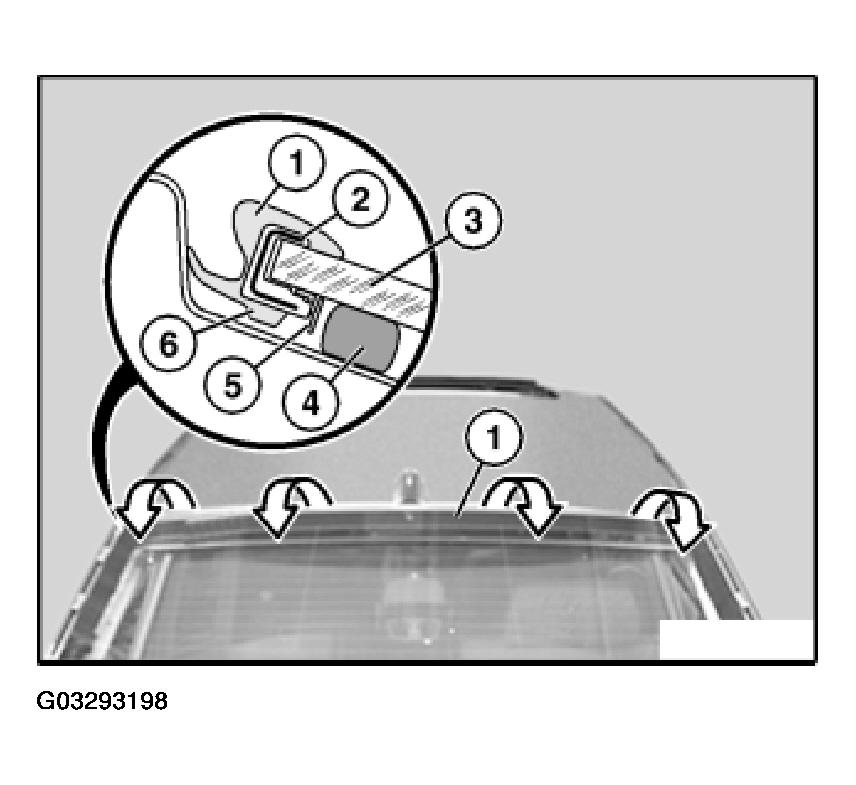

Rubber frame (1) has an aluminum section insert (2). Carefully unwind rubber frame (1) (rear window breakage).
NOTE:
Tear-off lip (5) can be bonded to adhesive (4). When rubber frame (1) is removed, tear-off lip (5) may tear off and remain in vehicle.
3) Rear window.
6) Bridge.
Installation:

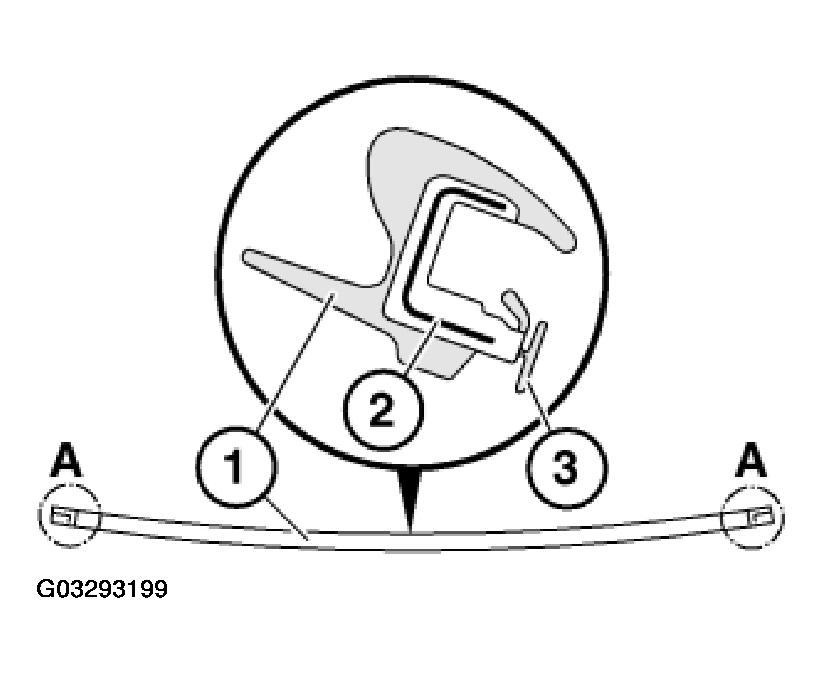

There is no tear-off lip (3) in area (A) on left/right.
Replacement Of Rubber Frame Without Rear Window Removal:
Detach tear-off lip (3) from rubber frame (1).
If adhesive above tear-off lip (3) has managed to get onto bridge, this area must be cut out partially.
To facilitate installation, moisten rubber frame (1) and body cutout with water.
Replacement Of Rubber Frame With Removed Or New Rear Window:
Fit rubber frame (1) with tear-off lip (3).
2) Aluminum strip.
