51 37 000 Removing And Installing/Replacing Complete Rear Left Or Right Power Window Unit

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door window glass. Refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW GLASS (WITHOUT ROLLER SUN BLIND) and 51 34 471 REPLACING REAR LEFT OR RIGHT DOOR WINDOW GLASS (WITH ROLLER SUN BLIND) .

Release screw (1).

Take off holder (2).

Release screws (4) and remove power window unit (3).

Tightening torque, refer to 51 35 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Removing Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Detach flat motor (3) from power window unit (2).

Tightening torque, refer to 51 35 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

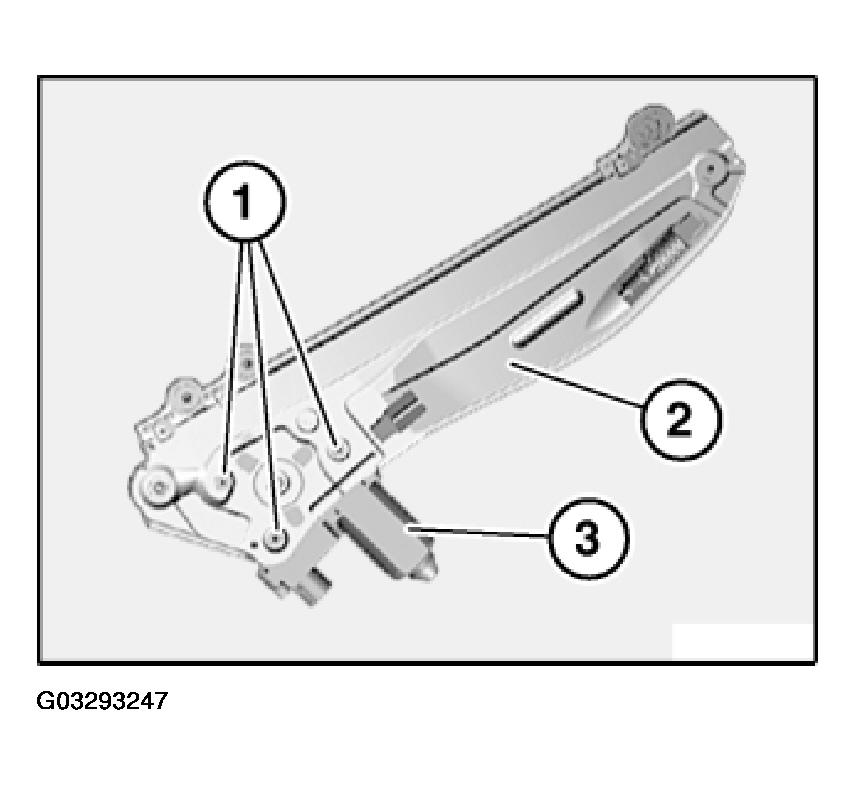

Fig 2: Detaching Flat Motor From Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
