51 34 471 Replacing Rear Left Or Right Door Window Glass (With Roller Sun Blind)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

First move door window glass into position.
Remove function carrier in rear door. Refer to 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR and 51 22 435 REMOVING AND INSTALLING FUNCTION CARRIER (WITH ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR .
Remove window cavity cover strip. refer to 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT .

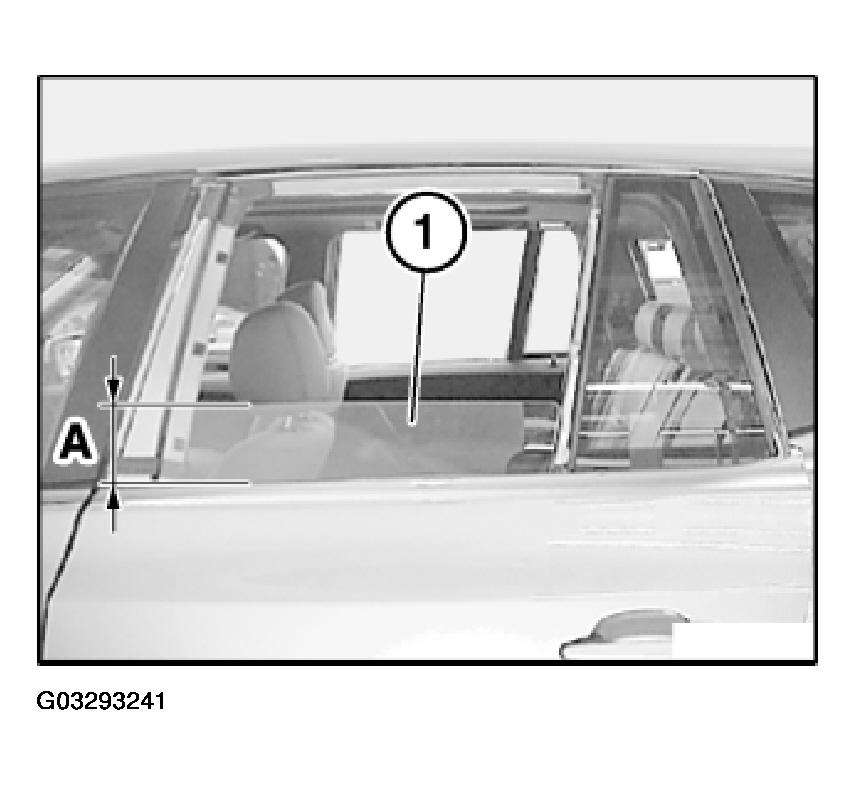

Open door window glass (1) up to measurement "A".

A = approx. 150 mm.

Fig 1: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

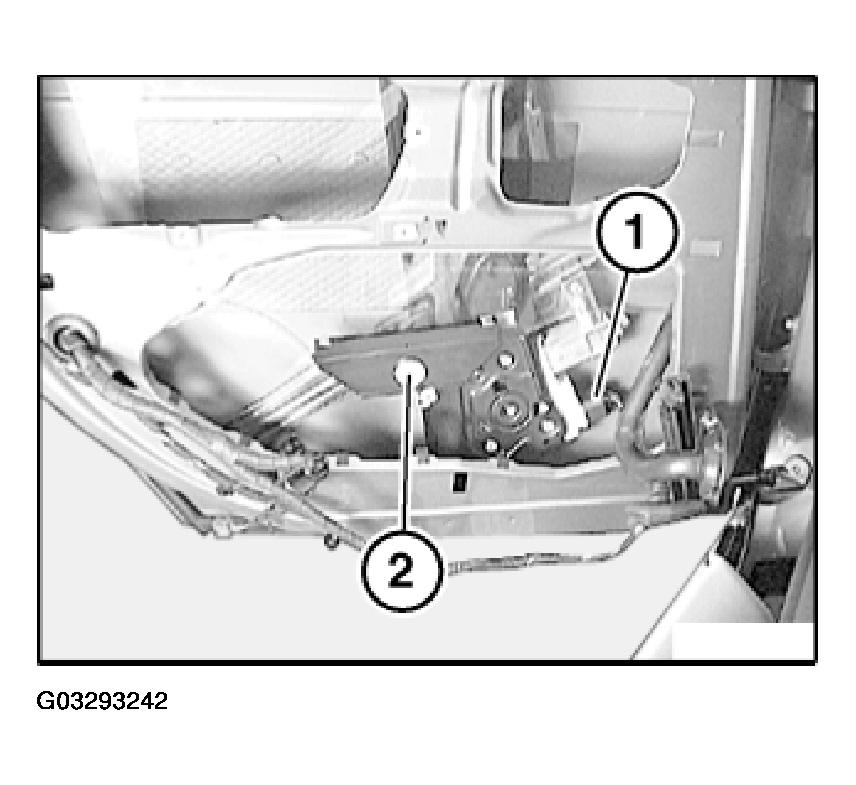

Disconnect plug (1) (risk of trapping).

Release screw (2).

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

If necessary, initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

Fig 2: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

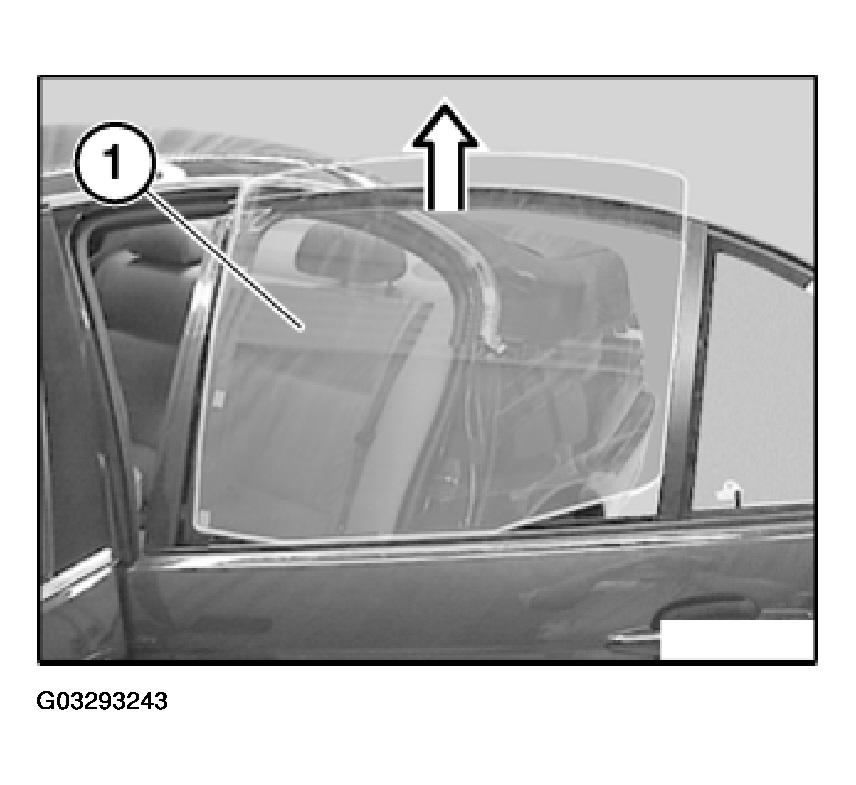

Remove door window glass (1) towards top.

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
