37 20 505 Removing And Installing/Replacing DYNAMIC DRIVE Holder/Valve Block
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system. Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
- Check pipe connections for leaks.
- If necessary, carry out initial operation for Dynamic Drive. Refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
Necessary Preliminary Tasks:
- Remove valve block. Refer to 37 20 001 REMOVING AND INSTALLING/REPLACING DYNAMIC DRIVE VALVE BLOCK .

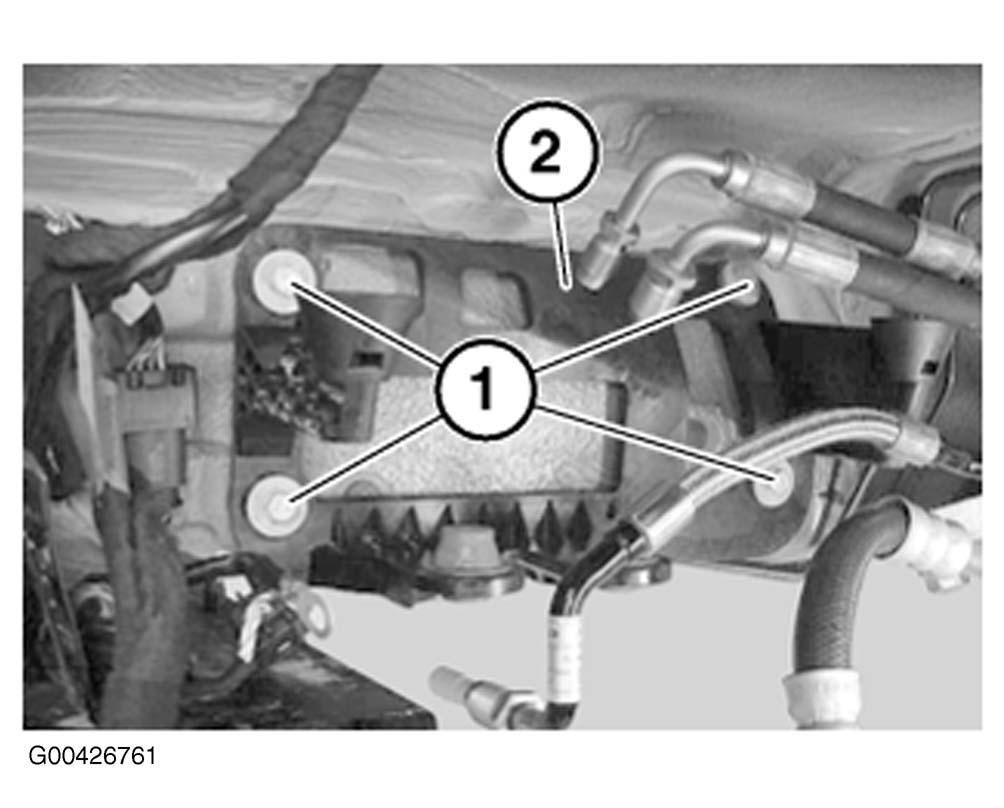

Release screws (1).
Tightening torque, (8 N.m.).
Take off holder (2).
