37 14 525 Replacing Control Unit For Air Supply Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
After installation:
- Replacement only: Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
- Carry out ride-height calibration. Refer to 37 12 012 CARRY OUT RIDE-HEIGHT-CALIBRATION .
Remove ignition key.
Remove battery cover. Refer to 61 21... REMOVING AND INSTALLING / REPLACING BATTERY COVER .

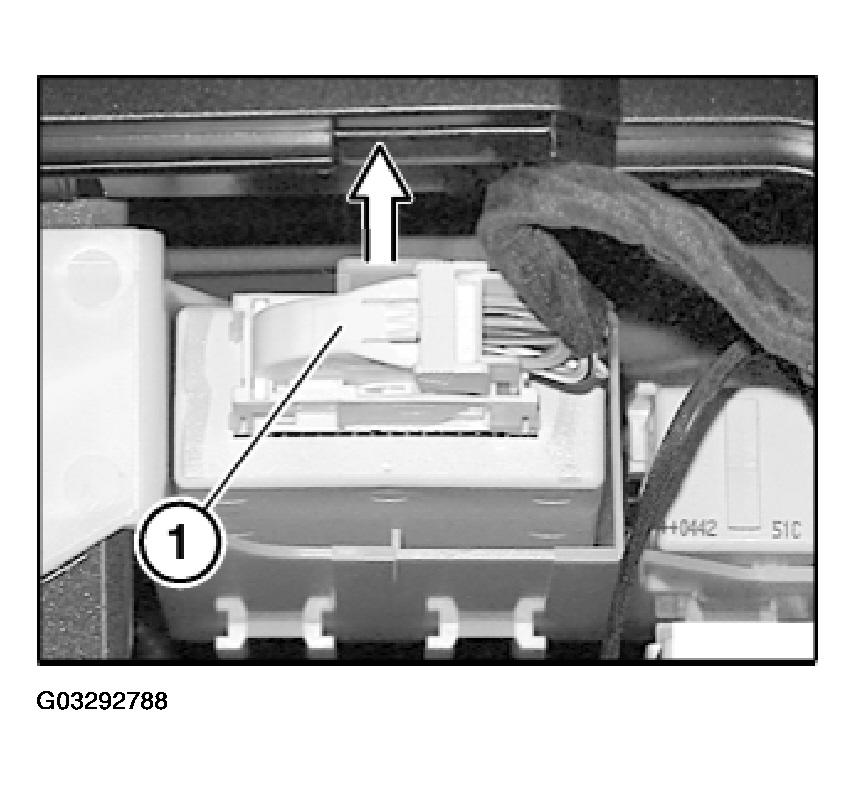

Unclip control unit and pull out in upwards direction.
Disconnect plug connection (1).
