37 12 012 Carry Out Ride-Height-Calibration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Ride-height-calibration must be carried out after the following work:
  • Replacement of control unit.
  • Replacement of wiring harness.
  • Replacement of ride-height sensor.

Connect BMW diagnosis system.

Switch on ignition.

Carry out ride-height calibration (menu item: "Service function"). Refer to 37 12 012 CARRY OUT RIDE-HEIGHT-CALIBRATION  .

Version with Run Flat Indicator: initialize Run Flat Indicator. Refer to 36 11 000 INITIALIZING TIRE DEFECT INDICATOR .

Version with Tire Pressure Control: initialize Tire Pressure Control.

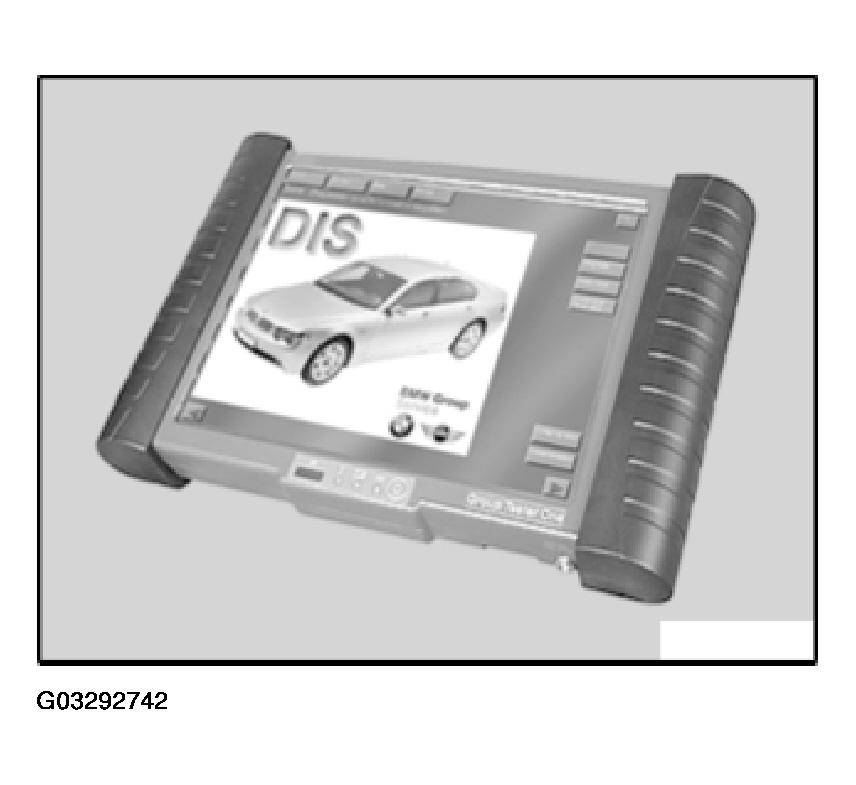

Fig 1: Identifying BMW Diagnosis System
G03292742Courtesy of BMW OF NORTH AMERICA, INC.
