37 14 515 Replacing Rear Left Or Right Ride-Height Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe safety instructions for raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)! Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Disconnect plug connection (1).

Release nut (2) and remove control rod from jointed rod (3).

Installation:

Replace self-locking nut.

Tightening torque, (9 N.m.).

Release screws (4) and remove ride-height sensor.

Tightening torque, (5 N.m.).

Installation:

Jointed rod (3) must point from ride-height sensor to rear wheel.

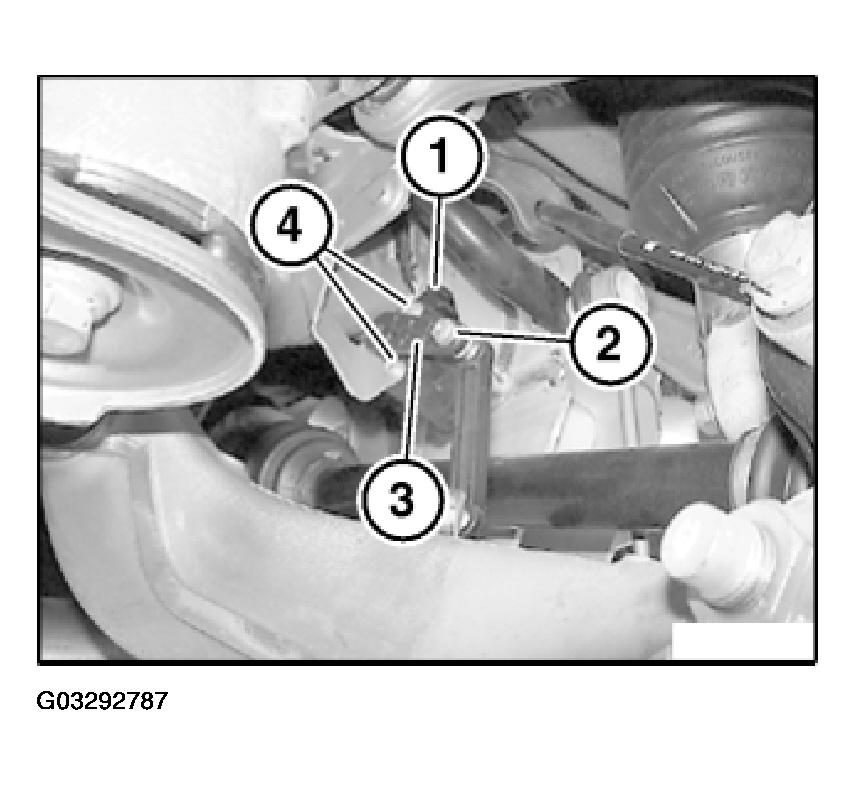

Fig 1: Removing Control Rod From Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation:

Version with ride-height control: Carry out ride-height calibration. Refer to 37 12 012 CARRY OUT RIDE-HEIGHT-CALIBRATION .
Check headlight adjustment, correct if necessary. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
