37 14 017 Removing And Installing/Replacing Front Mounted Acceleration Sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary Preliminary Tasks:
- Remove front wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove wheel arch cover at front. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

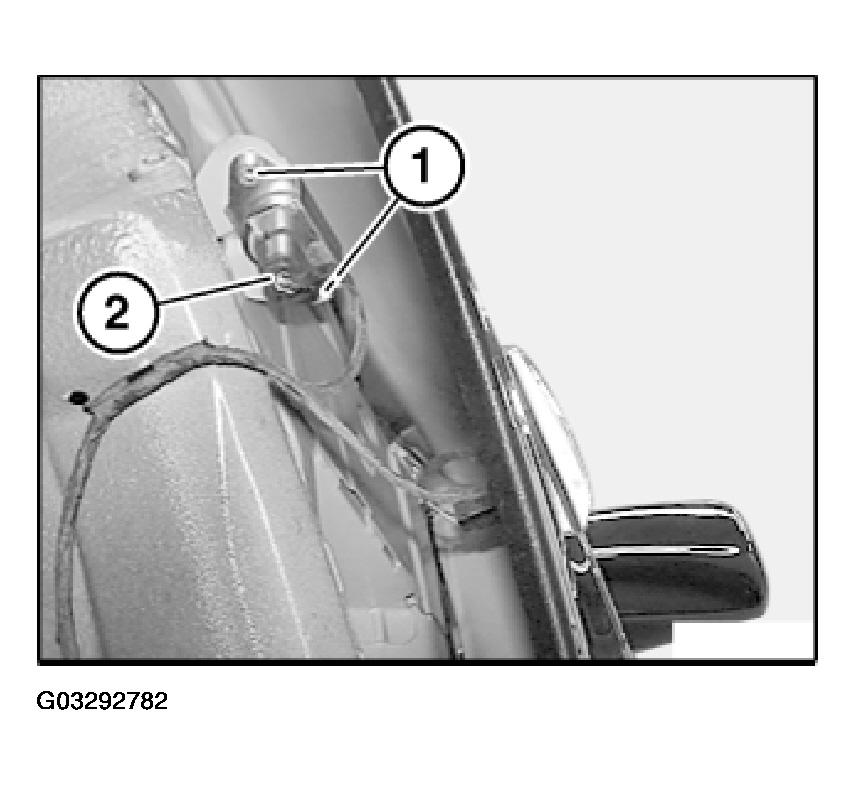

Release screws (1).
Disconnect plug connection (2).
Remove front mounted acceleration sensor.
