35 11 000 Removing And Installing Mounting Block For Pedals

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Check the function after installation.

Remove panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Release screw (1) on footwell air duct. First pull footwell air duct to left, then remove towards bottom front.

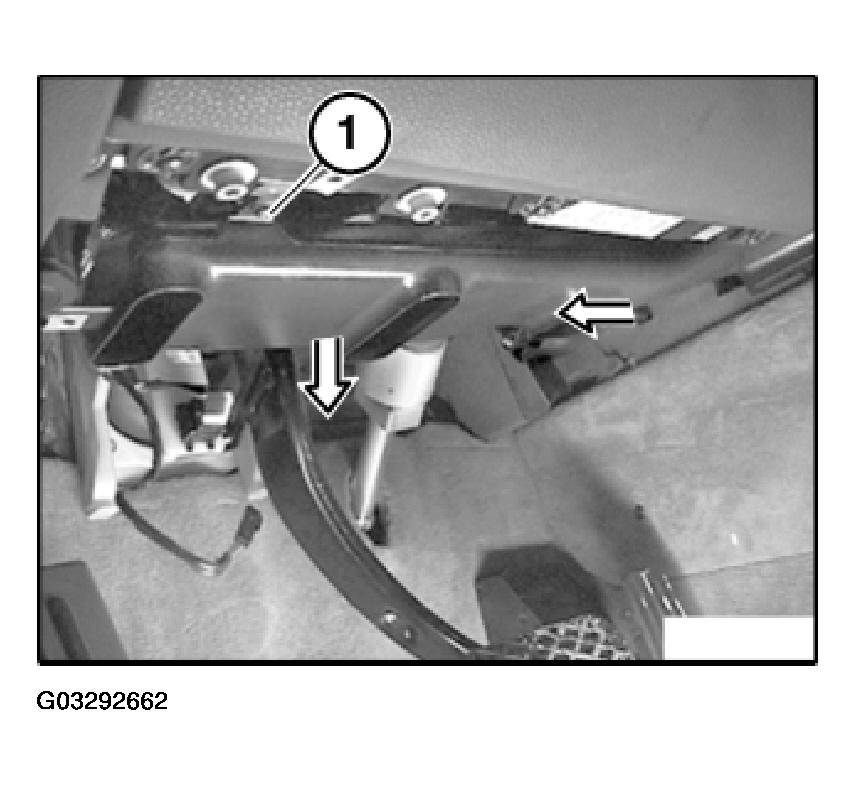

Fig 1: Locating Screw On Footwell Air Duct

G03292662

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip on brake pedal (1).

Withdraw pin.

Release nuts (2).

Installation:

Replace nuts (2).

Tightening torque, refer to 35 11 1AZ in PEDALS - TIGHTENING TORQUES .

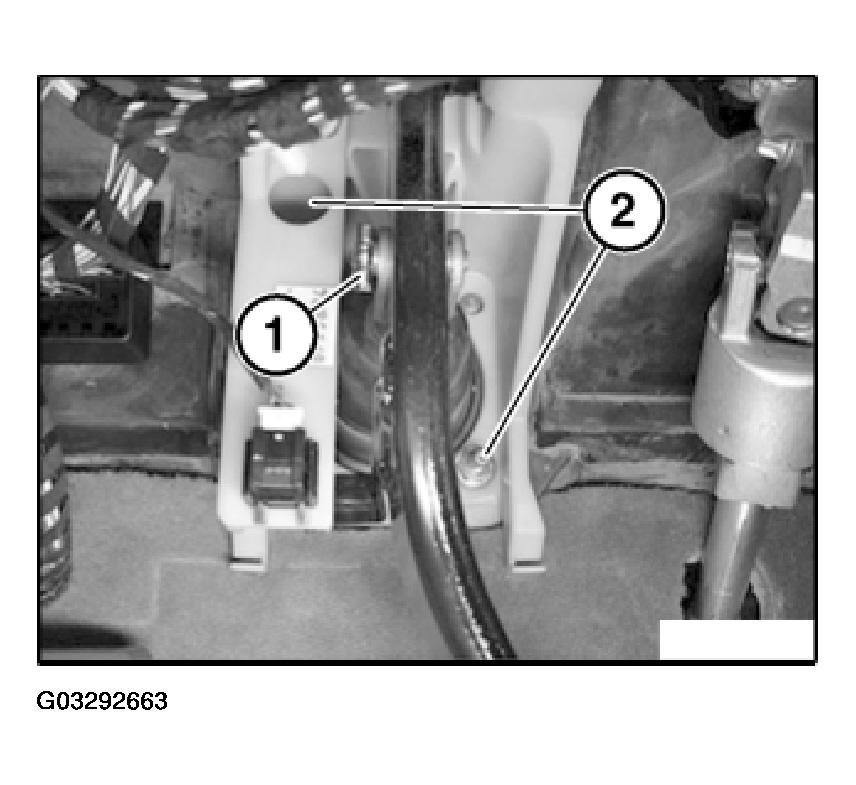

Fig 2: Locating Retaining Clip On Brake Pedal

G03292663

Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake light switch (1). Refer to 61 31 310 REPLACING BRAKE LIGHT SWITCH .

Release nut (2) for brake pedal.

Installation:

Replace nut (2).

Tightening torque, refer to 35 11 1AZ in PEDALS - TIGHTENING TORQUES .

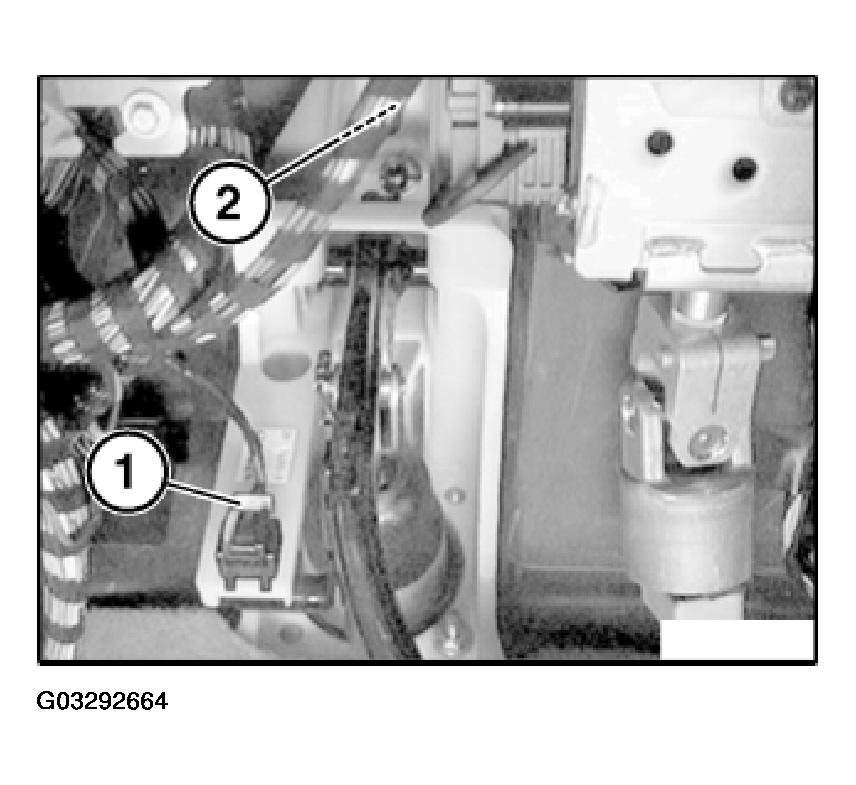

Fig 3: Removing Brake Light Switch

G03292664

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1).

Pull out light module with holder towards front.

Pull off connectors.

Remove light module.

Remove bearing bracket for pedal assembly.

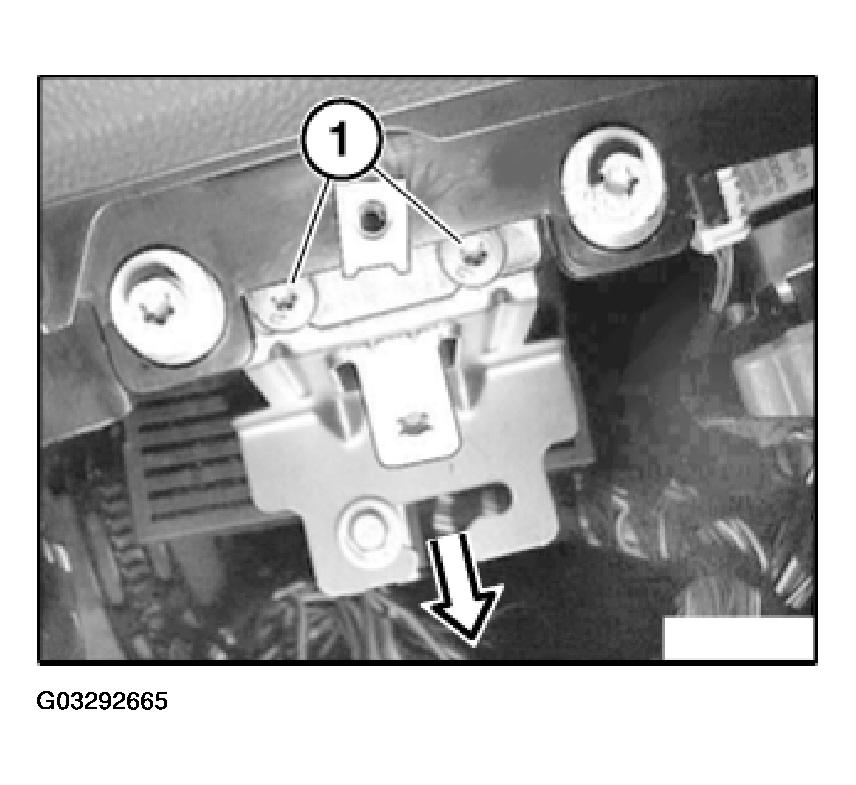

Fig 4: View Of Light Module With Holder

G03292665

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position guide lug (1) precisely during installation to prevent damage.

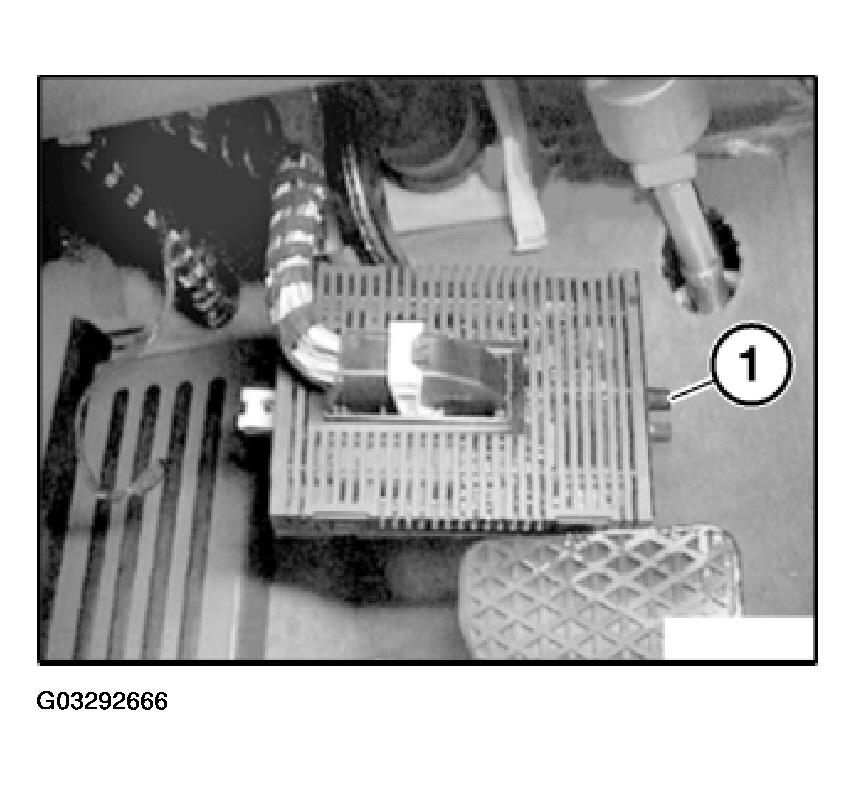

Fig 5: Aligning Guide Lug

G03292666

Courtesy of BMW OF NORTH AMERICA, INC.
