34 21 171 Removing And Installing/Replacing A Brake Carrier/Brake Guard At Rear
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove expander lock. Refer to 34 41 250 REMOVING AND INSTALLING/REPLACING EXPANDER LOCK FOR HANDBRAKE SHOES .
- Remove wheel hub.

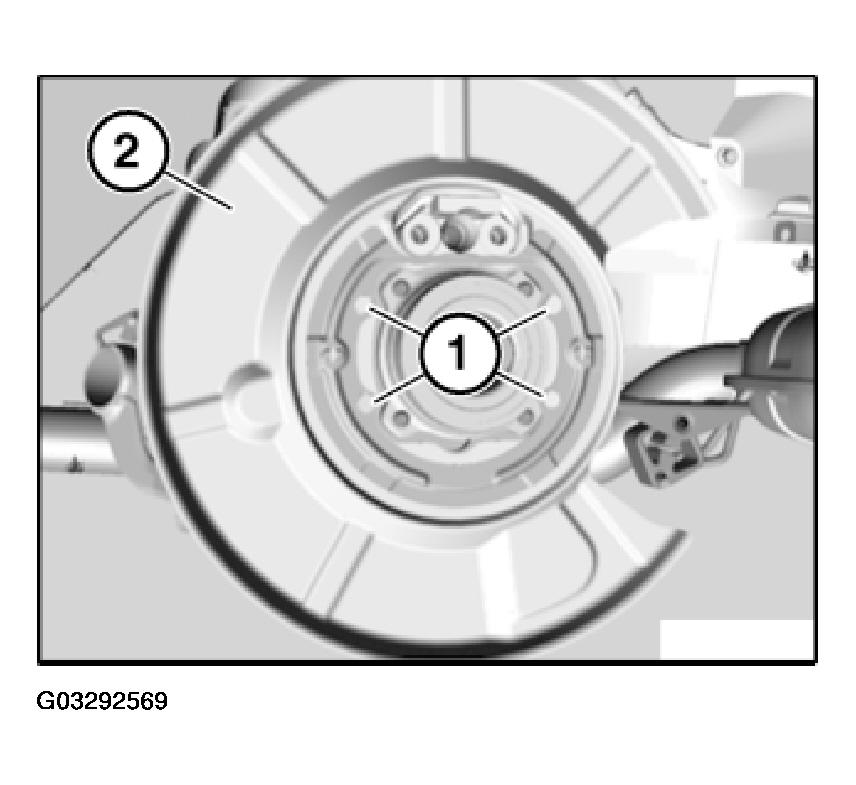

Release screws (1) and remove brake carrier (2).
Installation:
Tightening torque, refer to 34 21 6AZ in BRAKES - TIGHTENING TORQUES .
