34 41 250 Removing And Installing/Replacing Expander Lock For Handbrake Shoes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove handbrake shoes. Refer to 34 41 220 REMOVING AND INSTALLING OR REPLACING ALL HANDBRAKE PADS .

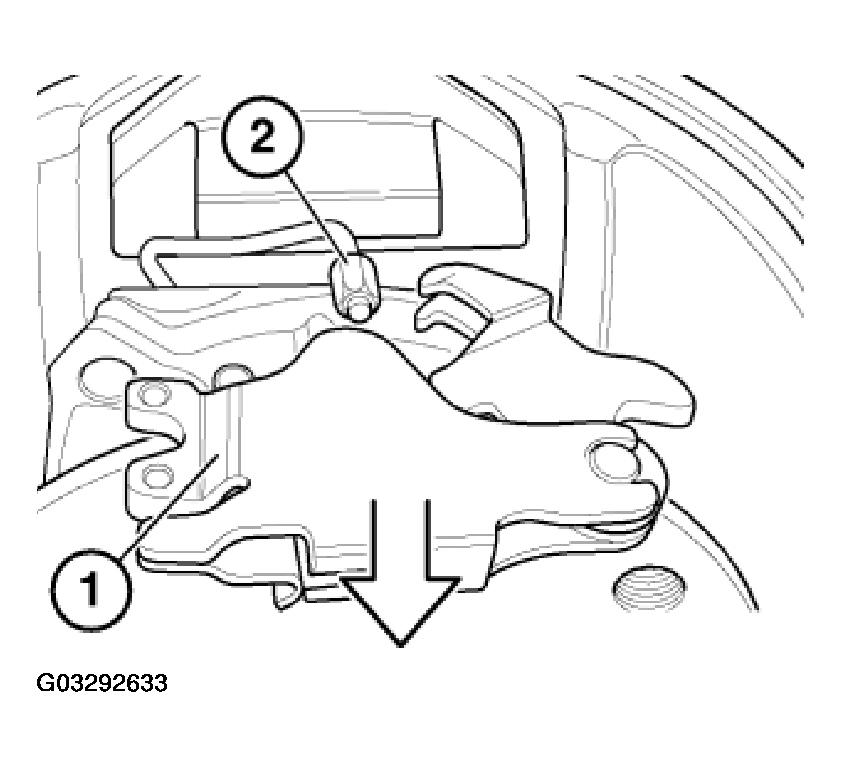

Pull expander lock (1) forwards, disconnect handbrake Bowden cable (2) and remove expander lock.
