34 41 220 Removing And Installing Or Replacing All Handbrake Pads

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see BRAKES - SPECIAL TOOLS .

Special Tools Required:

34 4 000

Necessary Preliminary Tasks:

Remove rear brake discs. Refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS .

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

After completing tasks, adjust parking brake. Refer to 34 41 006 ADJUSTING PARKING BRAKE .

Disconnect return springs with brake spring pliers.

Installation:

Check recoil springs and replace if necessary.

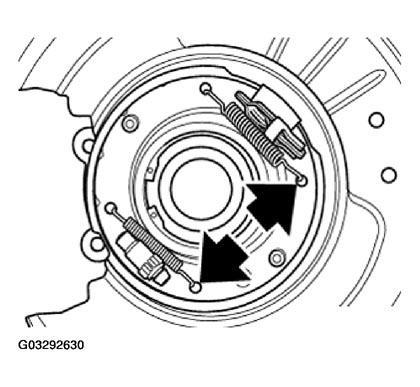

Fig 1: Locating Return Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Twist clamping pins with special tool 34 4 000 through 90° and disconnect.

Remove brake shoes.

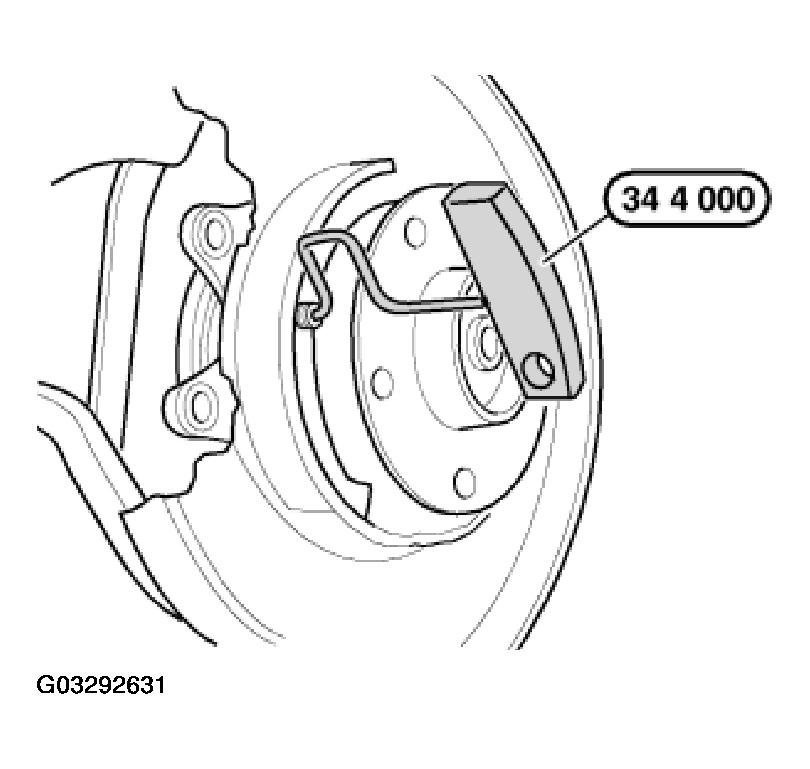

Fig 2: View Of Special Tool 34 4 000

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Figure illustrates right side: left side is mirror image of this. Refer to Fig 3.

Installation:

Note installation position of adjusting screws (1) and (2).

Coat threads of bushing (1) and screw (2) with grease, Refer to OPERATING FLUIDS - BRAKES .

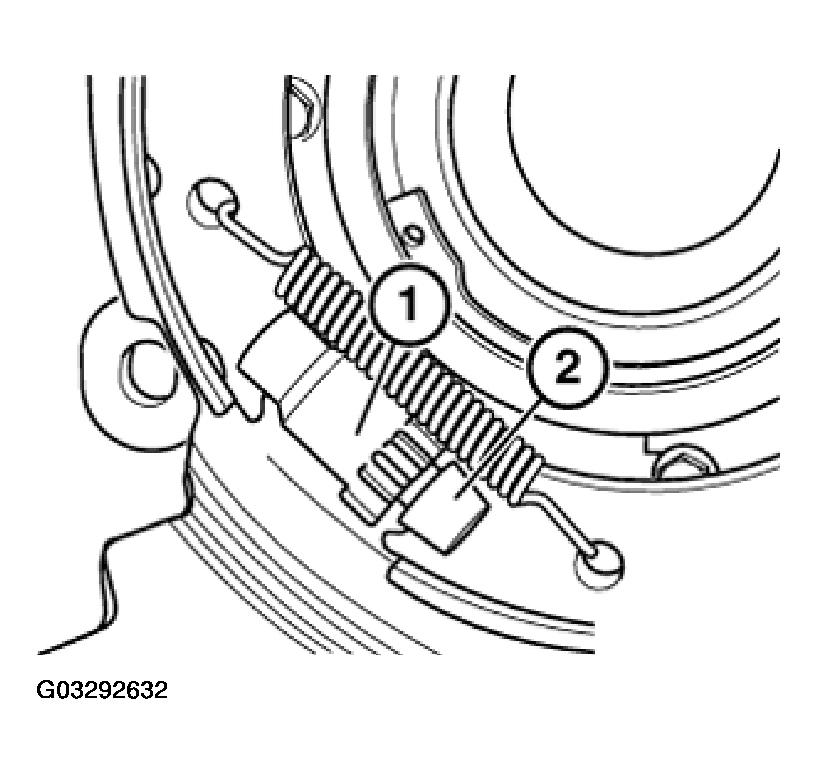

Fig 3: Identifying Threads Of Bushing

Courtesy of BMW OF NORTH AMERICA, INC.
