32 41 061 Replacing Power Steering Vane Pump
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of poisoning
if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations
Necessary Preliminary Tasks:
- Check function of vane pump. Refer to 32 41 009 CHECKING FUNCTION OF POWER STEERING VANE PUMP .
- Remove vane pump. Refer to 32 41 037 REMOVING AND INSTALLING POWER STEERING PUMP FOR POWER STEERING GEAR WITH DYNAMIC DRIVE (N73) .

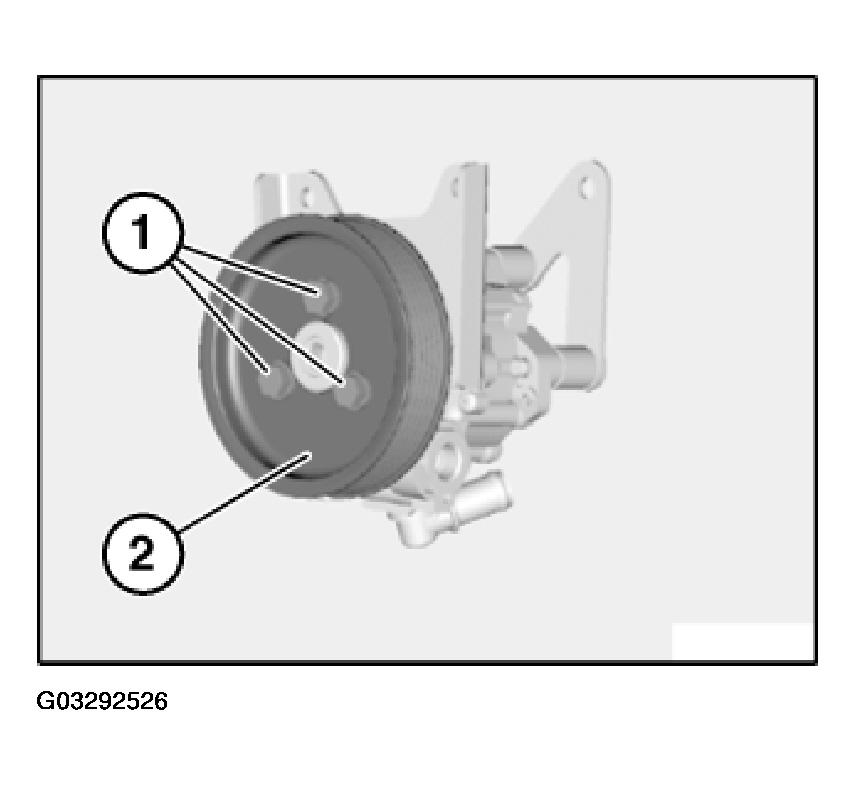

Release screws (1) and remove belt pulley (2).
Tightening torque, refer to 32 41 14AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
Remove belt pulley (2).
Installation:
Lettering on belt pulley (2) points forwards.
After installation:
- Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
- Check pipe connections for leaks.
- Version with Dynamic Drive: If necessary, carry out initial operation for Dynamic Drive. Refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
