32 41 037 Removing And Installing Power Steering Pump For Power Steering Gear With Dynamic Drive (N73)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Close off pipe connections with plugs.

NOTE: When replacing power steering pump:

Fluid reservoir must be replaced in event of metal abrasion, sluggish pump shaft or increased wear! Refer to 32 41 253 Removing And Installing/Replacing Fluid Reservoir For Power Steering With Dynamic Drive .

The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected

Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.

It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.

Necessary Preliminary Tasks:

Draw off and dispose off hydraulic fluid from fluid reservoir.
Observe country-specific waste-disposal regulations.
Remove drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N73) .
Remove front assembly underside protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

Release screw (1).

Tightening torque, refer to 32 41 5AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Release banjo bolt and disconnect Dynamic Drive pressure line (2) with bracket from power steering pump.

Installation:

Replace all sealing rings.

Make sure parts are laid without tension and with sufficient spacing to adjoining components.

Tightening torque, refer to 32 41 3AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

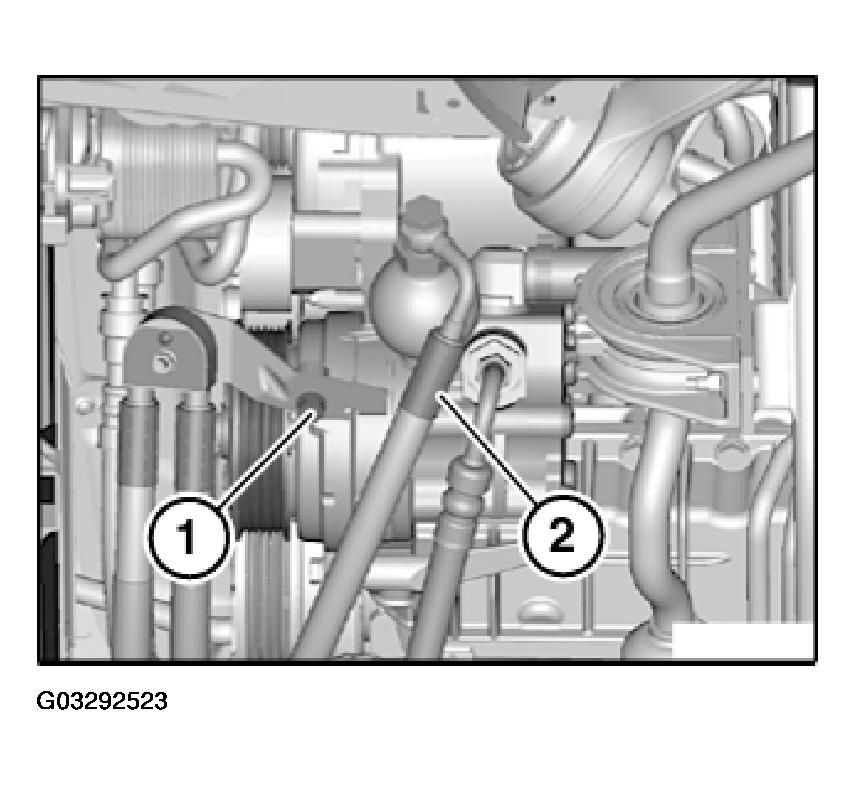

Fig 1: Dynamic Drive Pressure Line And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt and disconnect power steering pressure line (1) from power steering pump.

Installation:

Replace sealing ring.

Make sure parts are laid without tension and with sufficient spacing to adjoining components.

Tightening torque, refer to 32 41 3AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Release hose clamp and detach suction line (2) from power steering pump.

Installation:

Align suction line (2) by way of marking to connection on power steering pump.

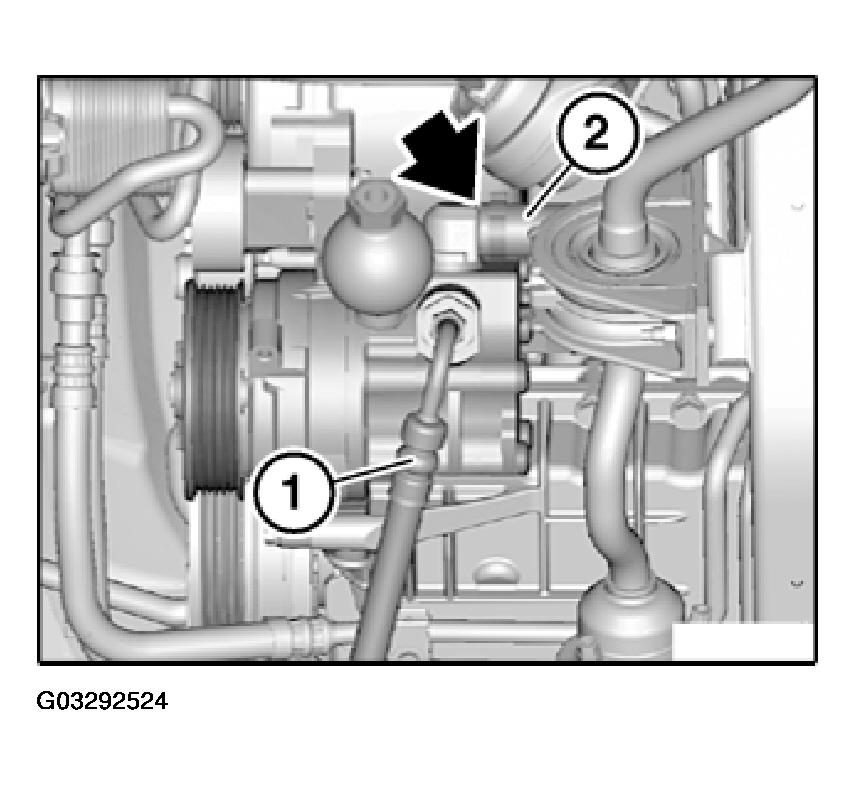

Fig 2: Power Steering Pressure Line And Suction Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Release bolt (2) and nut (3).

Remove power steering pump.

Installation:

Tightening torque, refer to 32 41 1AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

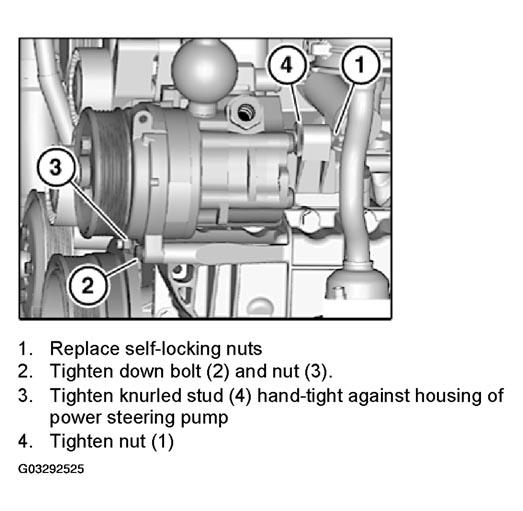

Fig 3: Power Steering Pump Knurled Stud, Bolts And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
Check pipe connections for leaks.
If necessary, carry out initial operation for Dynamic Drive. Refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
