22 32 055 Removing And Installing/Replacing Transmission Support Block
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Replacing rubber mount for transmission mounting. Refer to 22 32 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING .
- Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

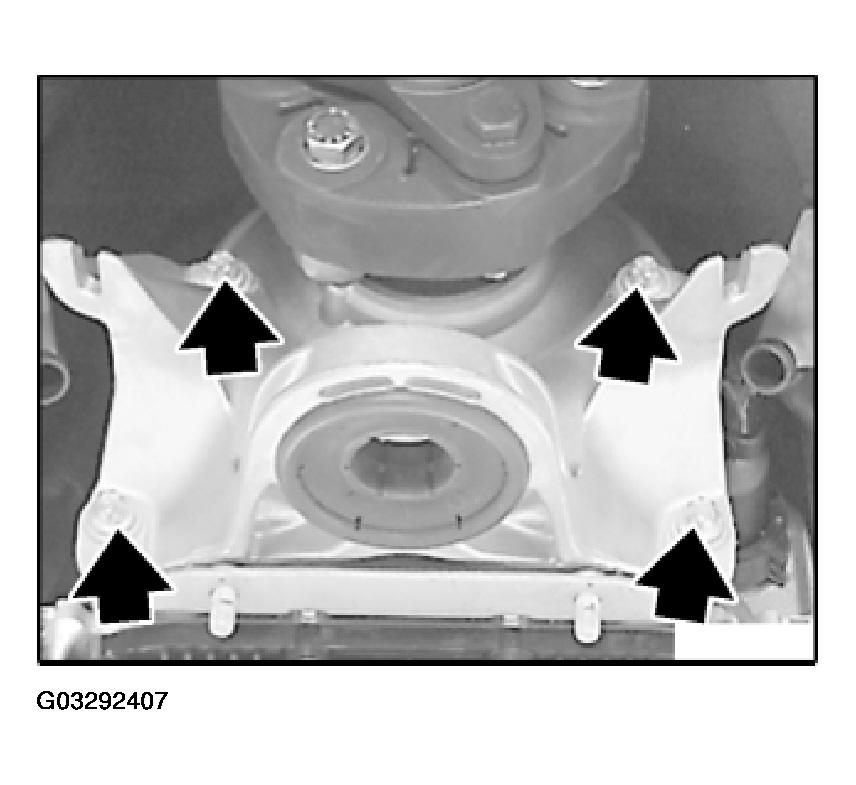

Remove exhaust system suspension (1) from transmission support block.
Remove transmission support block from transmission.
Installation:
Tightening torque, refer to 22 32 2AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
