22 32 001 Replacing Rubber Mount For Transmission Mounting
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove complete exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N73) .
- Remove heat shield at rear. See 11 FUEL TANK WITH MOUNTING
- Remove heat shield at front. See 11 FUEL TANK WITH MOUNTING
- Remove transmission underbody panelling. See AUTOMATIC TRANSMISSION
- Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

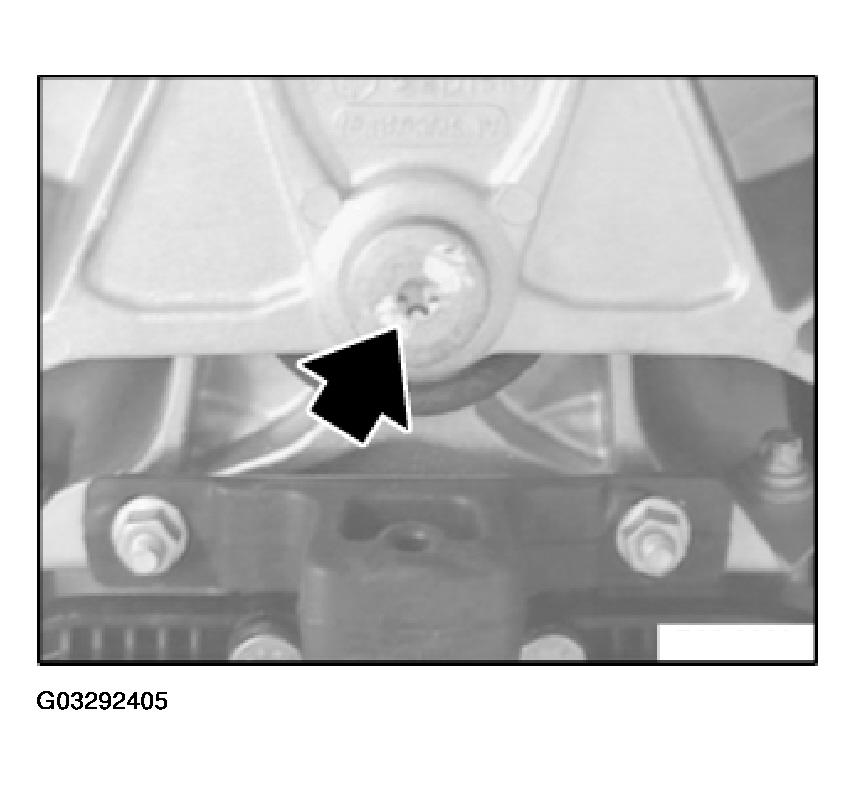

Release crash pin.
Installation:
Tightening torque, refer to 22 32 1AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
When fitting a new cross-member, the crash pin must also be replaced.
Screw head of crash pin must rest on transmission cross-member.

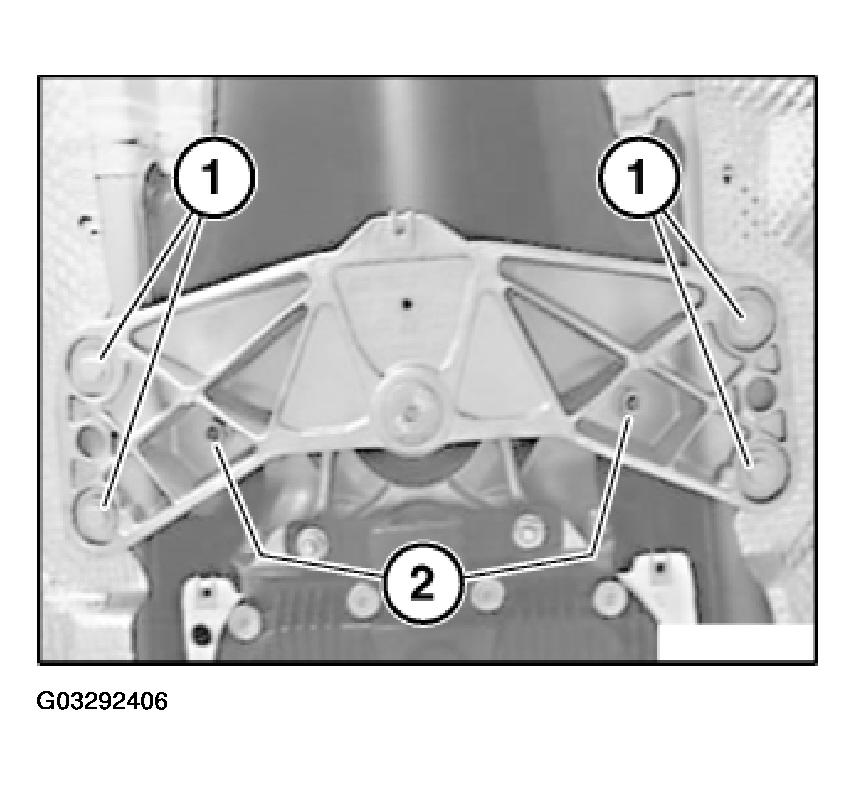

Unscrew nuts (2).
Release both rubber mount nuts on transmission.
Release screws (1) and remove transmission cross-member.
