17 11 000 Removing And Installing Radiator (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of coolant in a suitable container.

Observe country-specific waste-disposal regulations.

Necessary Preliminary Tasks:

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (N73) .
Remove front underbody protection.
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (N73) .
Detach heat exchanger for automatic transmission from radiator. Refer to 17 22 010 REMOVING AND INSTALLING/REPLACING HEAT EXCHANGER FOR AUTOMATIC TRANSMISSION (N73) .
Unlock and detach all coolant hoses on radiator. Refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM. .

Remove radiator (1) towards top.

Installation:

Ensure correct seating in side guides.

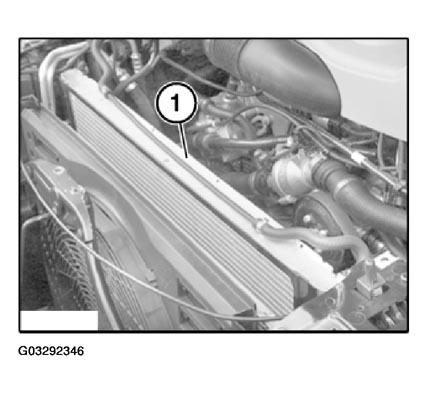

Fig 1: View Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N73) .
