12 41 020 Removing And Installing/Replacing Starter Motor (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove right exhaust manifold. Refer to 18 40 020 REMOVING AND INSTALLING/REPLACING RIGHT EXHAUST MANIFOLD (N73) .
Disconnect battery negative lead and cover.

Unfasten screws.

Remove heat shield (1).

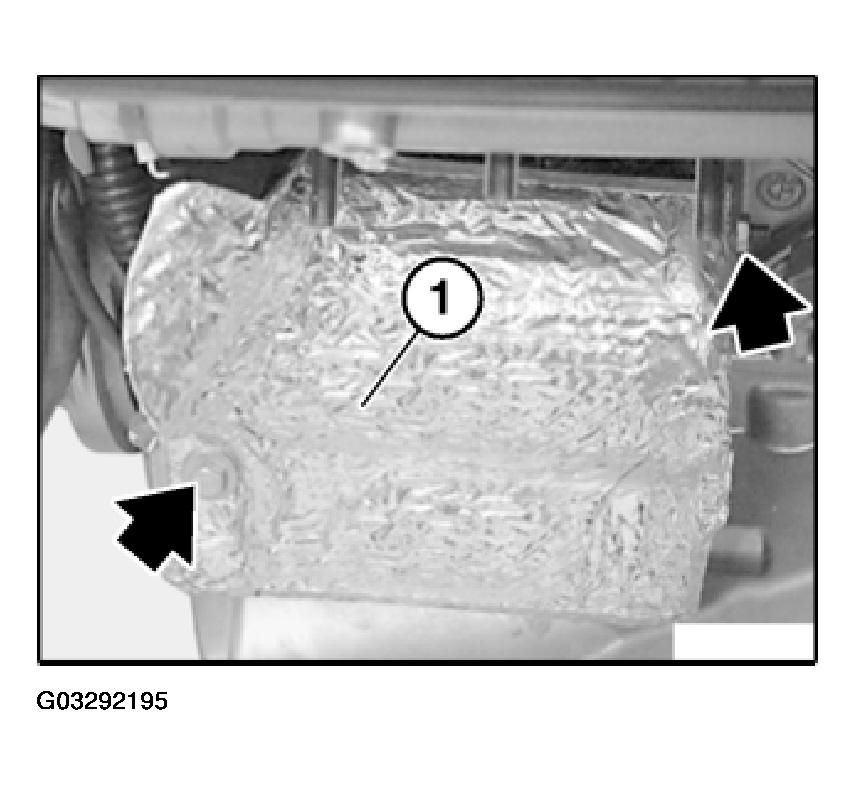

Fig 1: View Of Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

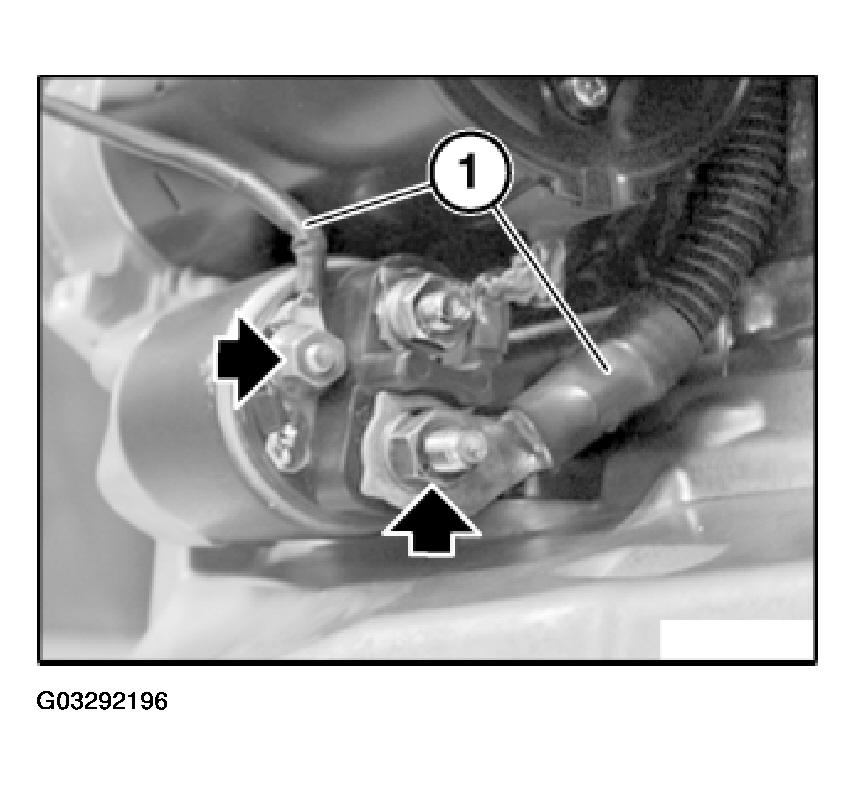

Remove lines (1).

Fig 2: Removing Lines

Courtesy of BMW OF NORTH AMERICA, INC.

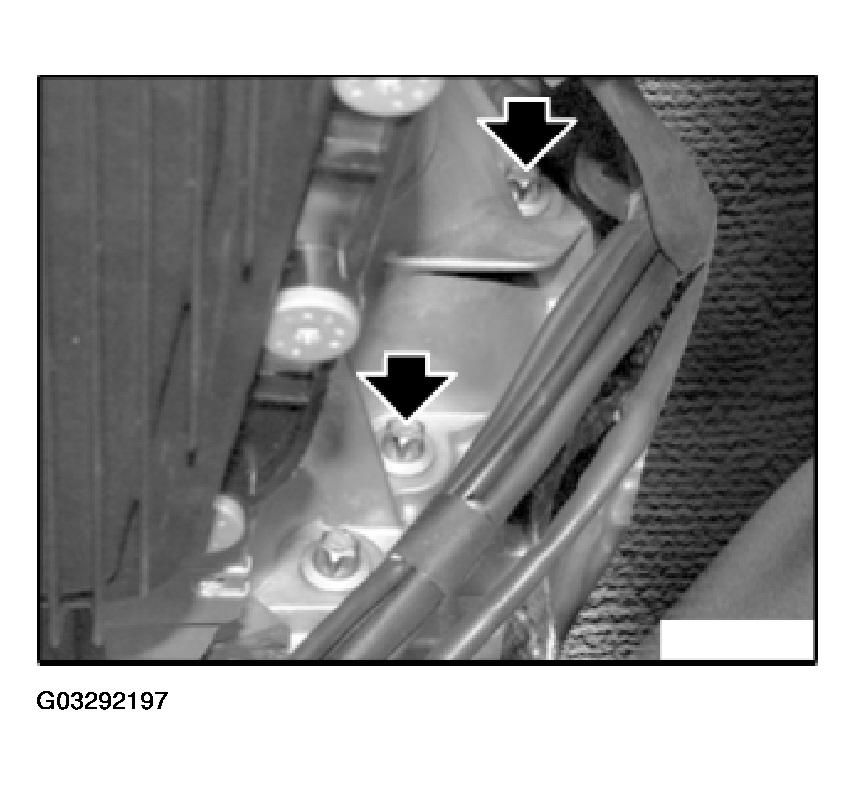

Release screws and pull release out of transmission mounting and remove.

Tightening torque, refer to 12 41 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 3: Pulling Release Out Of Transmission Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Installation:

Check starter pinion and ring gear for damage, replace damaged parts if necessary.
