12 42 500 Removing And Installing Or Replacing Battery Positive Lead (Between Alternator, Starter Motor And Battery Positive Support Point) (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

BATTERY POSITIVE LEAD REMOVAL

Work Step	Note:
Switch off ignition.
Disconnect negative battery lead.	Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Lift engine hood into assembly position. Refer to 51 00... SERVICE POSITION OF ENGINE HOOD .
Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
Remove right fresh air duct. Refer to 64 31 031 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C HIGH) .
Remove bulkhead, equipment compartment, center. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .
Remove suction filter housing. Refer to 13 71 010 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) INTAKE FILTER HOUSING (N73) .
Disconnect battery positive lead from jump-start support point.
Detach battery positive lead from alternator. Refer to 12 31 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR (LIQUID-COOLED N73) .	Tightening torque, refer to 12 31 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Secure engine in installation position with special tool. Refer to 11 00 ... SECURING ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL (N73) .
Lower front axle.
Remove left exhaust manifold. Refer to 18 40 010 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST MANIFOLD (N73) .
Detach battery positive lead from starter motor. Refer to 12 41 020 REMOVING AND INSTALLING/REPLACING STARTER MOTOR (N73) .	Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

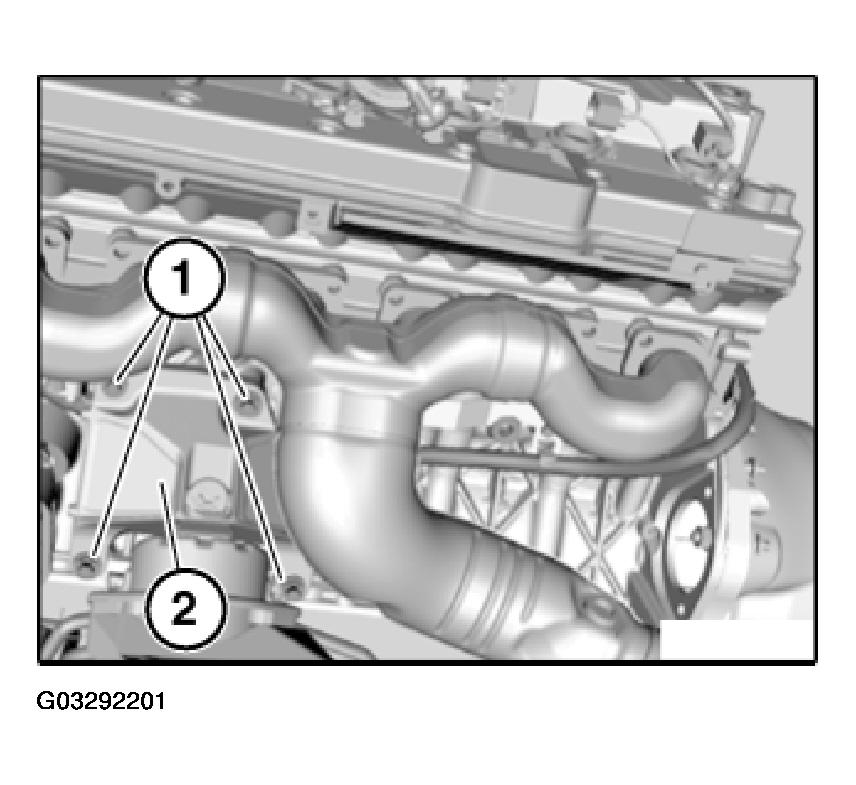

Release screws (1).

Remove left engine support arm.

Fig 1: Identifying Left Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

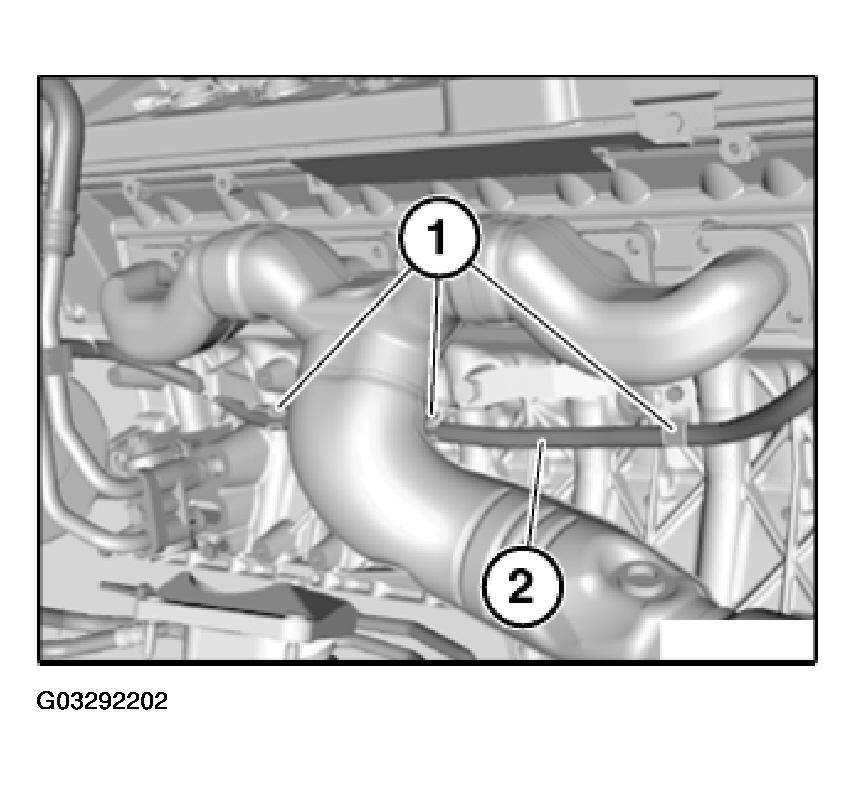

Unclip battery positive lead (2) from holders (1).

Fig 2: Locating Battery Positive Lead And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

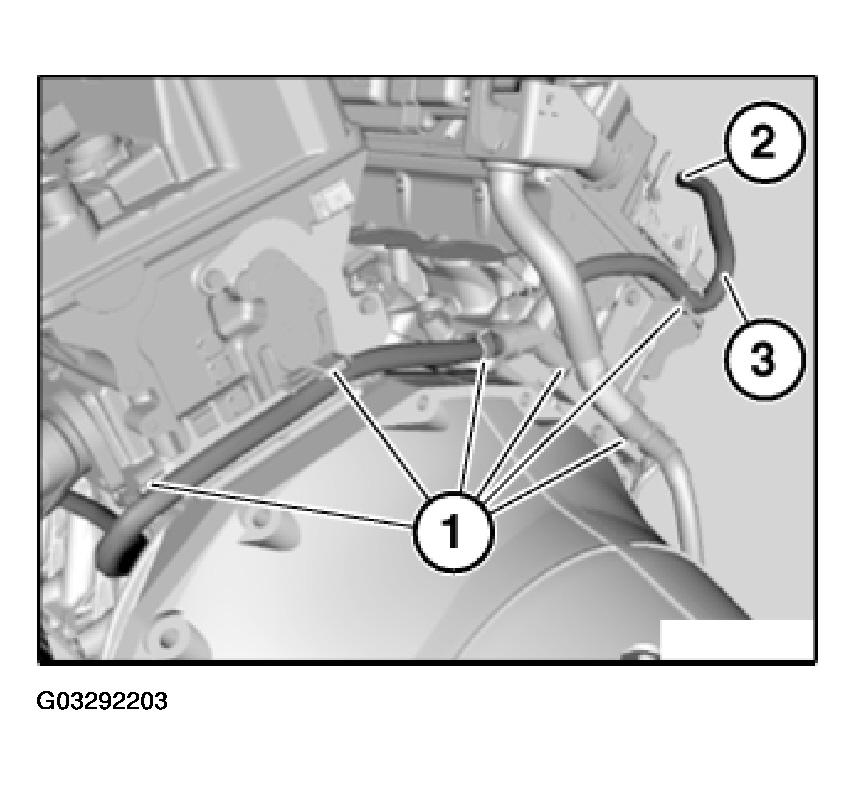

Unclip battery positive lead (3) from holders (1).

Disconnect battery positive lead from jump-start support point.

Tightening torque, refer to 12 42 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 3: View Of Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
