11 13 020 Removing And Installing/Replacing Oil Sump Bottom Section (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove reinforcement plate.
Open oil drain plug and drain off engine oil. Refer to 00 00 610 ENGINE OIL SERVICE (N73) .

Disconnect plug connection on oil level sensor (1).

Release screws (2) and remove oil level sensor (1).

Release screws along line (3) and remove oil sump (4).

Installation:

Tightening torque, refer to 11 13 2A in ENGINE - TIGHTENING TORQUES .

Clean sealing surfaces.

Replace gasket and sealing rings.

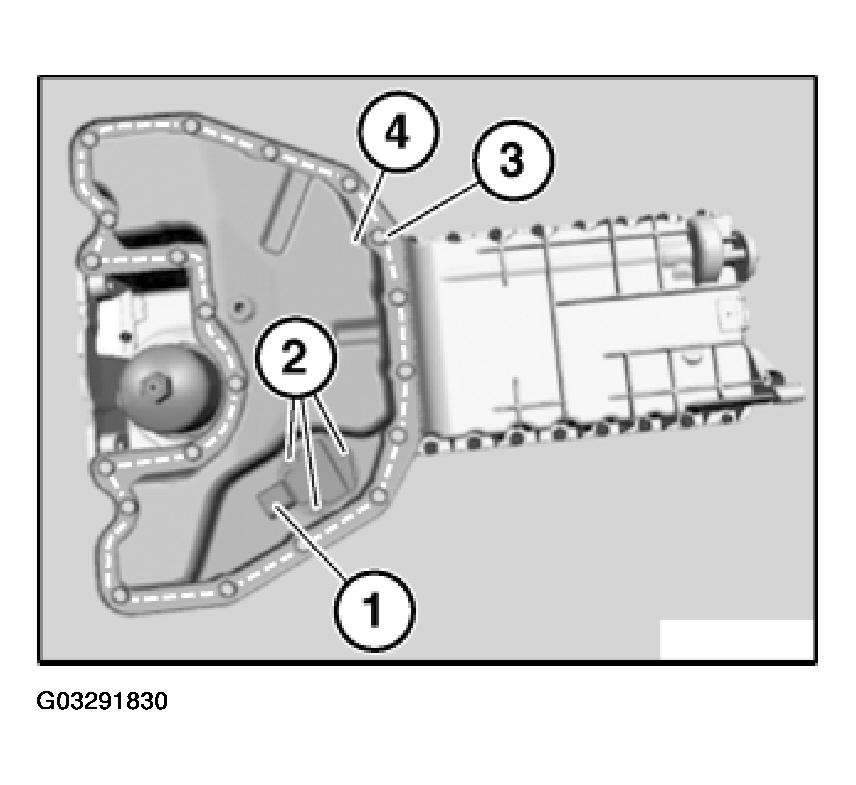

Fig 1: View Of Oil Sump Components

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
