00 00 610 Engine Oil Service (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil in a suitable container.

Observe country-specific waste-disposal regulations.

Remove oil drain plug (1).

Tightening torque, refer to 11 13 1AZ in ENGINE - TIGHTENING TORQUES .

Remove oil drain plug (2).

Tightening torque 10 N.m.

Release oil filter cover (3).

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES .

NOTE: For purposes of clarity, this work step is shown without the reinforcement plate.

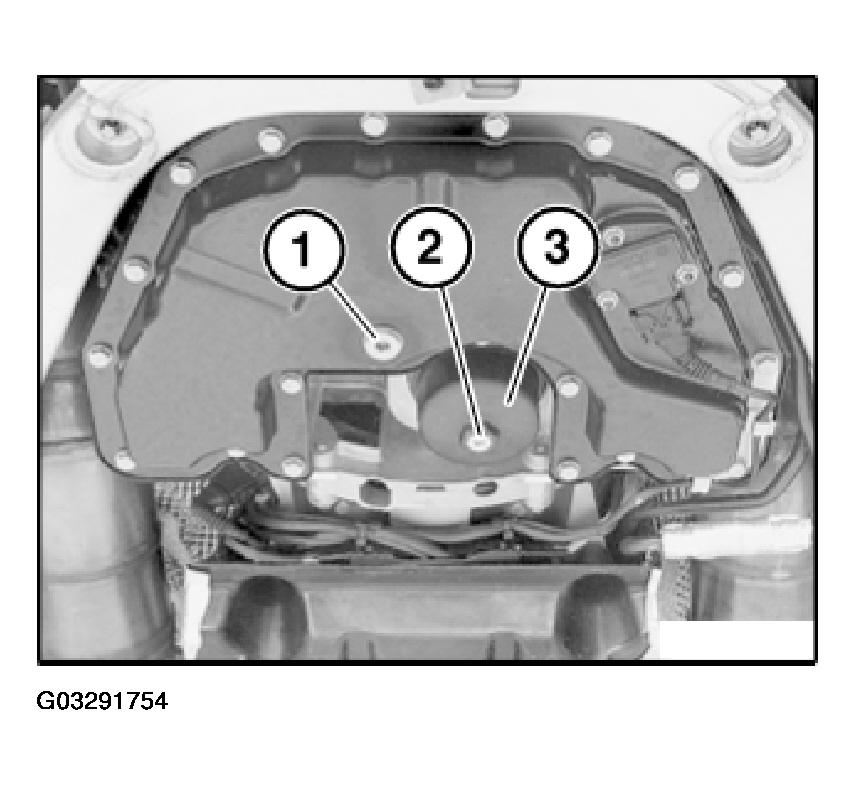

Fig 1: Removing Oil Drain Plug And Releasing Oil Filer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace and slightly oil sealing rings (1) and (2).

Replace oil filter element (3).

Oil filter element (3) must snap audibly into place.

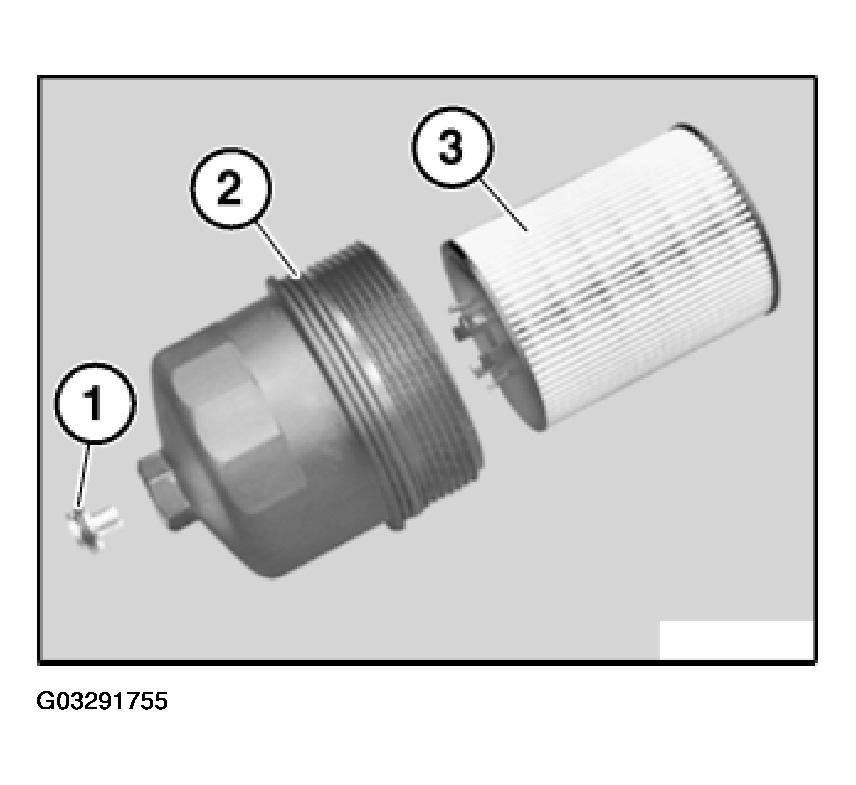

Fig 2: Installing Oil Filter

Courtesy of BMW OF NORTH AMERICA, INC.
