11 43 000 Removing And Installing/Sealing Oil Dipstick Guide Tube (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Drain engine oil. Refer to 00 00 610 ENGINE OIL SERVICE (N73) .
- Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF AASSEMBLY COMPARTMENT BULKHEAD .
- Remove reinforcement plate.
- Remove lower section of steering spindle. Refer to 32 31 070 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING SPINDLE .

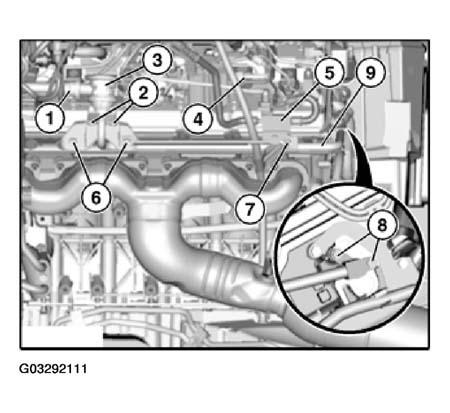

Disconnect air connection (1) on secondary valve.
Loosen screws (2).
Remove secondary valve (3).
Loosen screws (8).
Release secondary pipe (9) and lay to one side.
Detach high-pressure line (4). Refer to 13 53 175 REMOVING AND INSTALLING/REPLACING ALL PRESSURE LINES (N73) .
Release screw (7) and place solenoid valve (5) to one side.

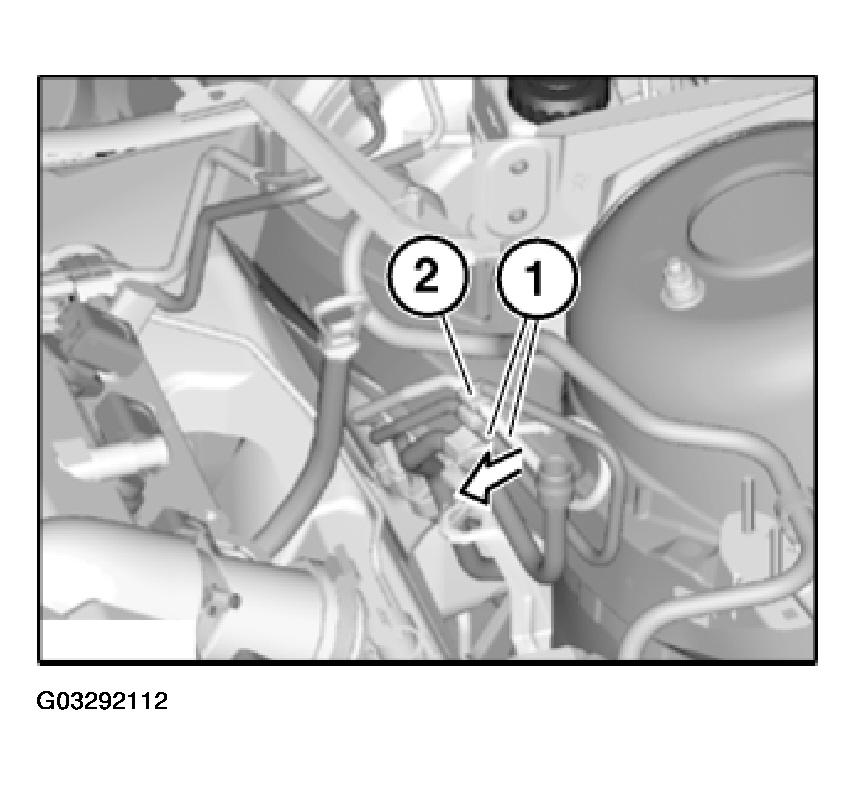

Detach fuel lines (1) from holder (2).
Press fuel lines (1) downwards.
IMPORTANT:
Press fuel line downwards carefully, Risk Of Damage
.

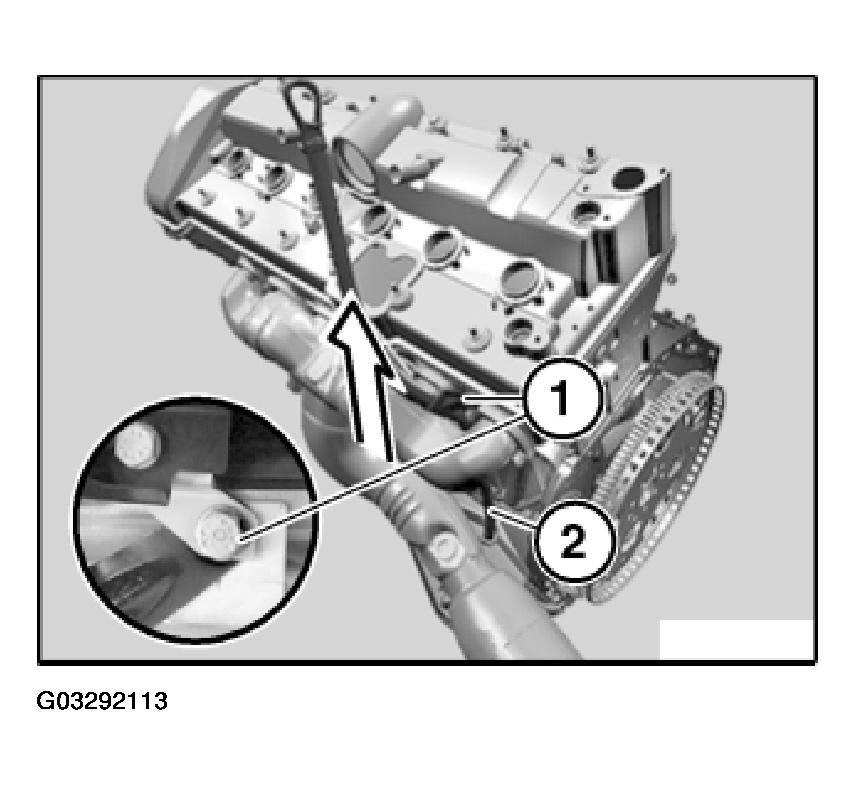

Release screw (1), twist oil guide tube (2) and lift out.
Installation:
Replace sealing ring on guide tube.
Apply light coat of oil to seal.
Tightening torque, refer to 11 43 1AZ in ENGINE - TIGHTENING TORQUES .
IMPORTANT:
Pay attention to routing of B+ lead. The guide tube can only be removed if the secondary pipe has been detached. Do not bend guide tube.
Assemble engine.
