11 14 250 Removing And Installing/Replacing Rear Coolant Cap (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N73) .
Remove automatic transmission. Refer to AUTOMATIC TRANSMISSION .
Remove flywheel. Refer to 11 22 510 REMOVING AND INSTALLING/REPLACING FLYWHEEL (N73) .

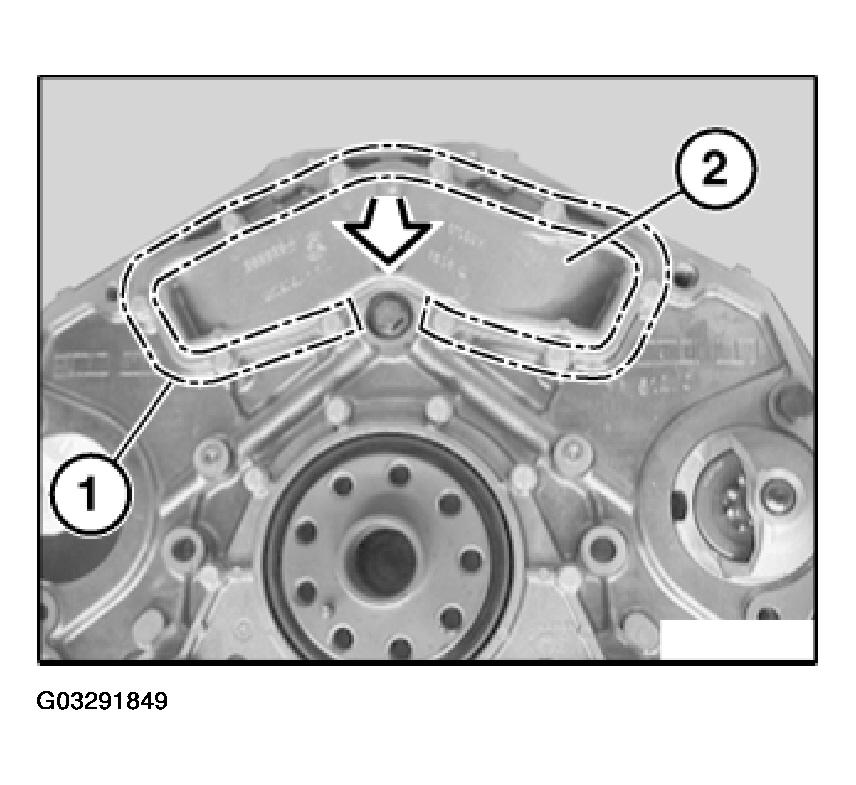

Release screws in area (1).

Remove coolant cap (2).

NOTE: Illustrations shows cylinder heads removed.

Fig 1: Removing Coolant Cap (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

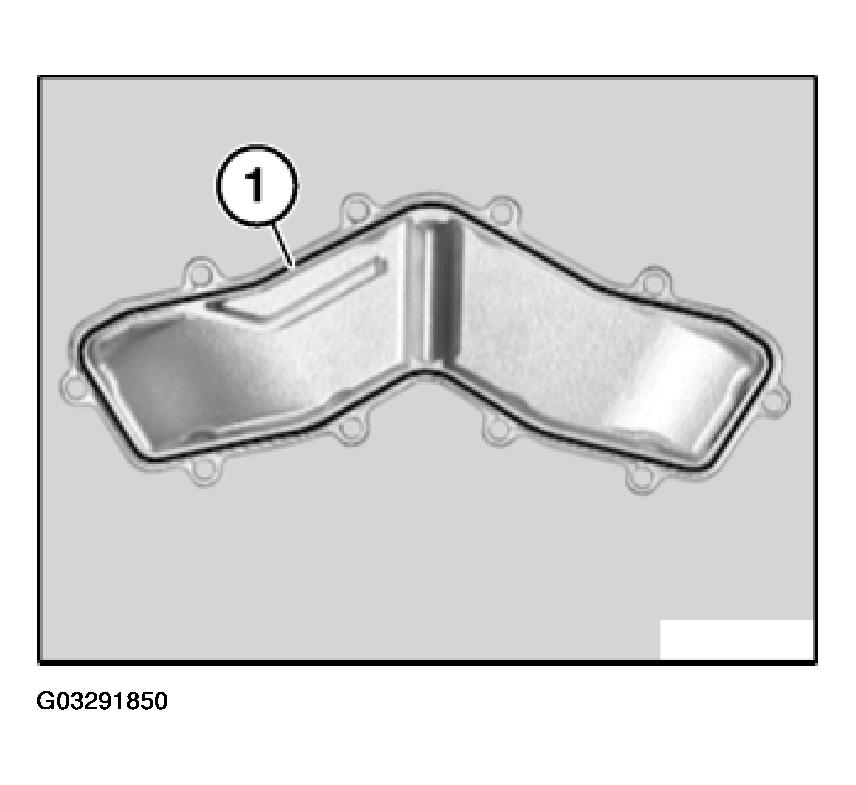

Replace seal (1).

Fig 2: Replacing Seal (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
