11 14 085 Removing And Installing Top Right Timing Case Cover (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
- Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N73) .
- Remove fan. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .

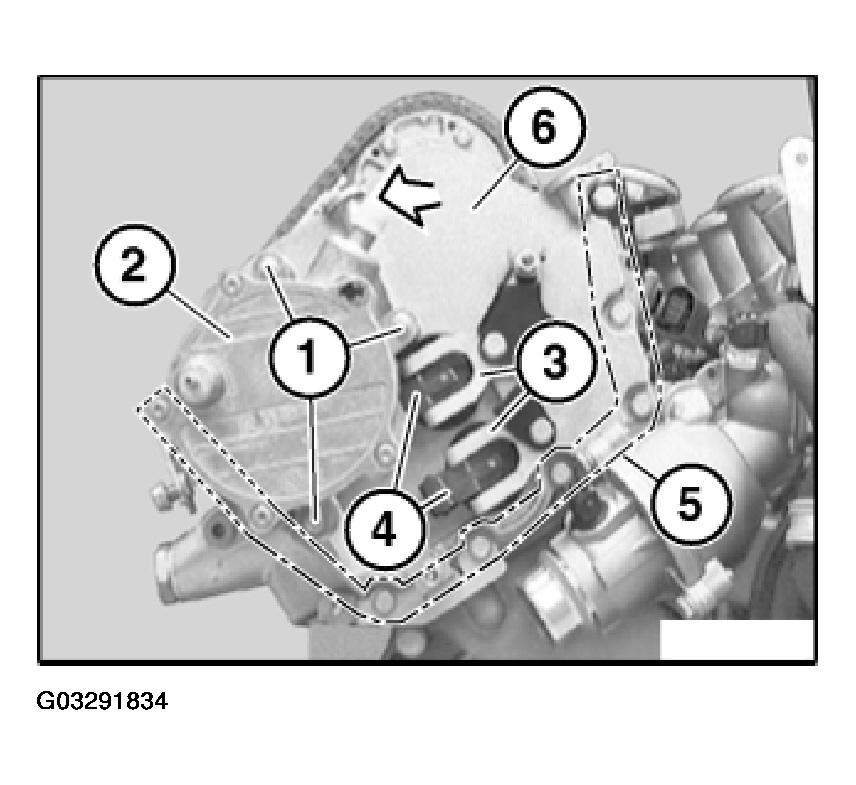

Release screws (1).
Remove vacuum pump (2) towards front.
Detach plug connection on solenoid valves (4).
Release screws and remove holder (3).
Remove solenoid valves (4) towards front.
Release screws along line (5).
Remove timing case cover (6) towards front.

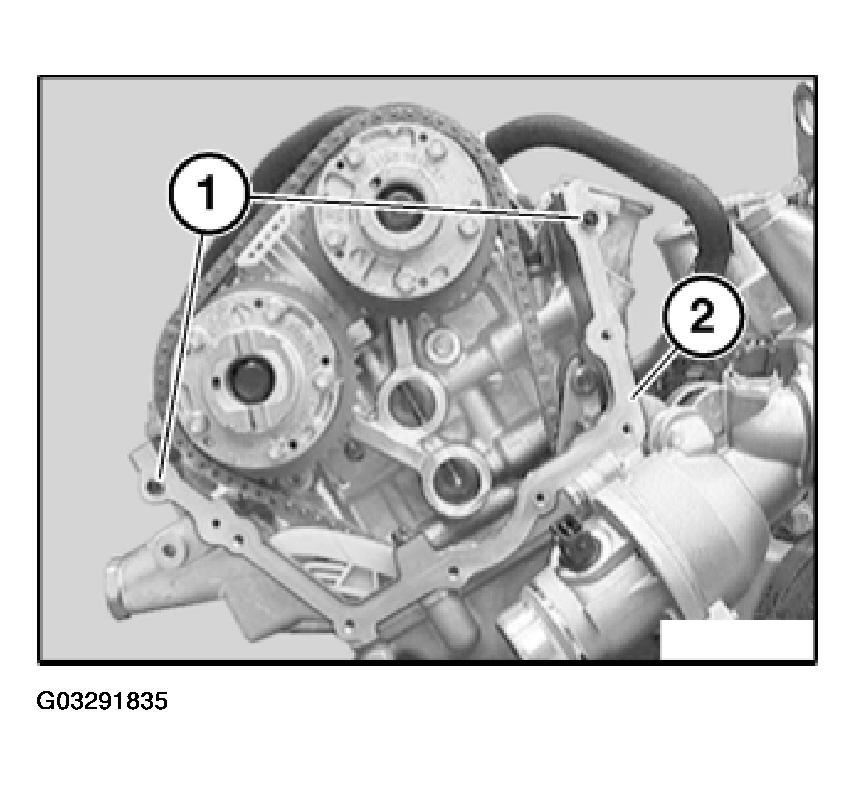

Check adapter sleeves (1) for damage and correct installation position; replace if necessary.
Clean sealing faces (2).
Installation:
Replace gasket and ensure correct installation position.
Assemble engine.
