11 31 052 Replacing Both Timing Chains (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 2 001
11 2 002
11 2 003
11 2 007

Necessary Preliminary Tasks:

Remove lower timing case cover. Refer to 11 14 110 REMOVING AND INSTALLING LOWER TIMING CASE COVER (N73) .

Remove timing chain (1).

Remove timing chain (5).

Loosen screws (7).

Remove guide rails (3 and 6).

Remove tensioning rails (2 and 4).

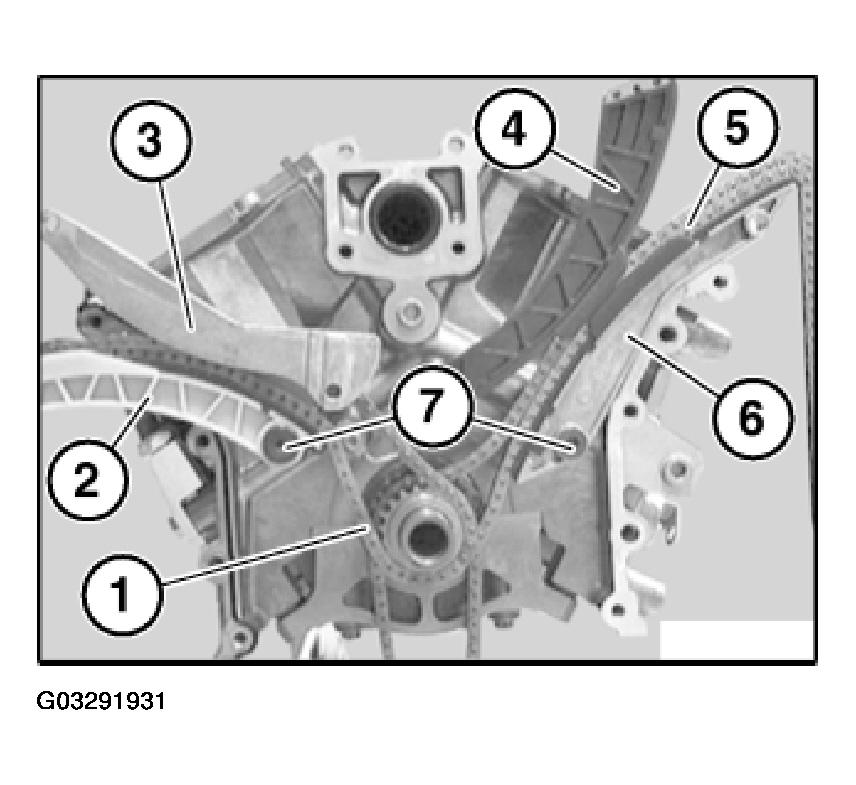

Fig 1: Removing Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tools 11 2 001 and 11 2 002 to crankshaft.

Insert special tool 11 2 007 and remove sprocket wheel with special tool 11 2 003.

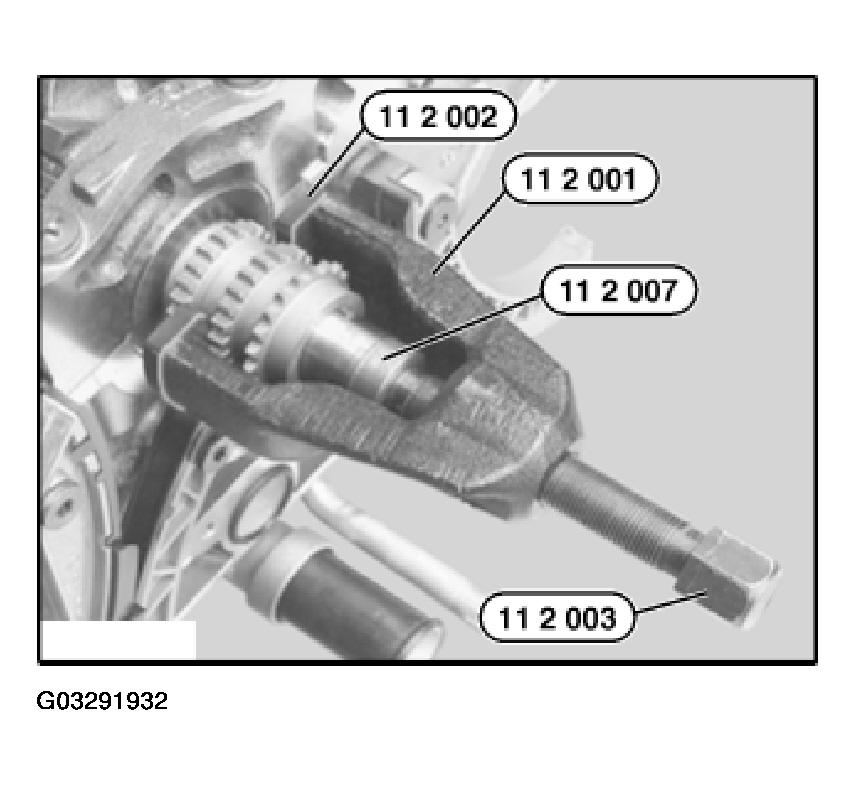

Fig 2: Attaching Special Tools To Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Installation:

Check sprocket wheels for wear, replace if necessary.
