11 72 194 Removing And Installing/Replacing Left Secondary Pipe (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Drain engine oil. Refer to 00 00 610 ENGINE OIL SERVICE (N73) .
Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF AASSEMBLY COMPARTMENT BULKHEAD .
Remove reinforcement plate.
Remove lower section of steering spindle. Refer to 32 31 070 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING SPINDLE .

Disconnect air connection (1) on secondary valve.

Unscrew bolt (2).

Remove secondary valve (3).

Detach high-pressure line (4). Refer to 13 53 175 REMOVING AND INSTALLING/REPLACING ALL PRESSURE LINES (N73) .

Tightening torque, refer to 13 53 2AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Release screw (7) and place solenoid valve (5) to one side.

Unscrew bolt (8).

Release secondary pipe (9) and lay to one side.

Installation:

Fit secondary pipe and secondary valve without gaps.

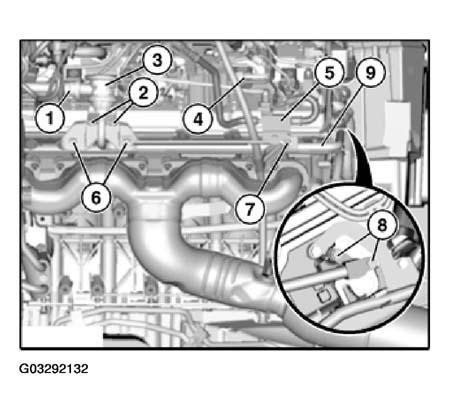

Fig 1: Identifying Secondary Pipe Bolt (Left)

G03292132

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel lines (1) from holder (2).

Press fuel line (1) downwards.

IMPORTANT: Press fuel lines (1) downwards carefully, risk of damage.

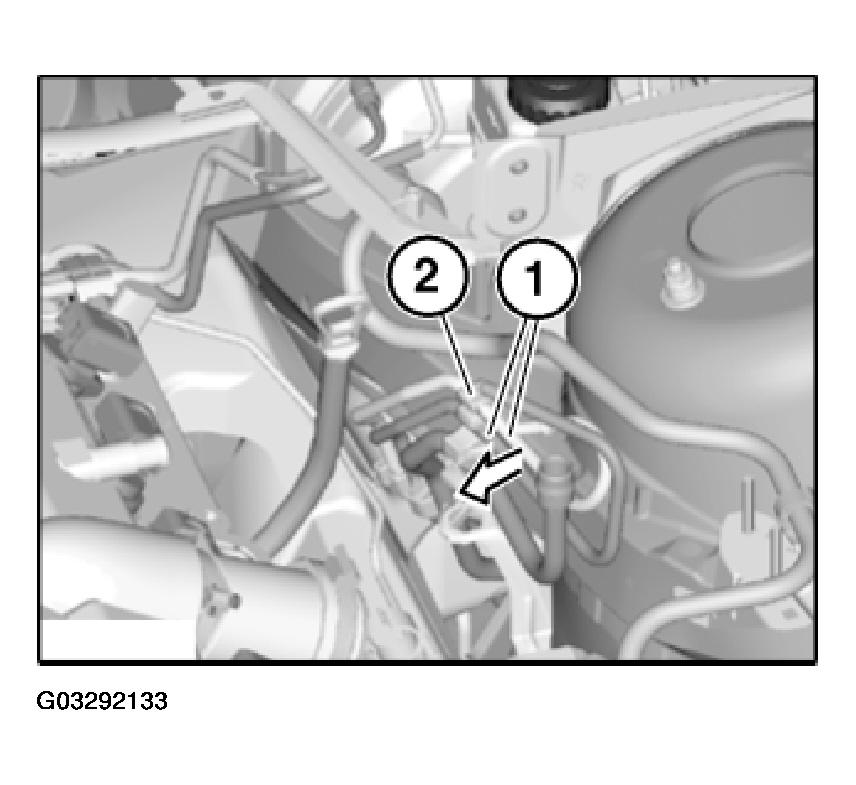

Fig 2: Detaching Fuel Lines From Holder (Left)

G03292133

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), twist oil guide tube (2) and lift out.

Installation:

Replace sealing ring on guide tube.

Apply light coat of oil to seal.

Tightening torque, refer to 11 43 1AZ in ENGINE - TIGHTENING TORQUES .

IMPORTANT: Pay attention to routing of B+ lead. The secondary pipe can only be removed if the oil guide tube is removed.

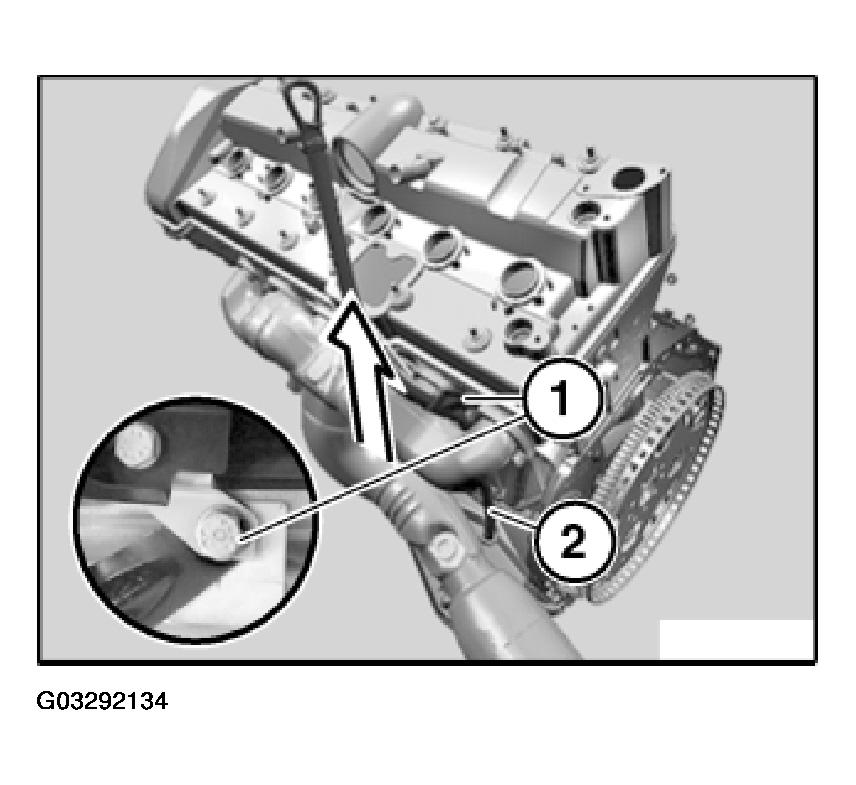

Fig 3: Removing Oil Guide Tube And Retaining Screw

G03292134

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
