12 14 550 Replacing control unit (M54 / S54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for removing and installing electronic control units. Refer to 12 00 ... WORKING INSTRUCTIONS FOR REMOVING AND INSTALLING ELECTRONIC CONTROL UNIT .

Read fault memory.

Turn off ignition.

Before replacing the control unit, you must comply with the following instructions:

Code control unit. Refer to 12 14 700 CODING CONTROL MODULE (DME / DDE) .
Program control unit. Refer to 12 14 705 PROGRAMMING CONTROL UNIT (DME / DDE) .

Release screw connection of electronics box (1).

Remove electronics box (1).

Installation:

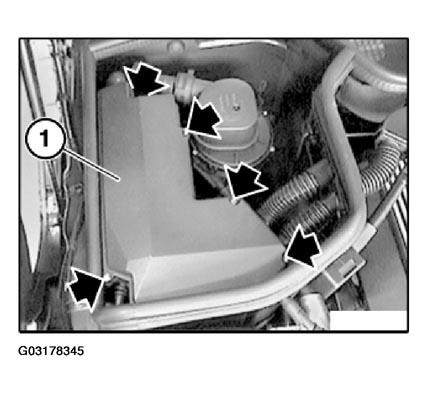

Fig 1: Removing Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from DME control unit.

Remove DME control unit.

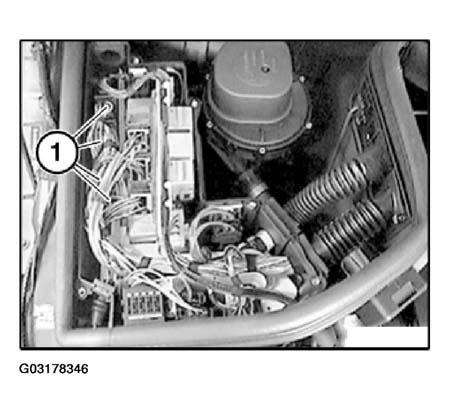

Fig 2: Removing DME Control Unit Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
