52 26 ... Removing and installing/replacing ski bag with cassette on rear seat (throughloading system) (Touring)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove center armrest. Refer to 52 26 030 REMOVING AND INSTALLING/REPLACING ARMREST FOR REAR-SEAT BACKREST (THROUGH-LOADING SYSTEM) .

Open cover at rear.

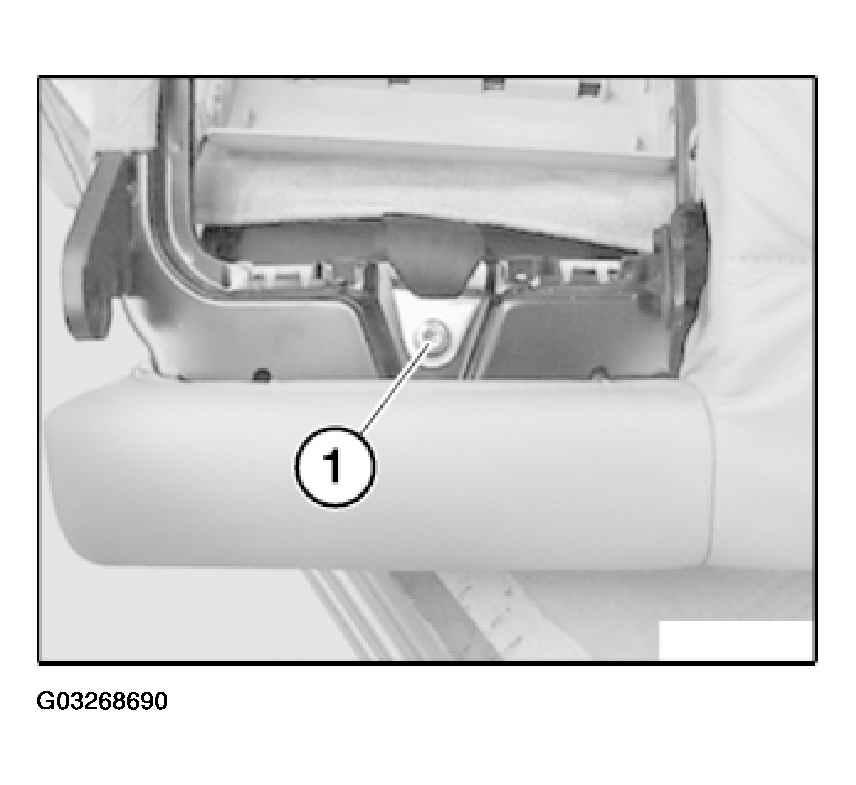

Fig 1: Locating Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Bend central metal element (1) at foot of ski bag towards front at bottom.

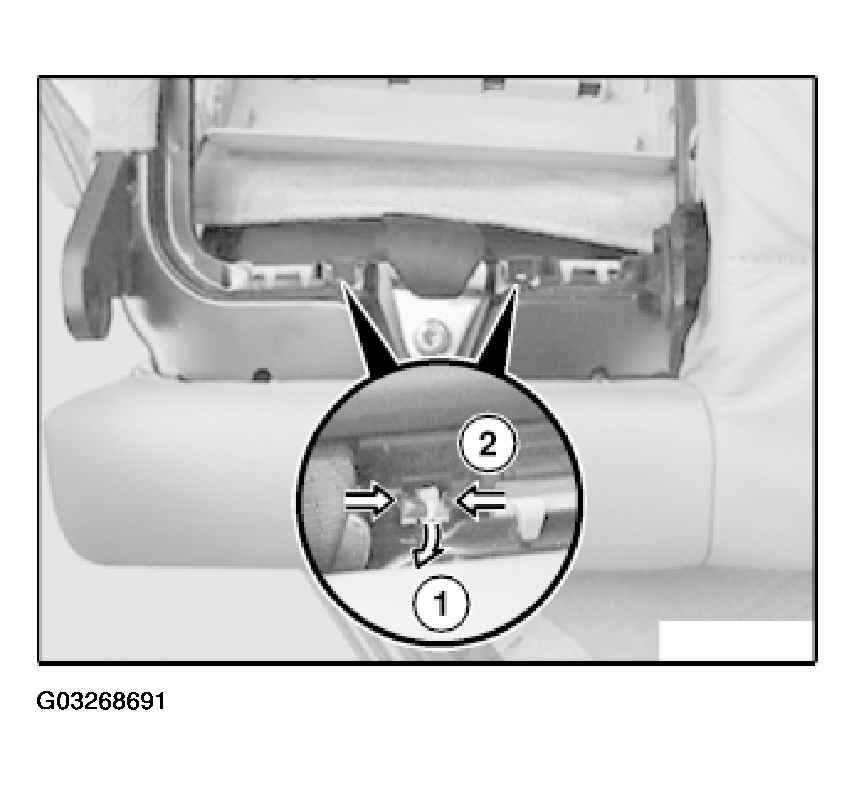

Fig 2: Removing Cassette
Courtesy of BMW OF NORTH AMERICA, INC.
Unlock seat back and gently tilt forwards.
Carefully press together clip feet (2) of cassette and remove cassette towards rear at bottom, paying attention to clips at side and top.

Installation:

Clip feet must not be damaged.

Unclip cover at rear towards top.

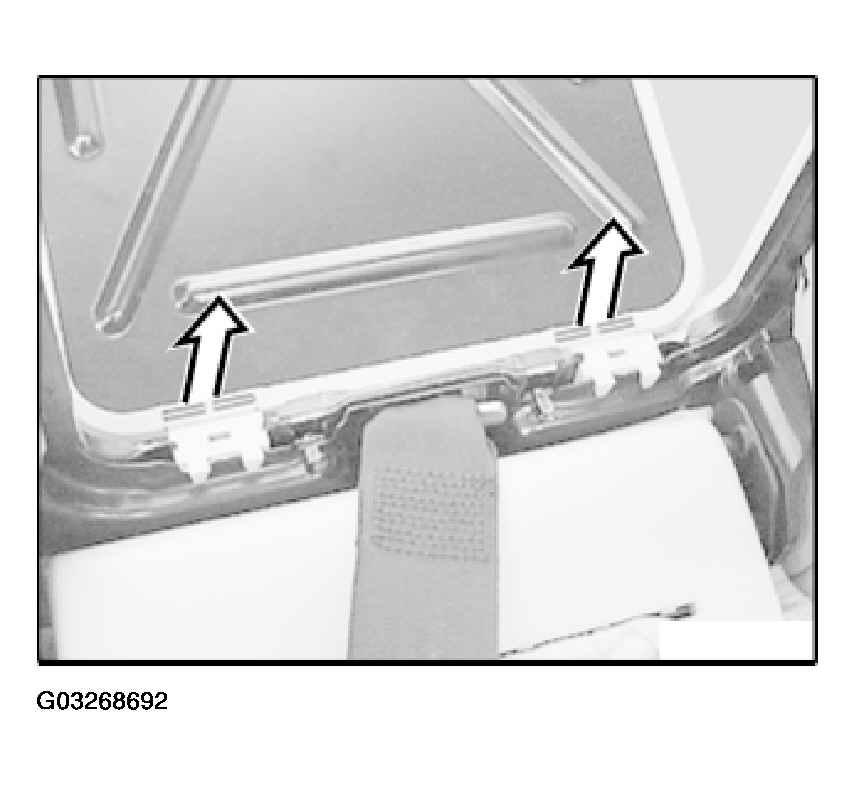

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
