52 26 030 Removing And Installing/Replacing Armrest For Rear-Seat Backrest (Through-Loading System)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Fold armrest and detach leather or material cover at top.

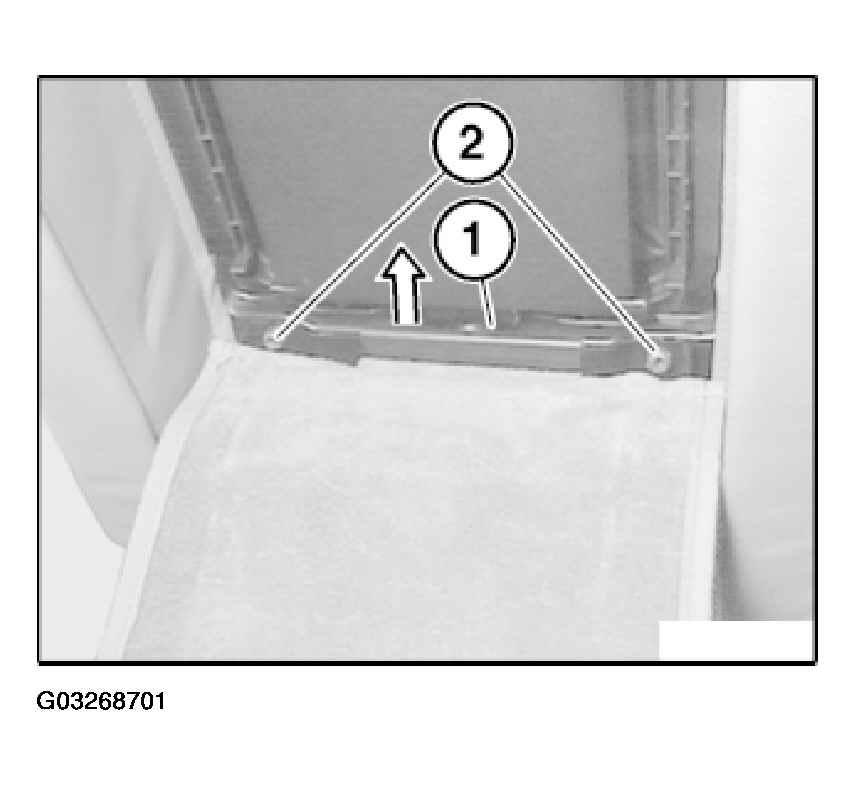

Fig 1: Removing Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Detach piping (1) on cover towards top.

Release screws (2) and remove armrest towards front.
