52 16 400 Replacing seat cover for left or right front seat (sports/electric)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing carrier for actuation:

Remove outer cover with switch combination, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .

Version with seat heating:

Disconnect plug connection (1) if necessary.

Fig 1: Disconnecting Plug Connection
G03268627Courtesy of BMW OF NORTH AMERICA, INC.

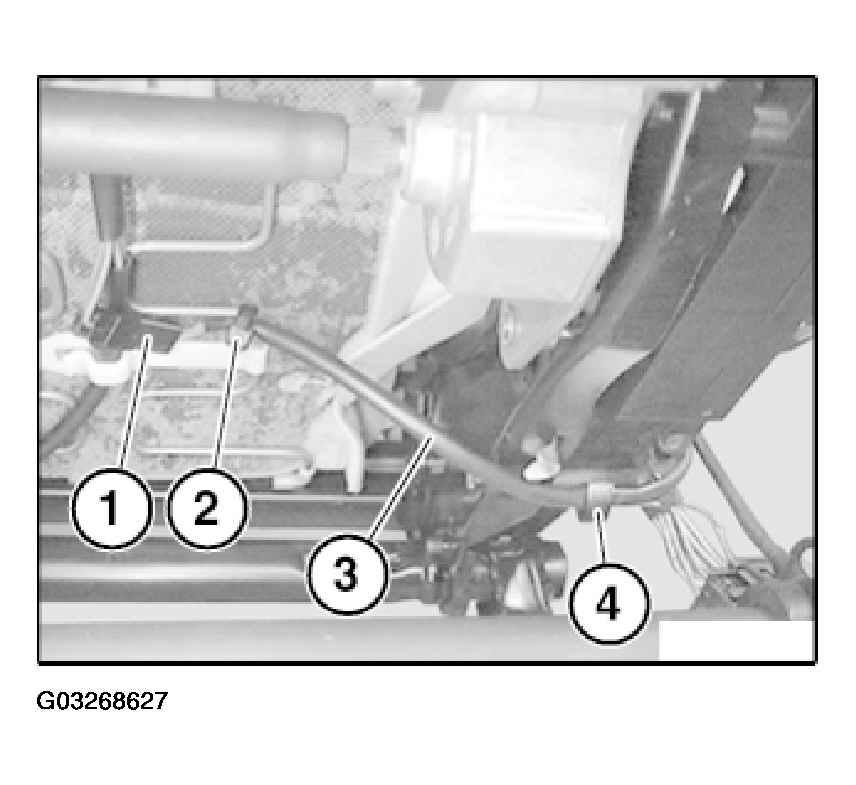

Unfasten cable clip (2).

Detach cable (3) from holder (4).

Version with seat heating:

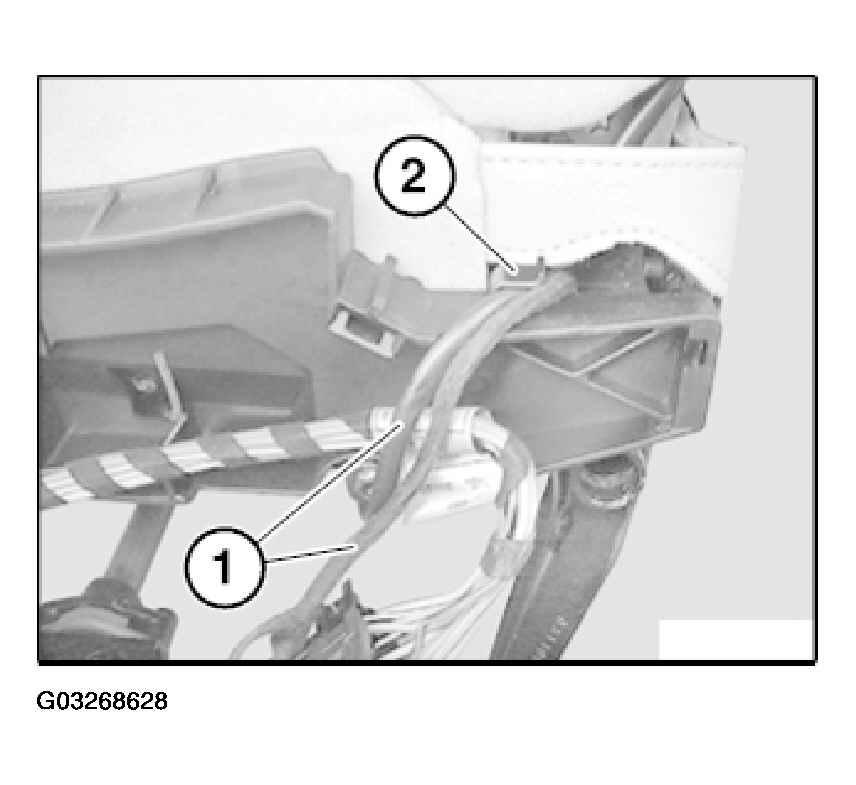

Detach cable (1) from holder (2).

Fig 2: Detaching Cable From Holder
G03268628Courtesy of BMW OF NORTH AMERICA, INC.

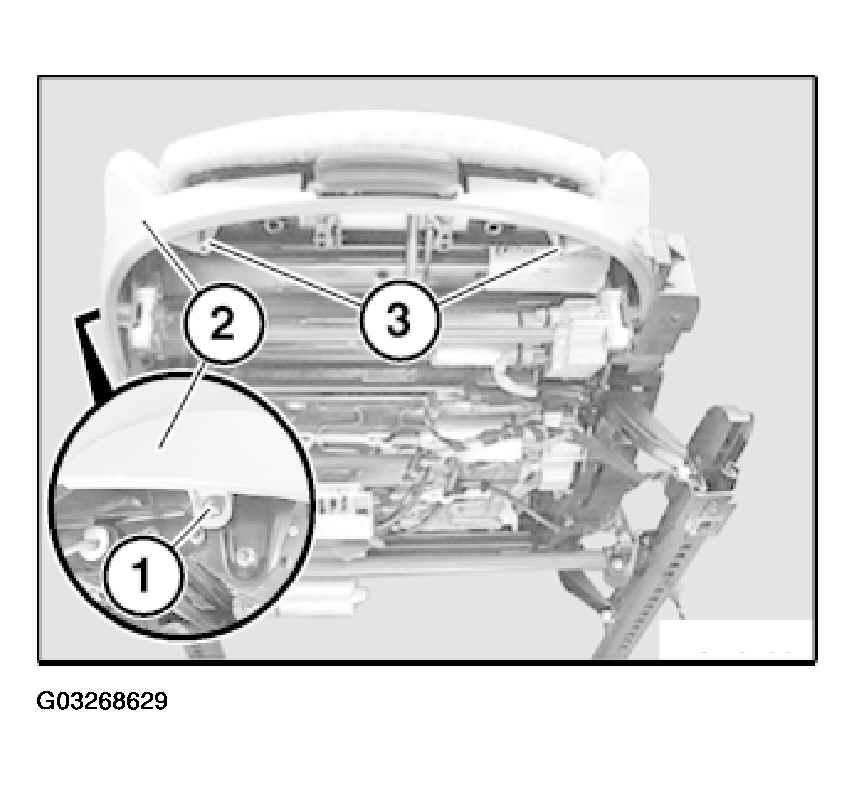

Release screw (1) on inside/outside.

Fig 3: Identifying Clips
G03268629Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (3) towards bottom and pull trim (2) out a little.

Release screws (1).

Fig 4: Removing Trim And Holder
G03268630Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim (2) out a little and release screw (3).

Unclip clip (5) from holder (4).

Remove trim (2) and holder (4).

Installation:

  1. Cable holders (1) on holder (2) must not be damaged.
Fig 5: Identifying Cable Holders On Holder
G03268631Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

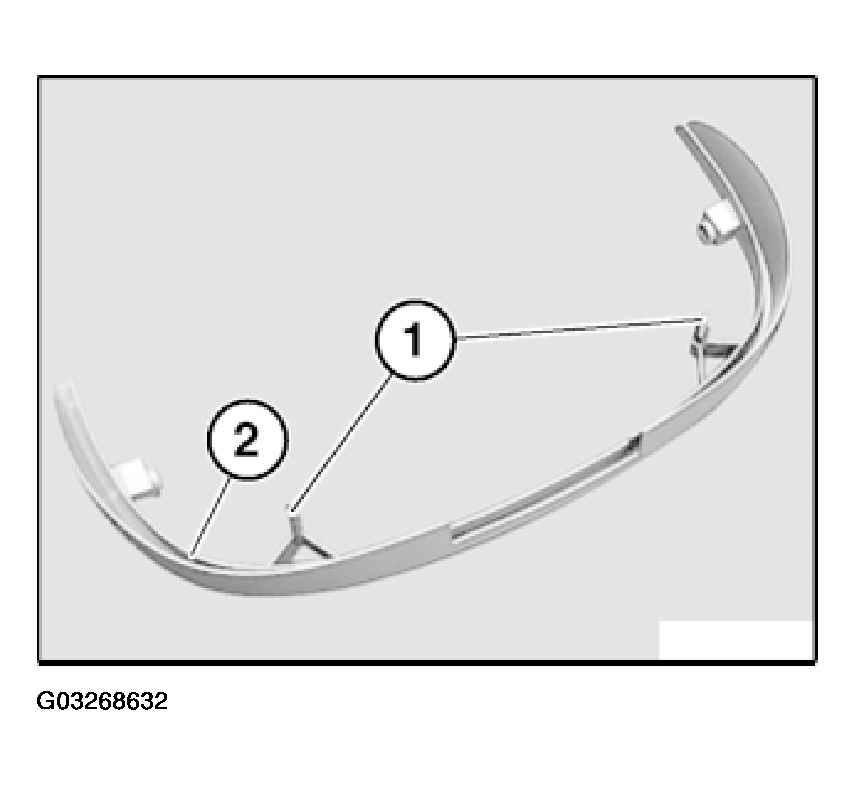

  1. Clips (1) on sports seat trim (2) must not be damaged.
Fig 6: Identifying Clips On Sports Seat Trim
G03268632Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The operation "Removing holder for actuation" ends here.

Removing complete seat cover:

Remove inner cover, refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL) .

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / ELECTRIC) .

Version with seat occupancy detector:

If necessary, disconnect plug connection (1) from control unit (2).

Fig 7: Disconnecting Plug Connection From Control Unit
G03268633Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

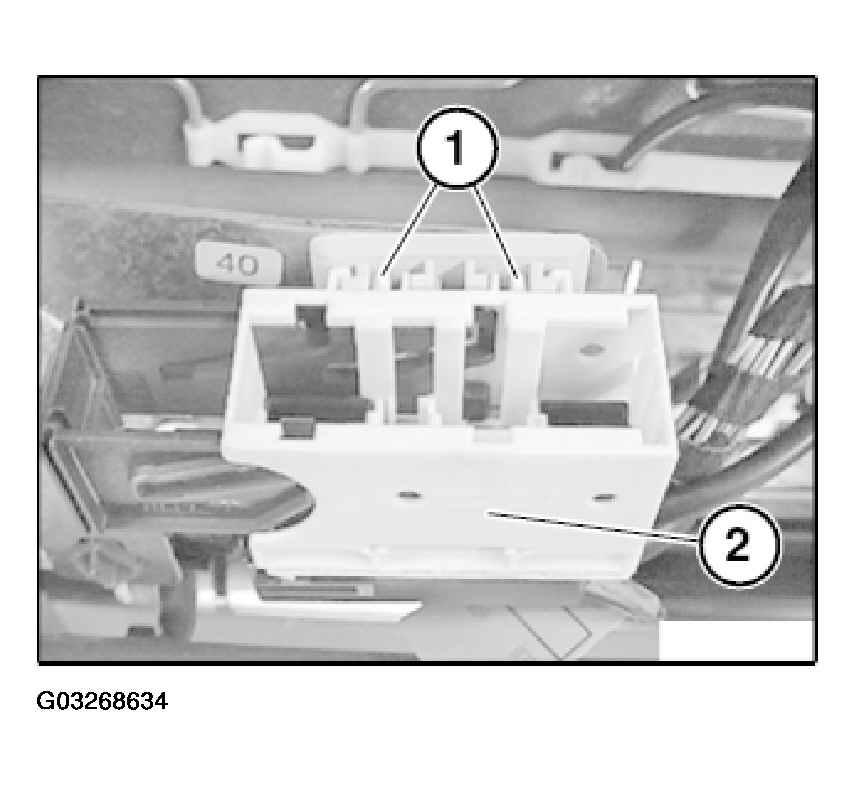

If necessary, unlock catches (1) and detach plug housing (2).

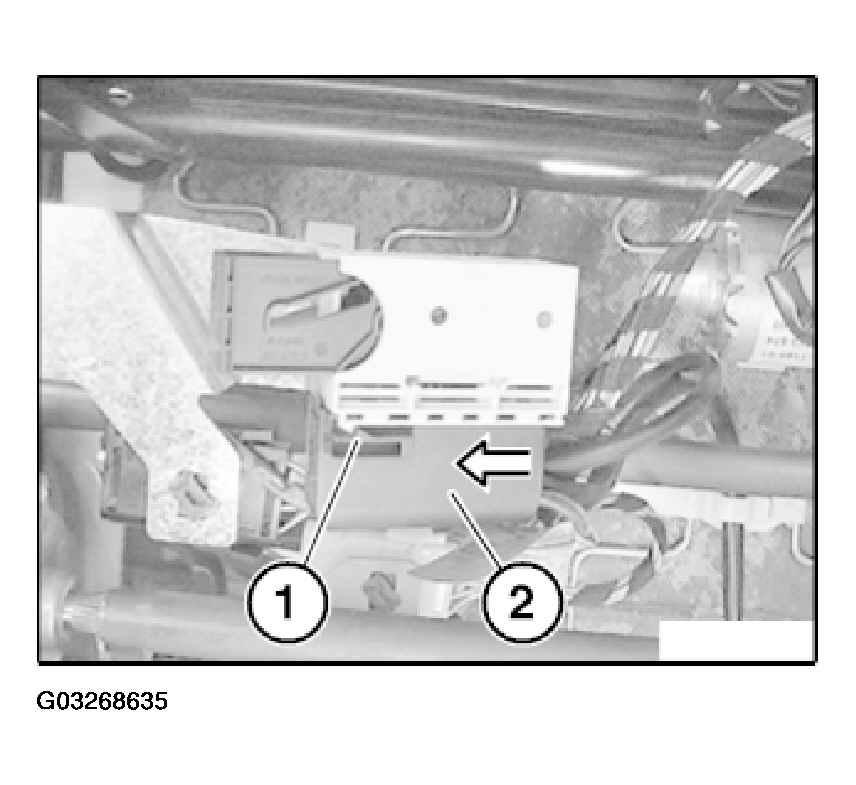

Fig 8: Detaching Plug Housing
G03268634Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

If necessary, press catch (1) downwards and detach cover (2).

Fig 9: Detaching Cover
G03268635Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

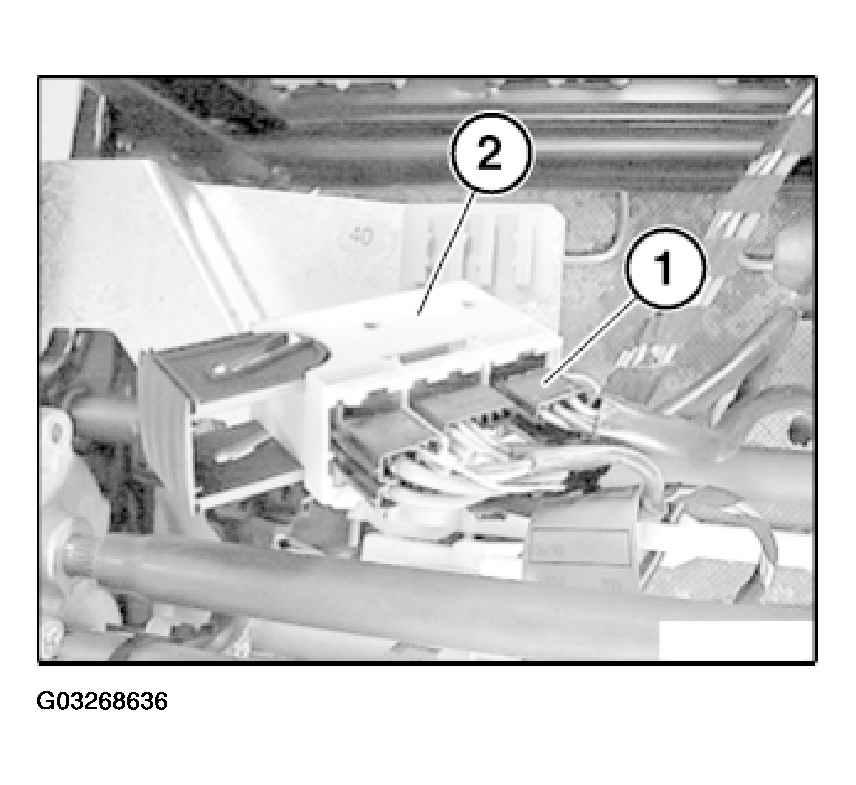

Disconnect plug connection (1) of seat heater from plug housing (2).

Fig 10: Disconnecting Plug Connection Of Seat Heater From Plug Housing
G03268636Courtesy of BMW OF NORTH AMERICA, INC.

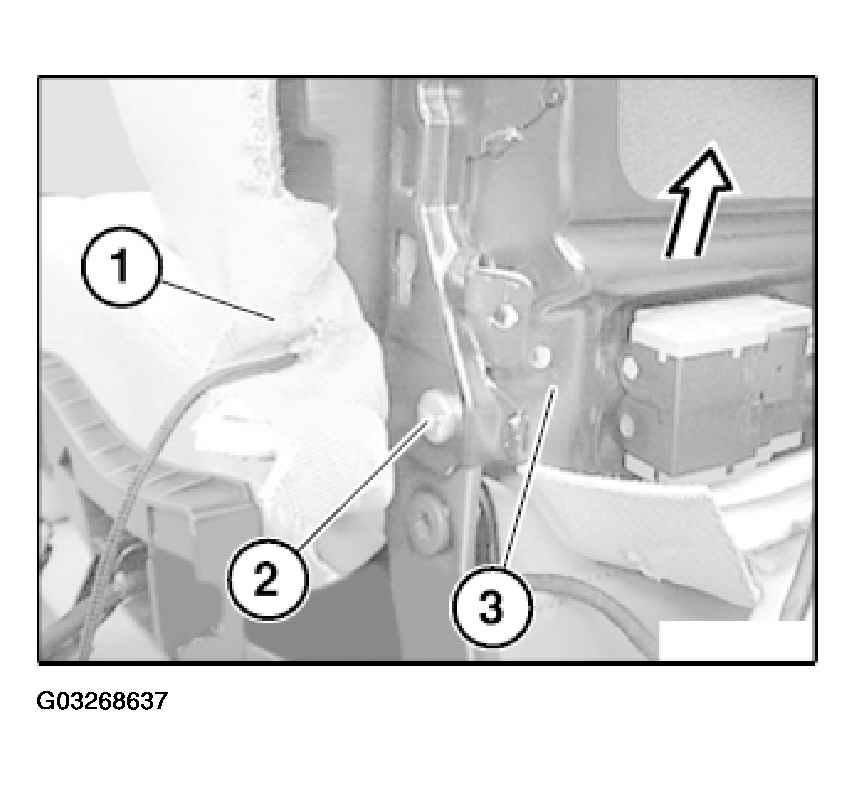

Press backrest cover (1) to one side and release screw (2) on left and right.

Fig 11: Pressing Backrest Cover
G03268637Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screw (2) (microencapsulation) and observe tightening torque 52 10 2AZ. Refer to SEATS - TIGHTENING TORQUES .

CAUTION: Do not turn screw underneath screw (2) (risk of damage).

Remove complete backrest (3) in direction of arrow.

Detach seat cover (1) from seat frame (2).

Fig 12: Detaching Seat Cover From Seat Frame
G03268638Courtesy of BMW OF NORTH AMERICA, INC.

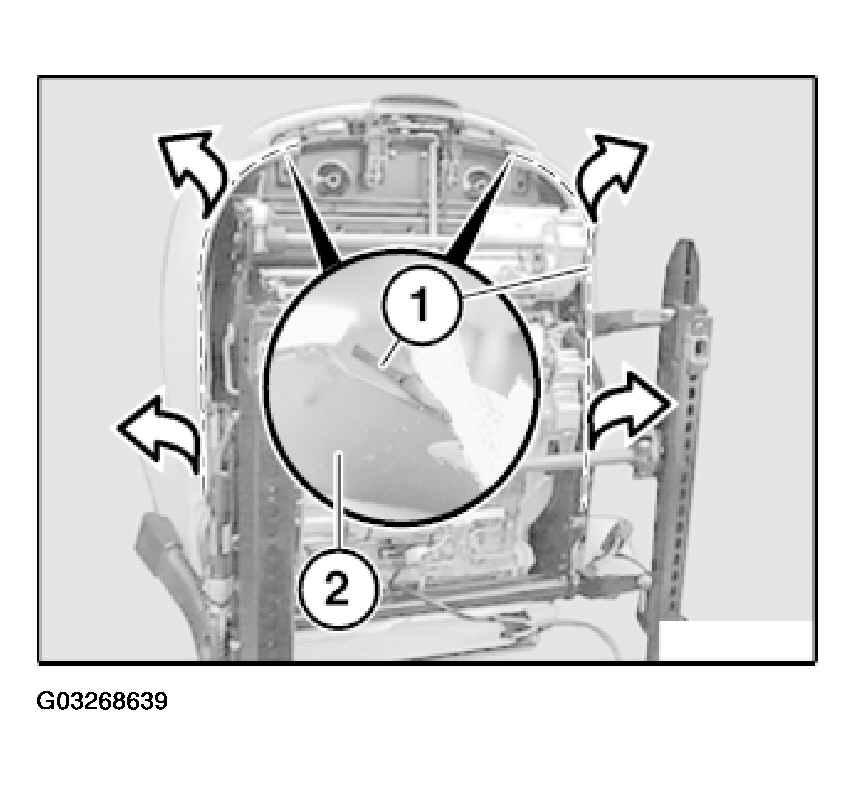

Pull out cover piping (1) completely from seat frame (2).

Fig 13: Pulling Out Cover Piping From Seat Frame
G03268639Courtesy of BMW OF NORTH AMERICA, INC.

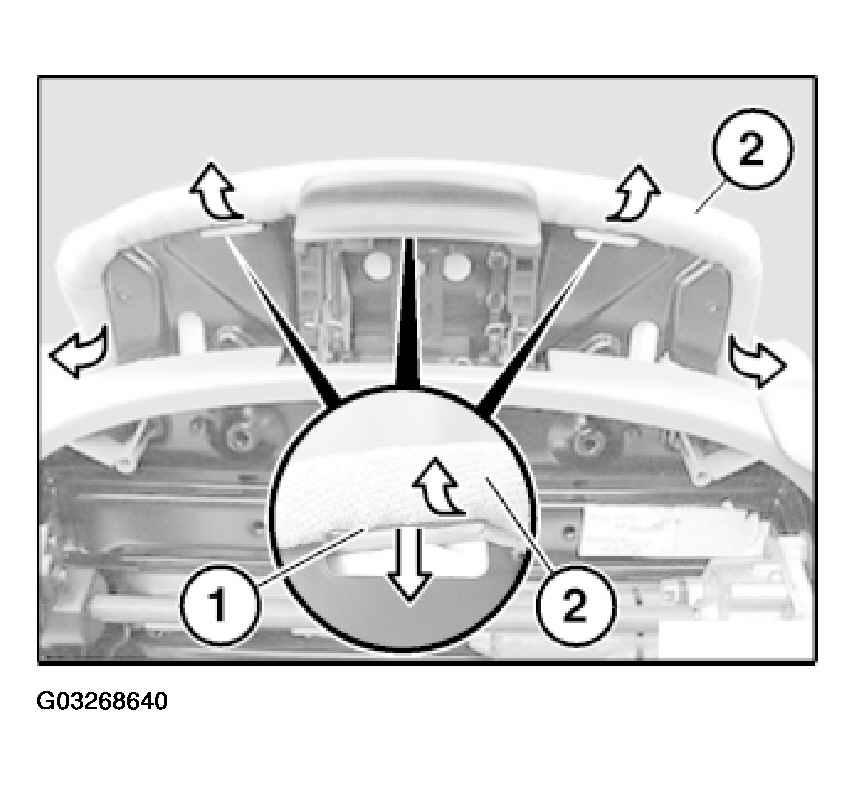

Unfasten thigh support and pull completely towards front.

Fig 14: Removing Cover Piping
G03268640Courtesy of BMW OF NORTH AMERICA, INC.

Bend open retaining plates (1) and remove cover piping (2).

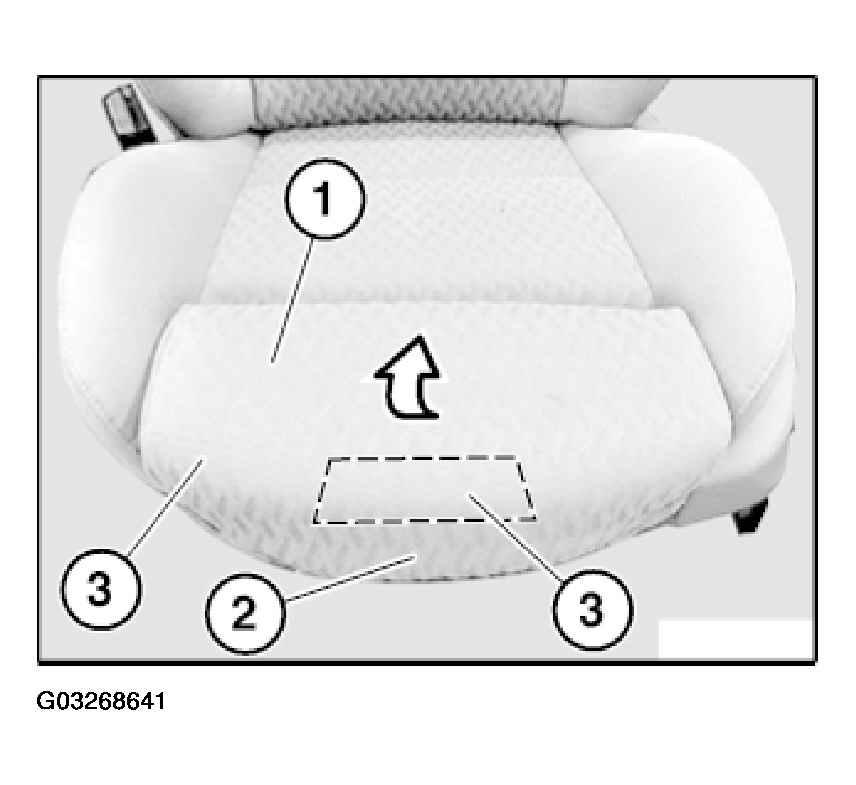

NOTE: Cushion (1) is secured at front with double-sided adhesive tape (3) to holder (2).

Pull cushion (1) towards top off holder (2).

Fig 15: Pulling Cushion Towards Top Off Holder
G03268641Courtesy of BMW OF NORTH AMERICA, INC.

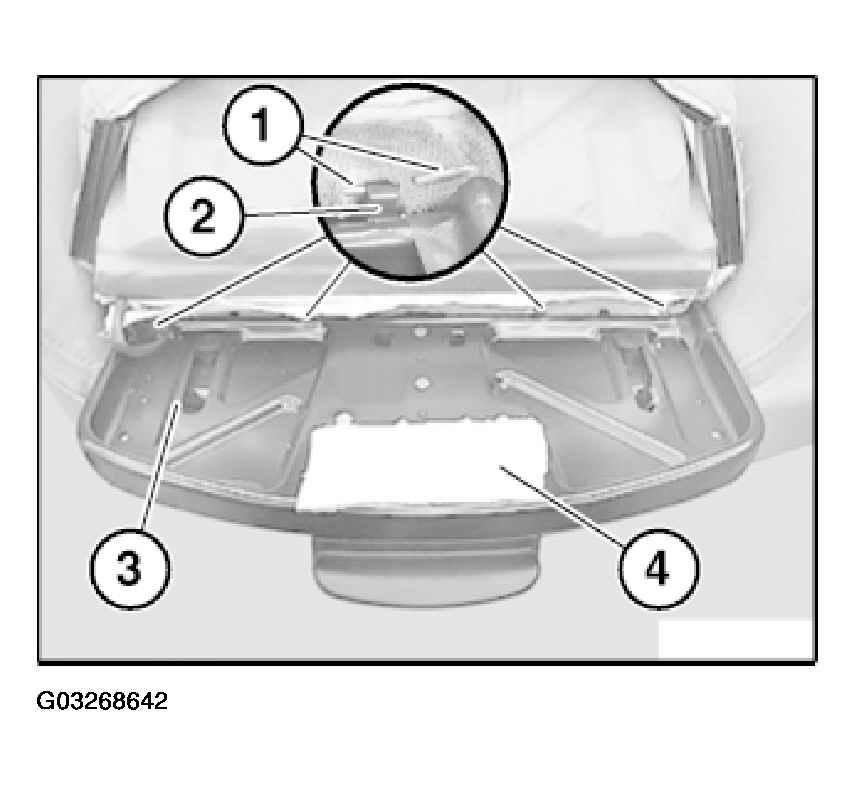

Lever trim wire (1) out of mounts (2).

Fig 16: Removing Trim Wire
G03268642Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Stick new double-sided adhesive tape (4) to holder (3) or attach mount with spray adhesive.

Model without seat heating and without seat occupancy detector:

Remove seat cover (1) with thigh support (2) towards front/top.

Fig 17: Removing Seat Cover With Thigh Support
G03268643Courtesy of BMW OF NORTH AMERICA, INC.

Model with seat heating and/or with seat occupancy detector:

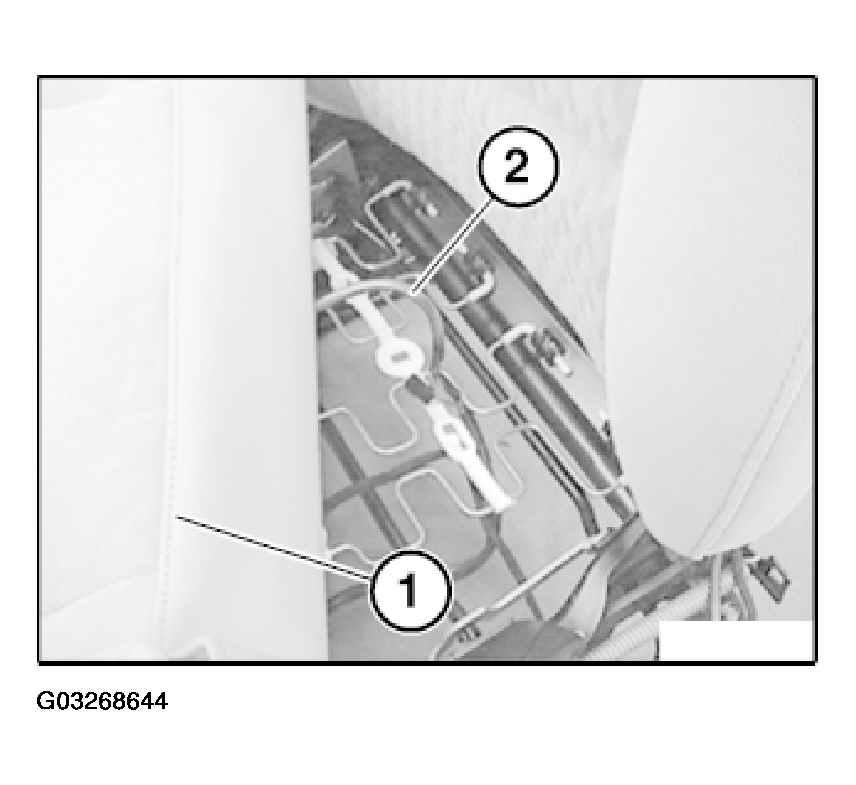

Pull seat cover (1) forward a little and feed cable (2) out.

Remove seat cover (1) with thigh support towards front/top.

Fig 18: Removing Seat Cover
G03268644Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The operation "Removing complete seat cushion" ends here.

Replacing padding or sensor mat:

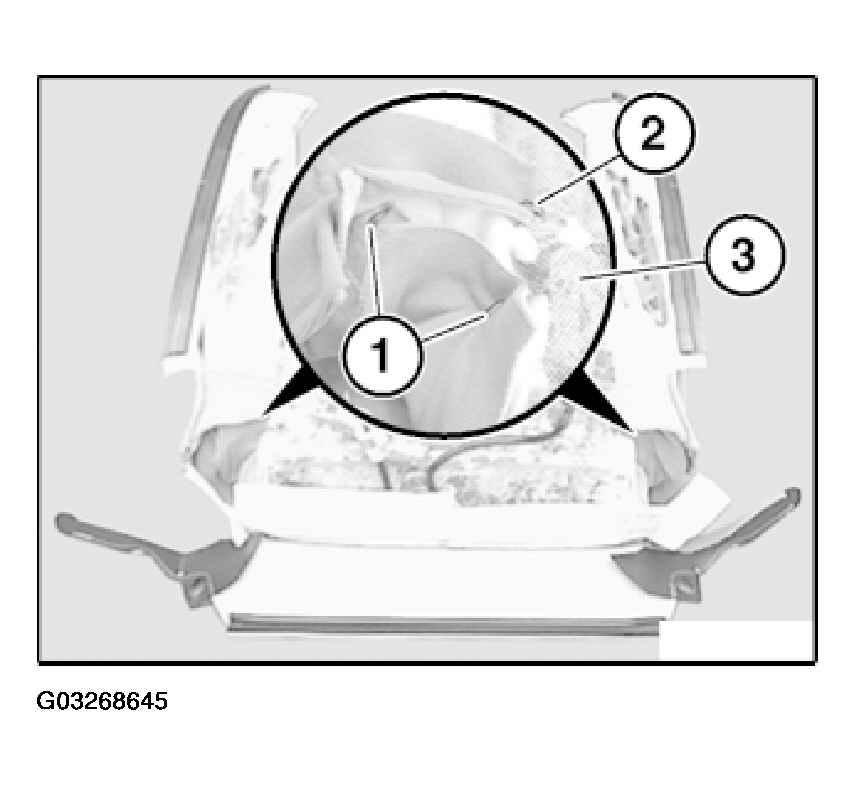

Release clips (1) and (2) at rear left/right from padding (3).

Fig 19: Replacing Padding Or Sensor Mat
G03268645Courtesy of BMW OF NORTH AMERICA, INC.

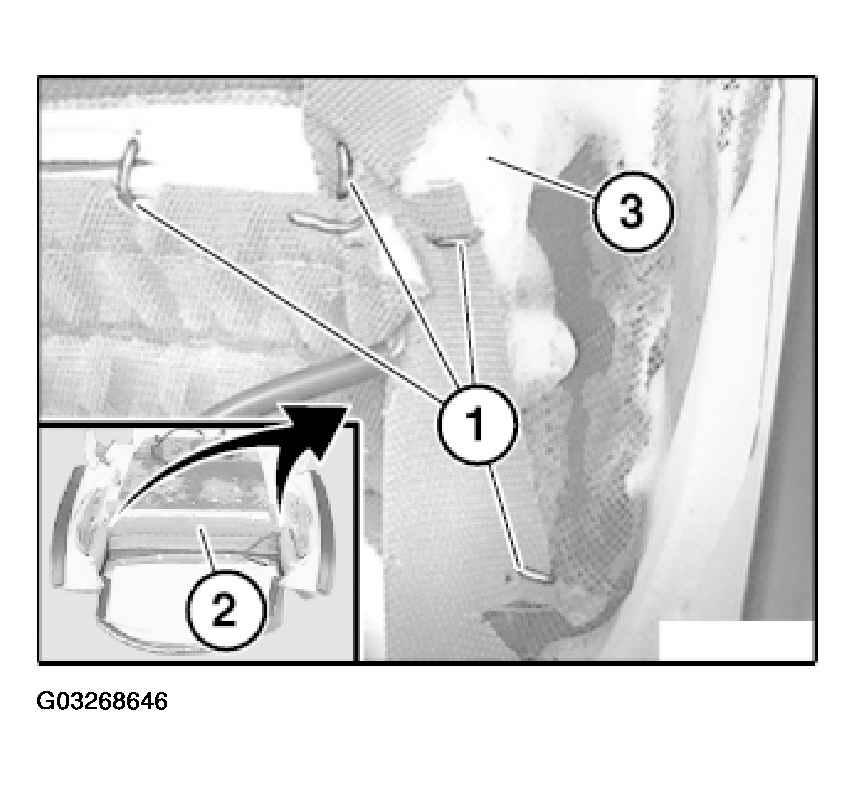

Release all clips (1) on left/right and (2) center from padding (3).

Fig 20: Releasing Clips
G03268646Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

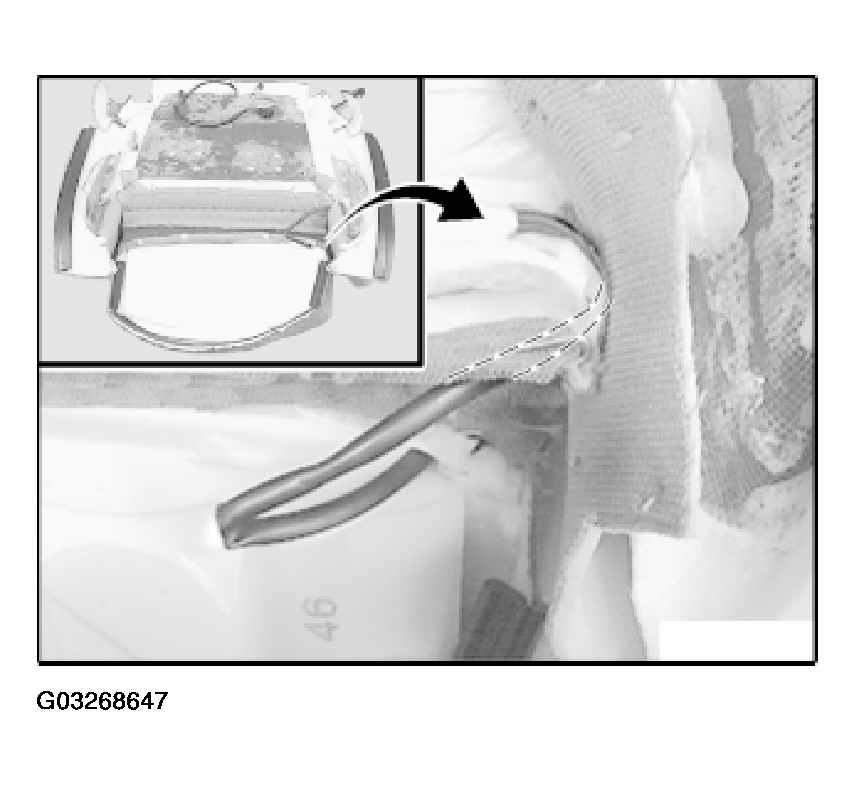

  1. Note routing of seat heater cable (1).
    2. Fig 21: Identifying Seat Heater Cable
    G03268647Courtesy of BMW OF NORTH AMERICA, INC.
  2. Do not damage with clips.

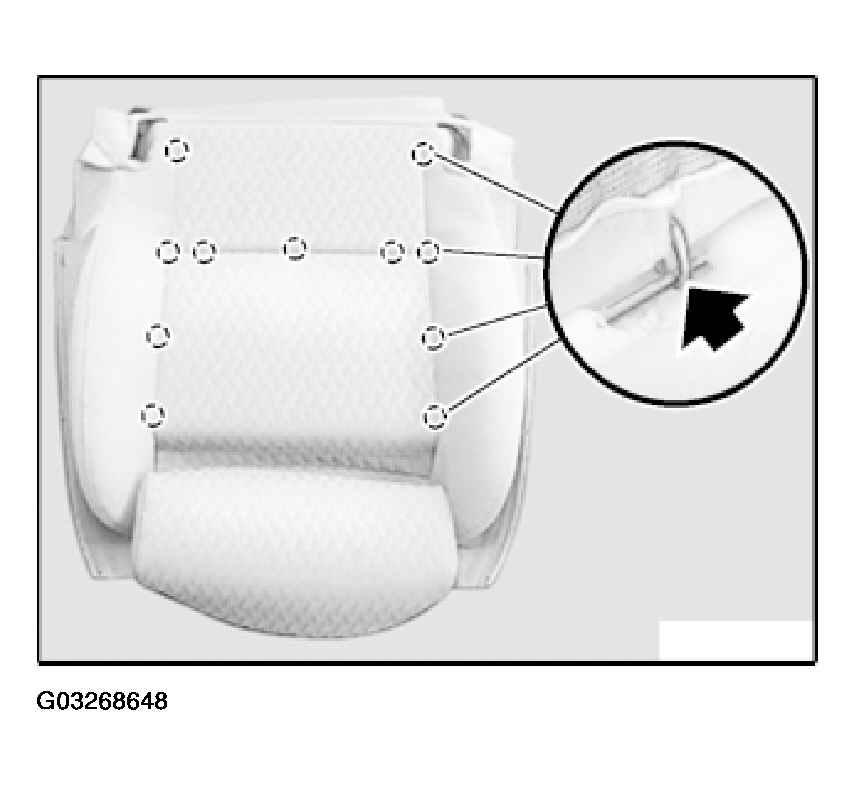

Release all retainers.

Fig 22: Removing Seat Cover From Support
G03268648Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover from support (foam rubber section).

Remove all remnants of retainers from seat cover and support.

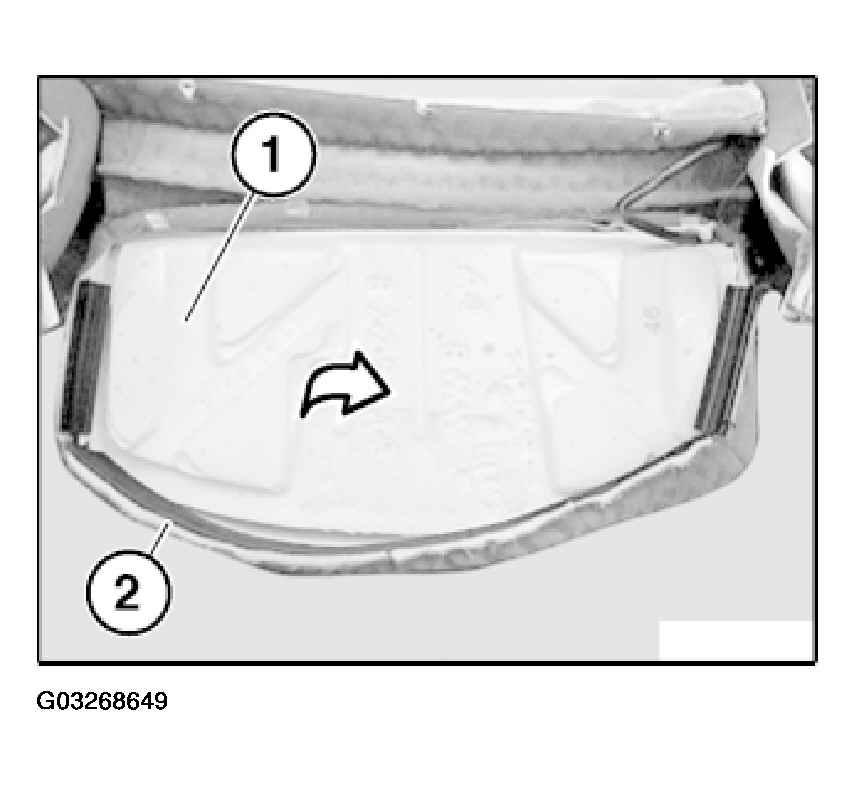

Remove padding (1) from seat cover (2).

Fig 23: Removing Padding From Seat Cover
G03268649Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

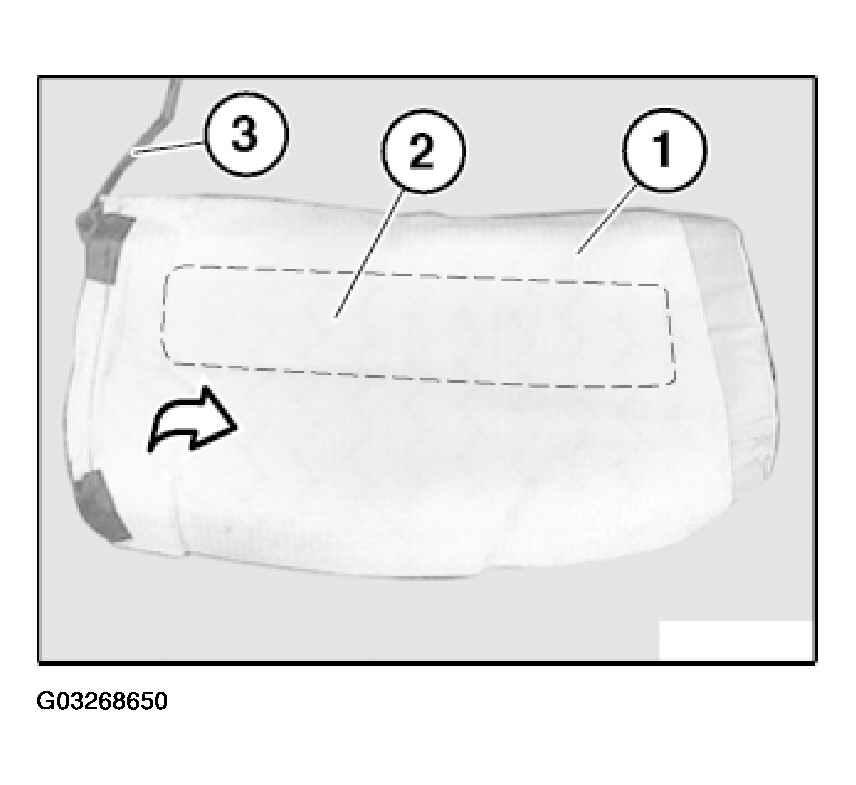

  1. If necessary, detach heating mat (1) from adhesive tape (2) of thigh support.
    Fig 24: Detaching Heating Mat From Adhesive Tape
    G03268650Courtesy of BMW OF NORTH AMERICA, INC.
  2. 3 Seat heater cable

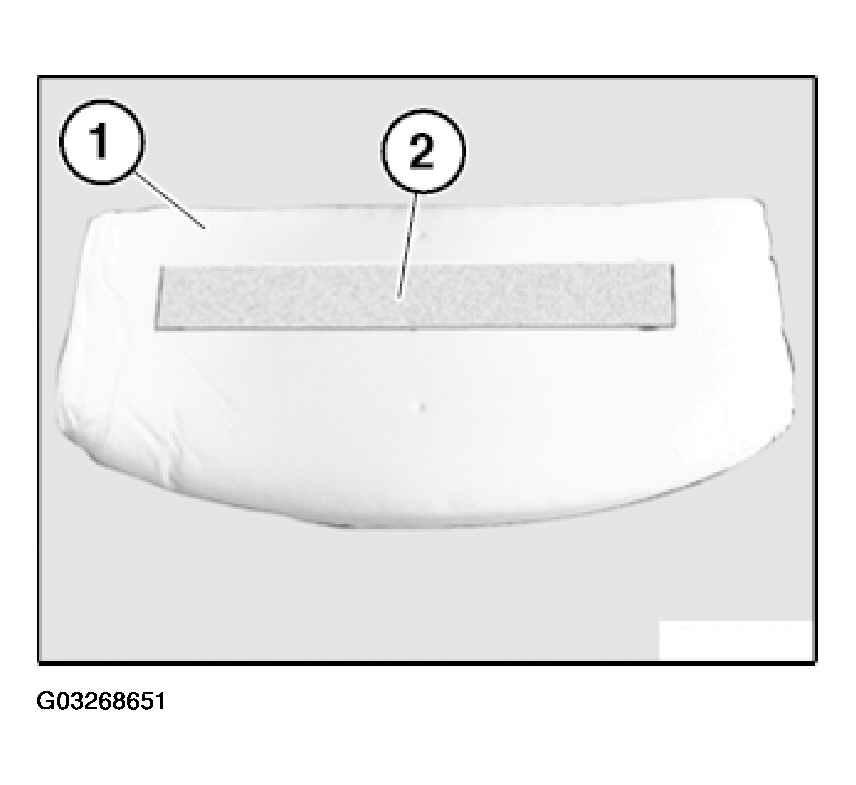

Stick double-sided adhesive tape (2) to padding (1) or coat with spray adhesive.

Fig 25: Sticking Double-Sided Adhesive Tape To Padding
G03268651Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector:

Installation:

  1. Feed seat heater cable (1) through bore (3).
  2. Feed seat heater cable (2) through bore (4).

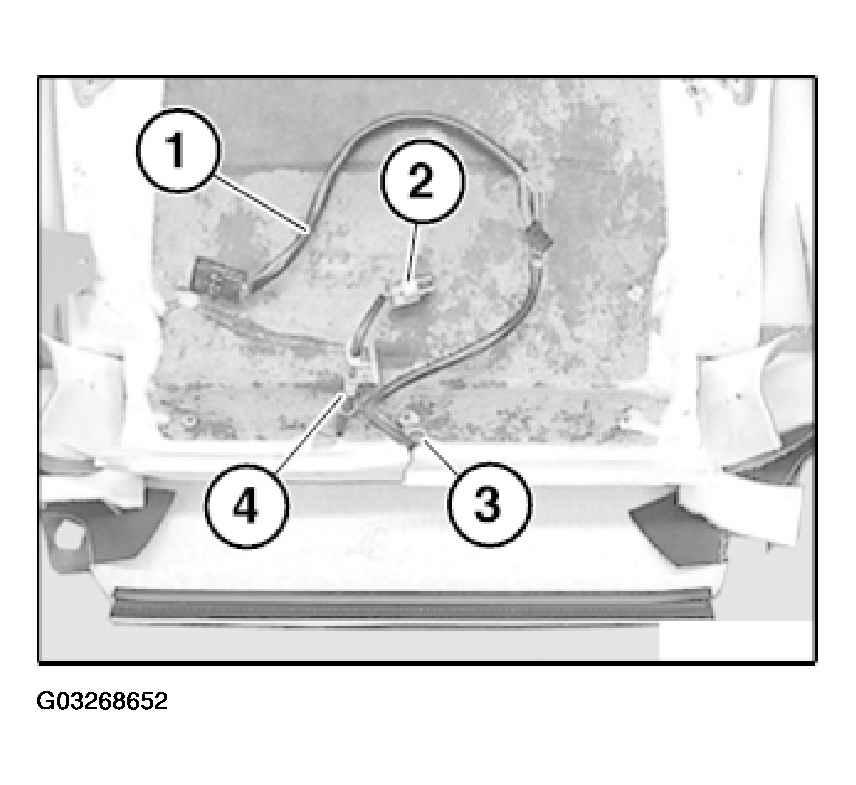

Fig 26: Identifying Seat Heater Cable
G03268652Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

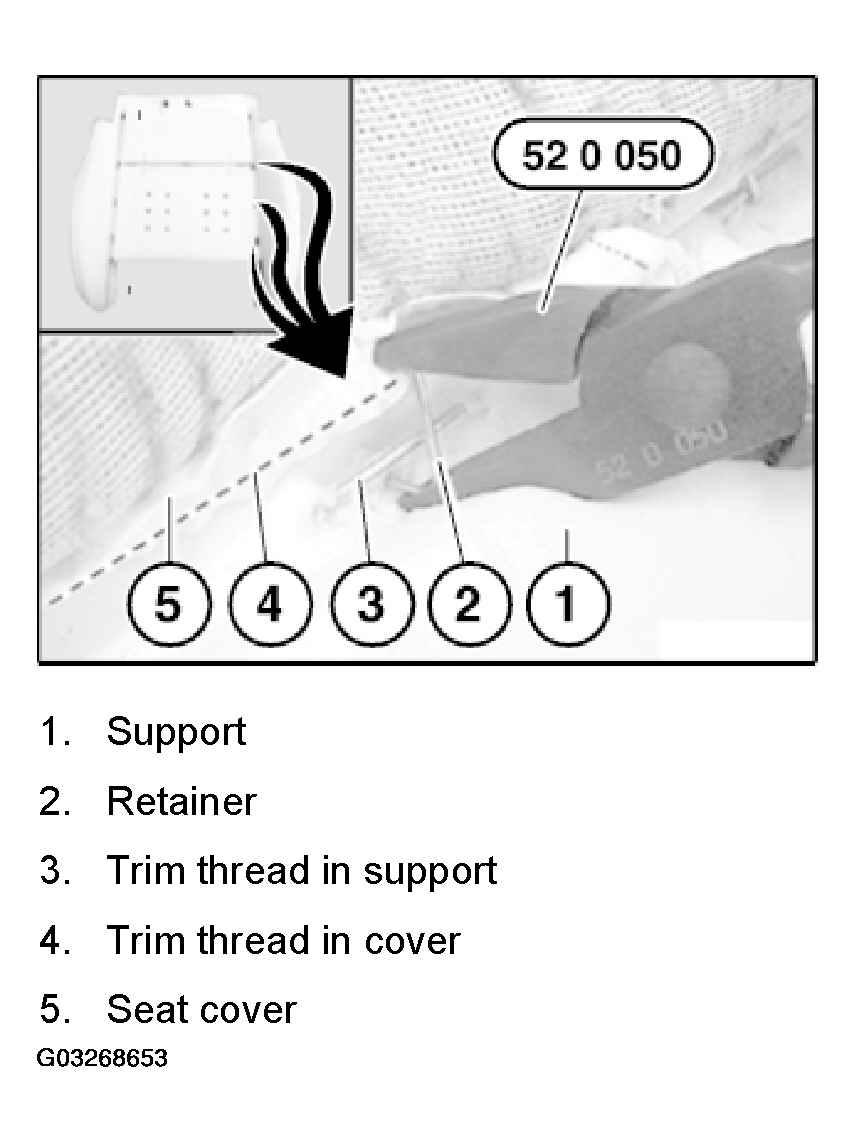

Bend new clips (2) closed with special tool 52 0 050.

Fig 27: Bending New Clips
G03268653Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

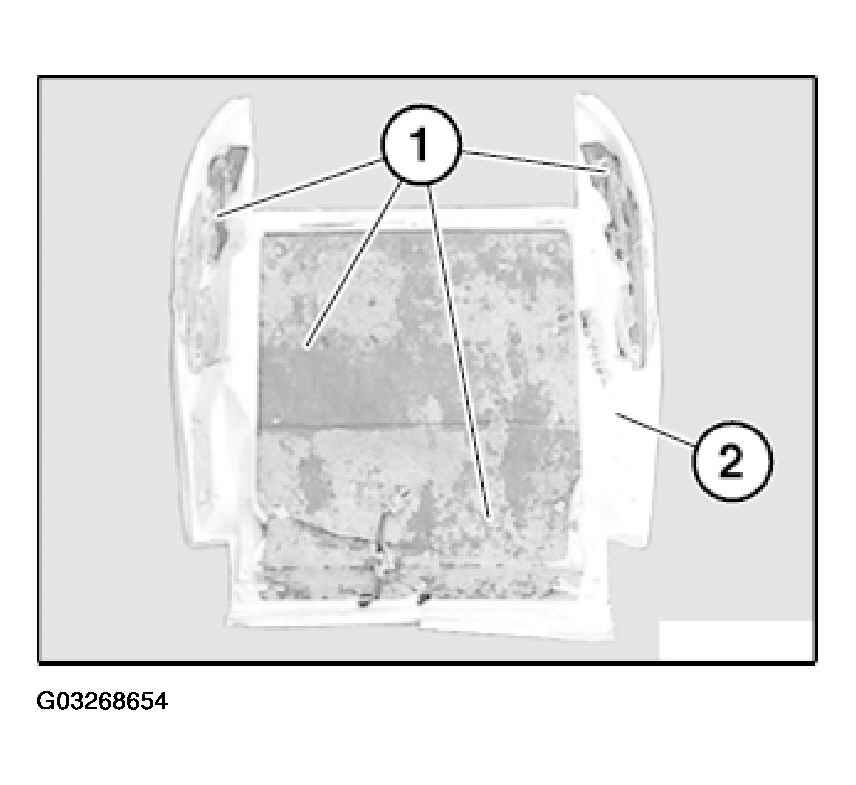

  1. The padding (2) is coated with wax (1) to prevent grinding noises.
    Fig 28: Identifying Coating On Padding
    G03268654Courtesy of BMW OF NORTH AMERICA, INC.
  2. Do not remove wax (1) on support (2).

Passenger seat only (replacing support):

Installation:

  1. Make sure foam is not extensively damaged (malfunction of passenger seat occupancy detector).

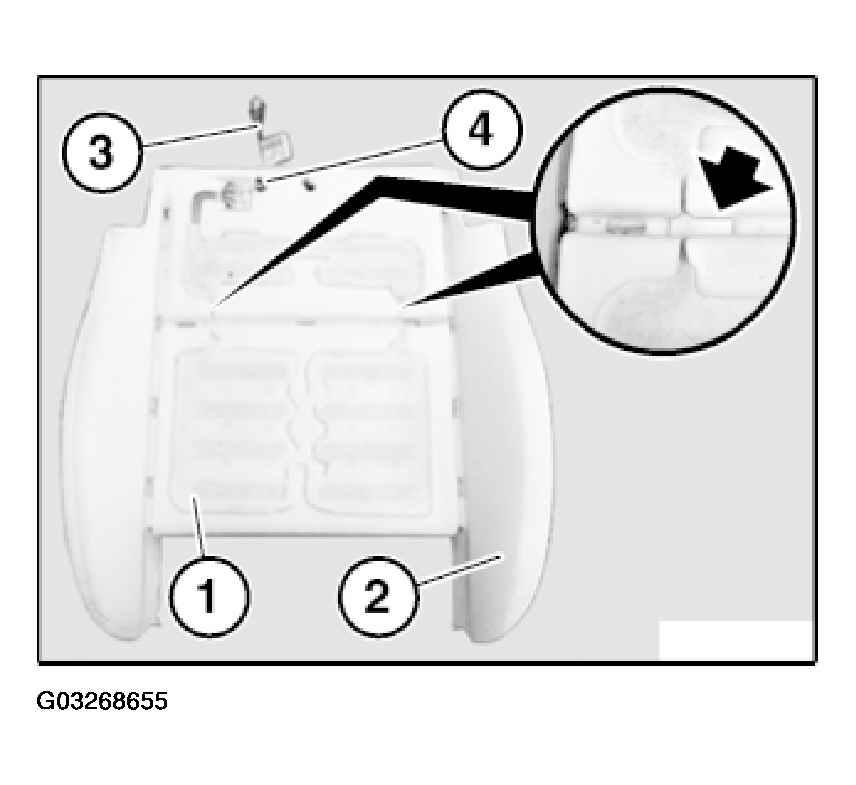

    2. Fig 29: Installing Sensor Mat
    G03268655Courtesy of BMW OF NORTH AMERICA, INC.
  2. Lay sensor mat connection without creasing into groove on padding.
  3. Fit new sensor mat (1) for passenger seat occupancy detector.
  4. Align new sensor mat (1) on foam (2).
  5. Feed plug (3) through hole (4).

Installation:

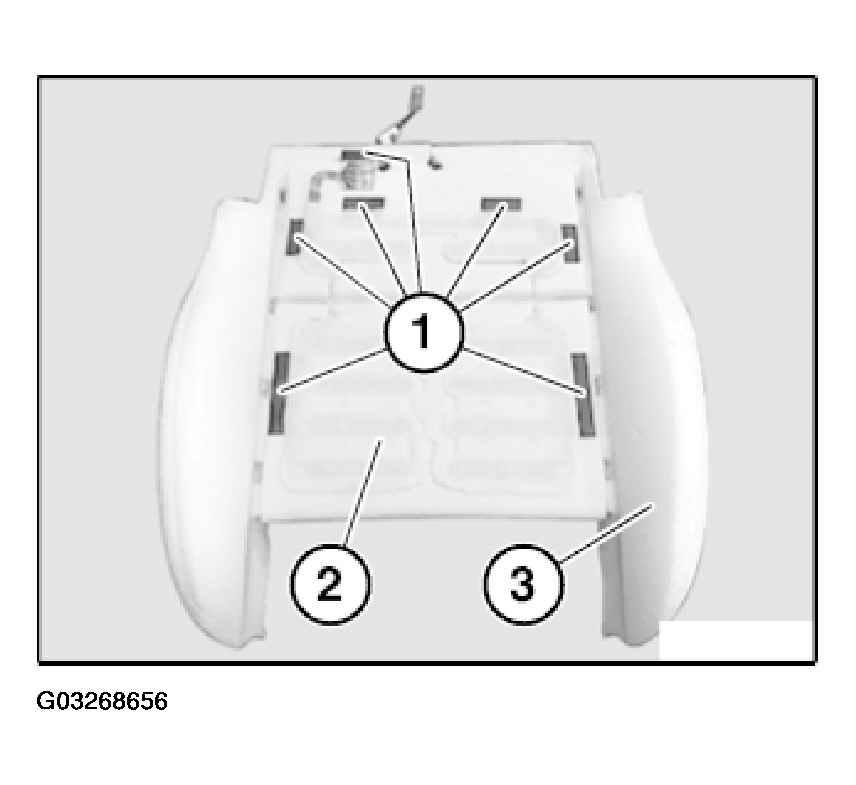

  1. Detach liner (1) at individual points and stick sensor mat (2) onto foam (3).
    2. Fig 30: Detaching Liner
    G03268656Courtesy of BMW OF NORTH AMERICA, INC.

Liner is the protective film on adhesive area.

NOTE: The operation "Replacing padding or sensor mat" ends here.

Replacing seat cover:

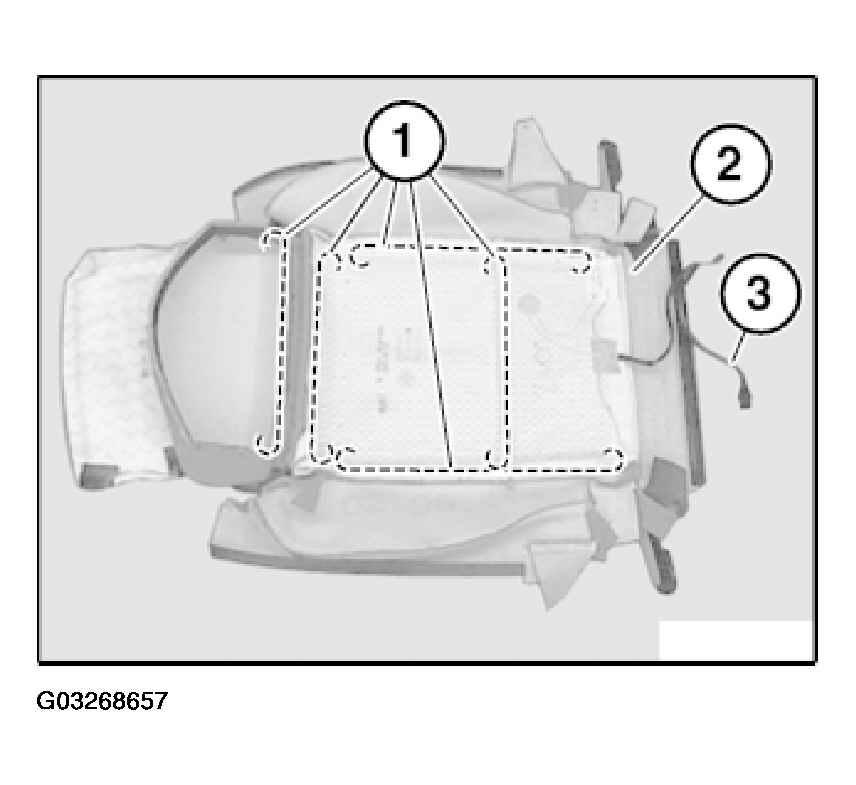

Pull trim threads (1) out of seat cover (2).

Fig 31: Pulling Trim Threads Out Of Seat Cover
G03268657Courtesy of BMW OF NORTH AMERICA, INC.

Cut new seat cover (2) to size and insert trim threads (1).

3 Seat heater cable
