52 16 040 Removing And Installing/Replacing Outer Cover On Front Left Or Right Seat (Sports/Electric)

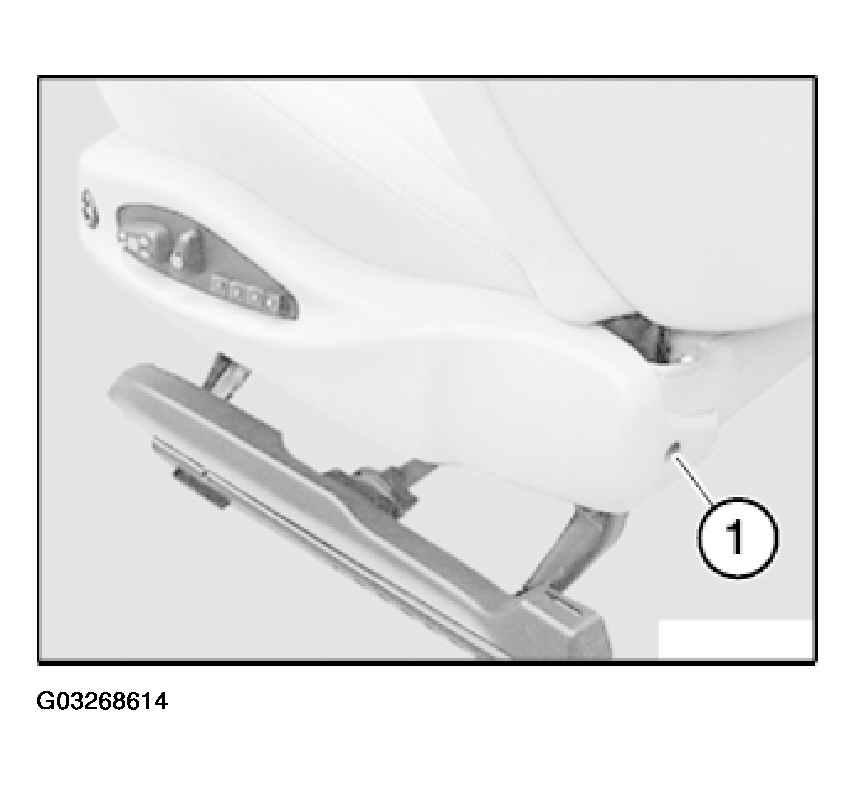

Unscrew bolt (1).

Fig 1: Identifying Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

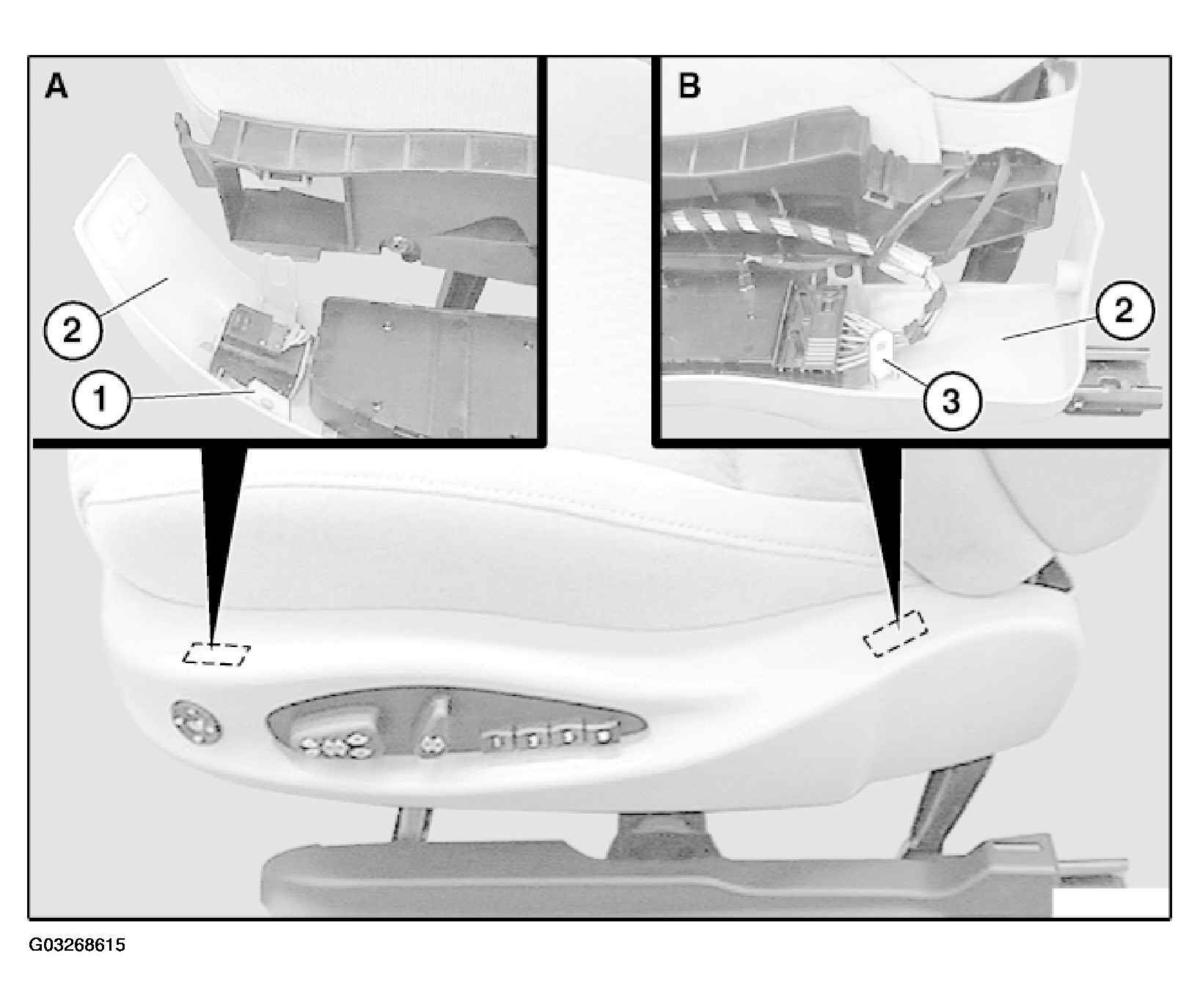

Removing top cover:

Fig 2: Removing Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

1. A Snap out catch (1) on front cover (2) towards bottom and pull cover (2) outwards a little.
2. B Snap out catch (3) on rear cover (2) towards front/bottom and pull cover (2) outwards a little.

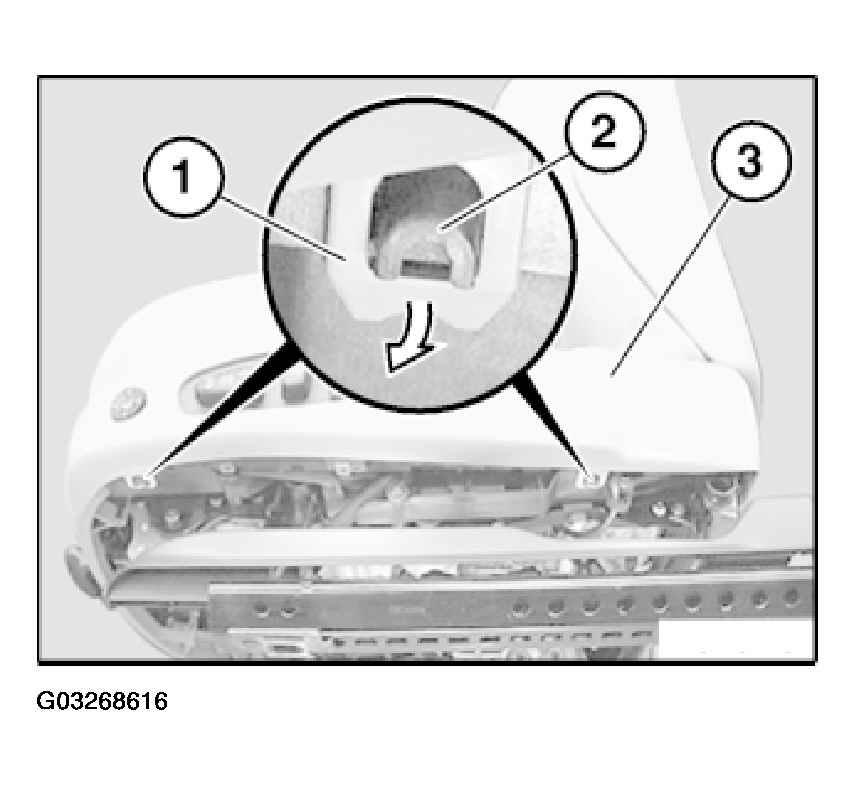

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Removing Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

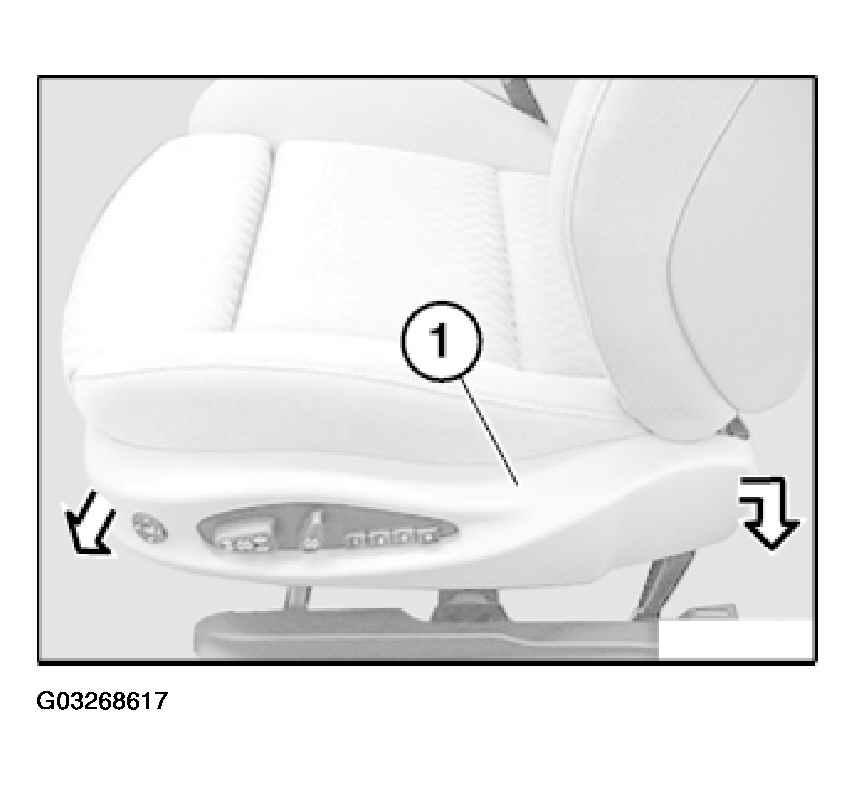

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

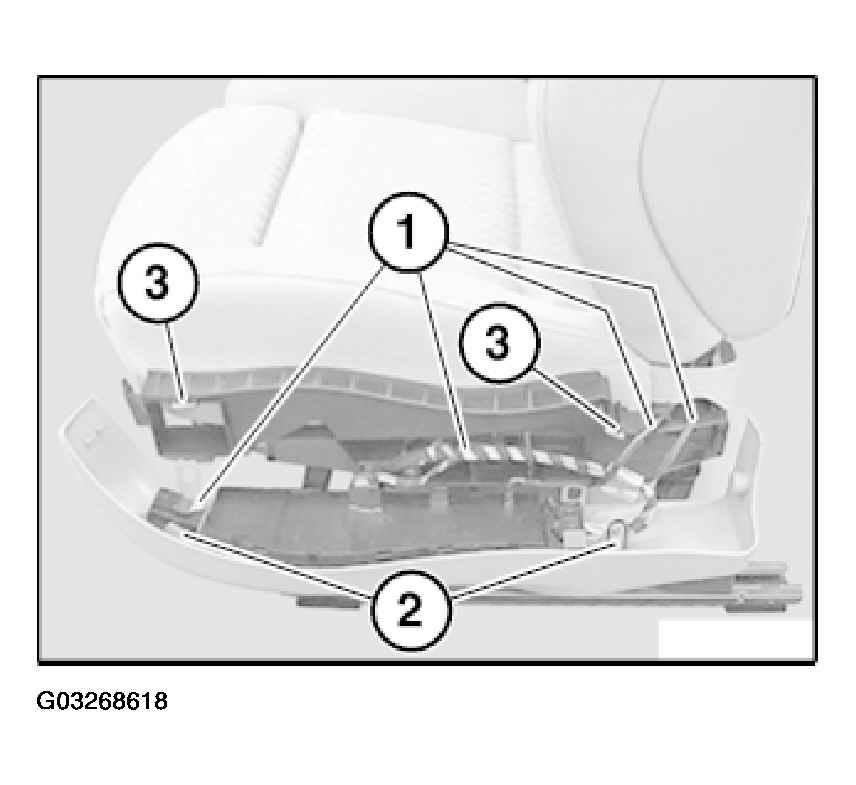

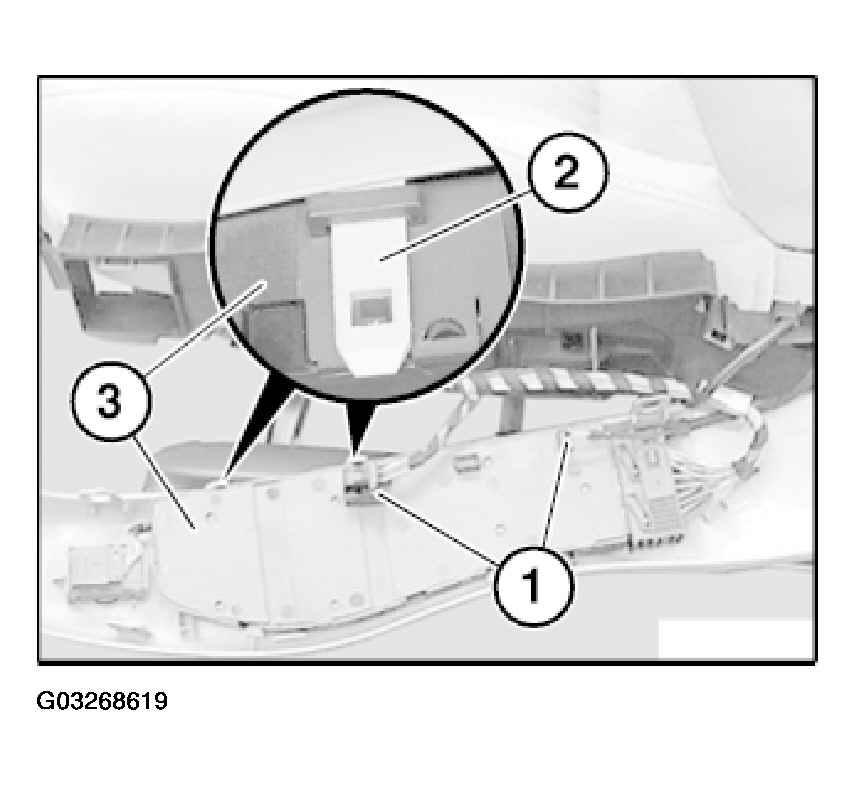

1. Do not crush cables (1) during installation.
Fig 5: Inserting Lugs Into Mounts
Courtesy of BMW OF NORTH AMERICA, INC.
2. Insert lugs (2) into mounts (3) and snap into place.

Disconnect plug connection (1).

Fig 6: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out lugs (2) and detach switch combination (3).

Installation:

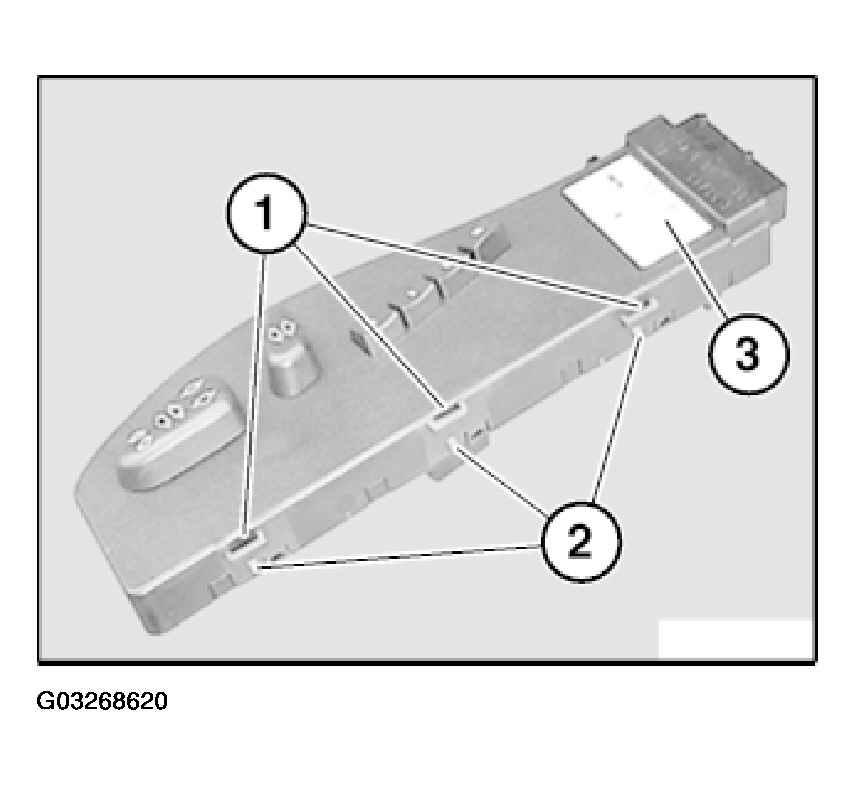

1. Guides (1) and catches (2) on switch combination (3) must not be damaged.

Fig 7: Identifying Guides And Catches On Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

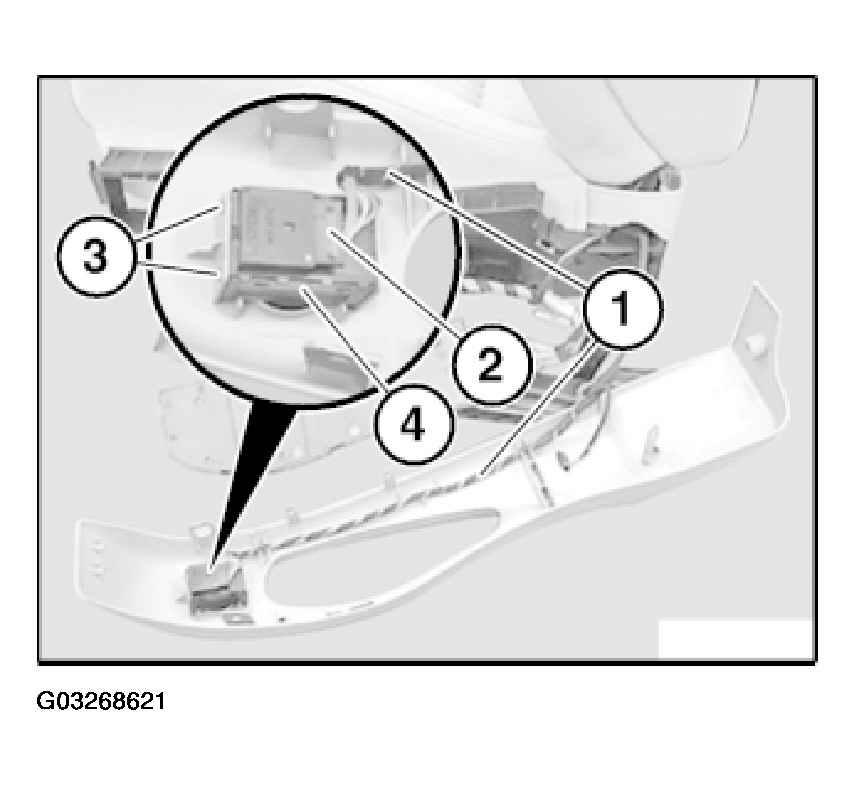

Model with lumbar supports:

If necessary, expose cable (1) and disconnect plug connection (2).

Fig 8: Removing Switch From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

Installation:

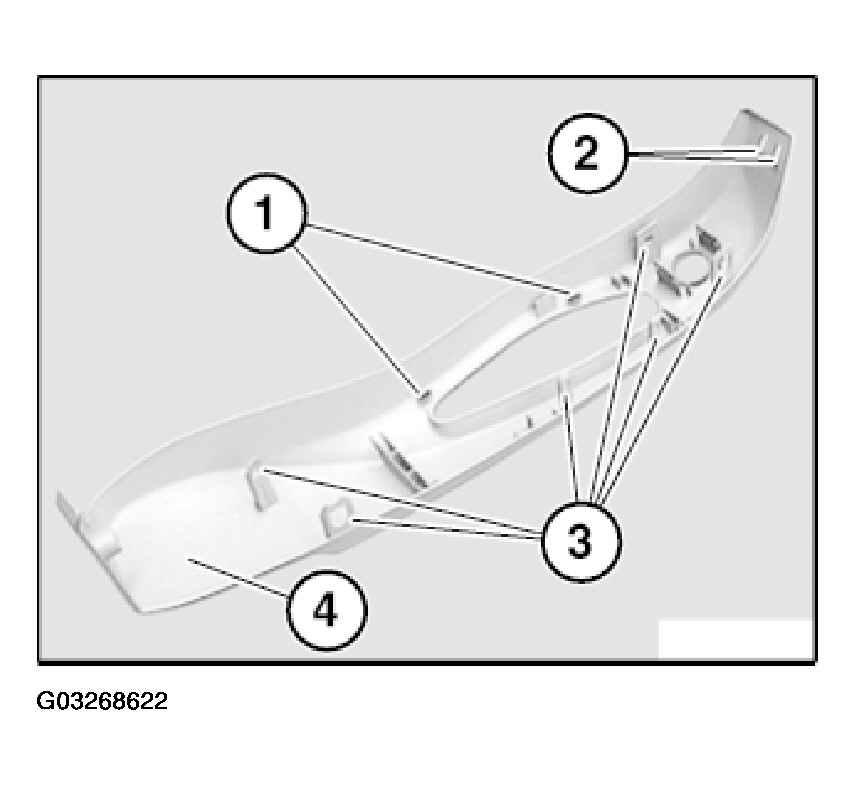

1. Following parts must not be damaged, replace cover (4) if necessary:

1. Mounts for switch combination
2. Guide, front
3. Tabs
   Fig 9: Identifying Parts

   Courtesy of BMW OF NORTH AMERICA, INC.

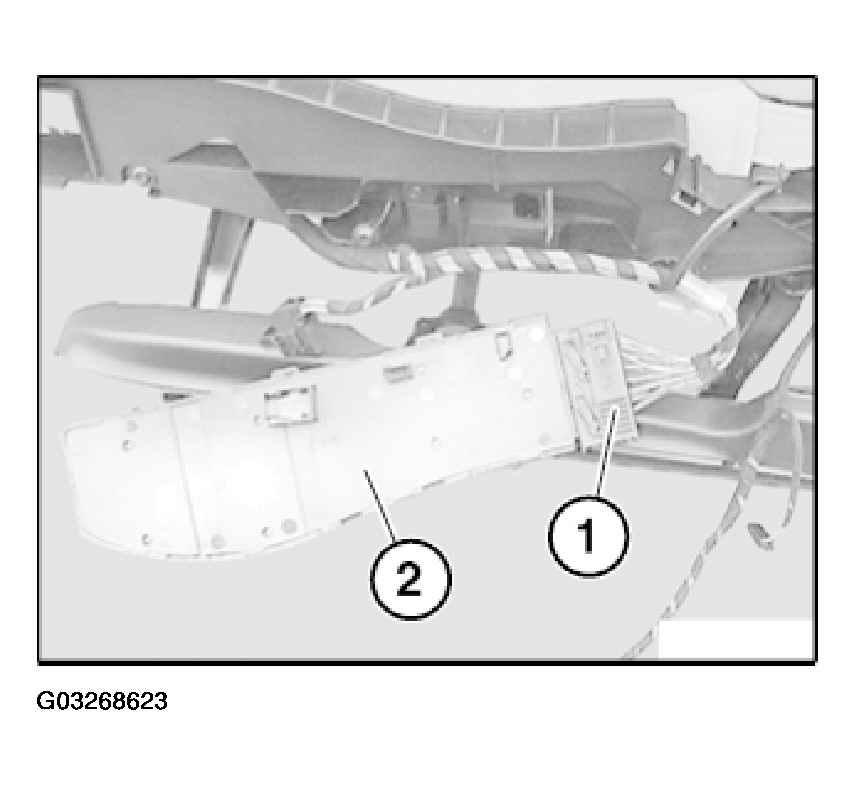

Replacement of switch combination only or in event of further work on front seat:

Disconnect plug connection (1) and remove switch combination (2).

Fig 10: Removing Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.
