32 31 102 Replacing sleeve for steering spindle (vehicle interior)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower section of steering spindle, refer to 32 31 070 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING SPINDLE
Remove footwell side trim panel on A-pillar, refer to 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT

After installation:

Carry out steering angle sensor adjustment, refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT

Press carpet to one side and secure.

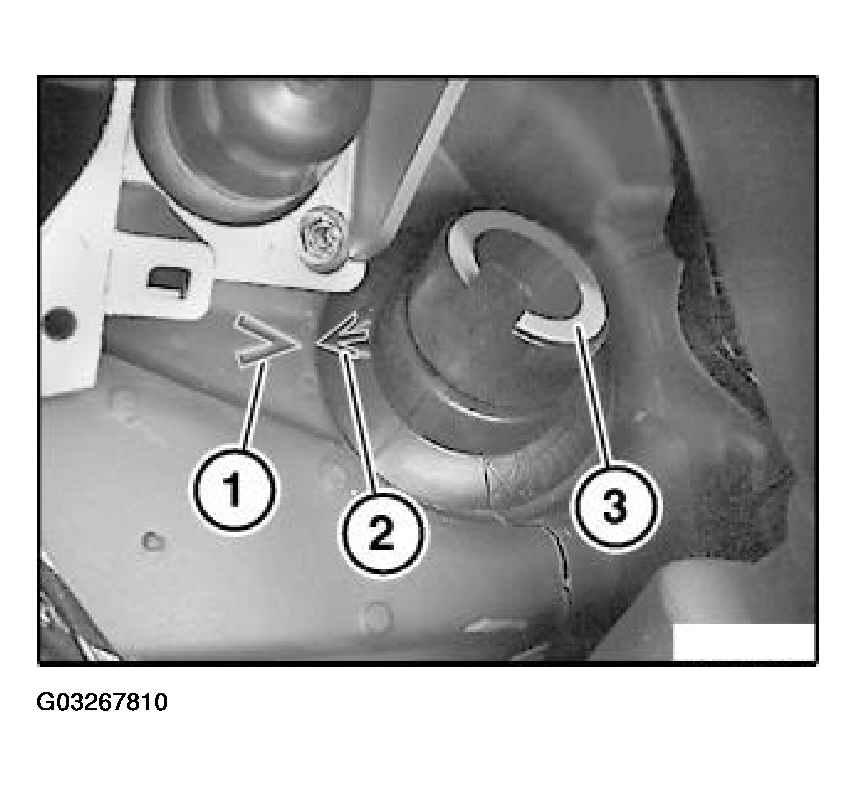

Fig 1: Removing Sleeve From Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sleeve from bulkhead.

Installation:

Grease/spray sleeve from outside with silicone grease.

Align sleeve depending on version (LHD/RHD) to bulkhead and insert in bulkhead.

Left- Arrow (2) with LHD lettering on sleeve must be aligned with arrow (1) on bulkhead. drive

Right- Arrow (2) with RHD lettering on sleeve must be aligned with arrow (1) in bulkhead.

hand

drive

Insert plastic ring (3) in sleeve.
