32 41 060 Removing And Installing/Replacing Vane Pump For Power Steering (N62, N62/S)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system. Seal off pipe connections with plugs.

Necessary preliminary tasks:

Draw off and dispose off hydraulic fluid from fluid reservoir
Remove front assembly underside protection, refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION .
Remove belt pulley, refer to 32 41 100 REMOVING AND INSTALLING/REPLACING BELT PULLEY ON VANE PUMP FOR POWER STEERING

Release banjo bolt (1) and detach pressure line from vane pump.

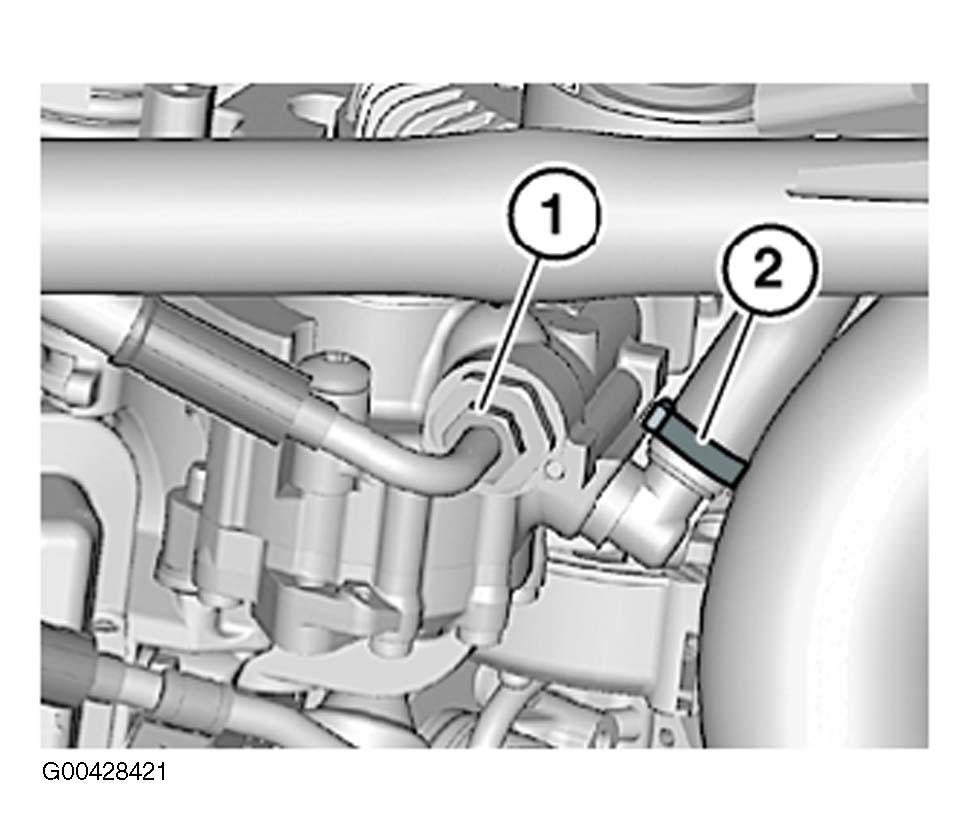

Fig 1: Detaching Pressure Line From Vane Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (2) and detach suction line from vane pump.

Installation:

Replace all sealing rings.

Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.

Tightening torque, 32 41 3AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Release nut (1) / screw (up to build date 06/2004).

Release bolt (2) and remove vane pump (3) towards bottom.

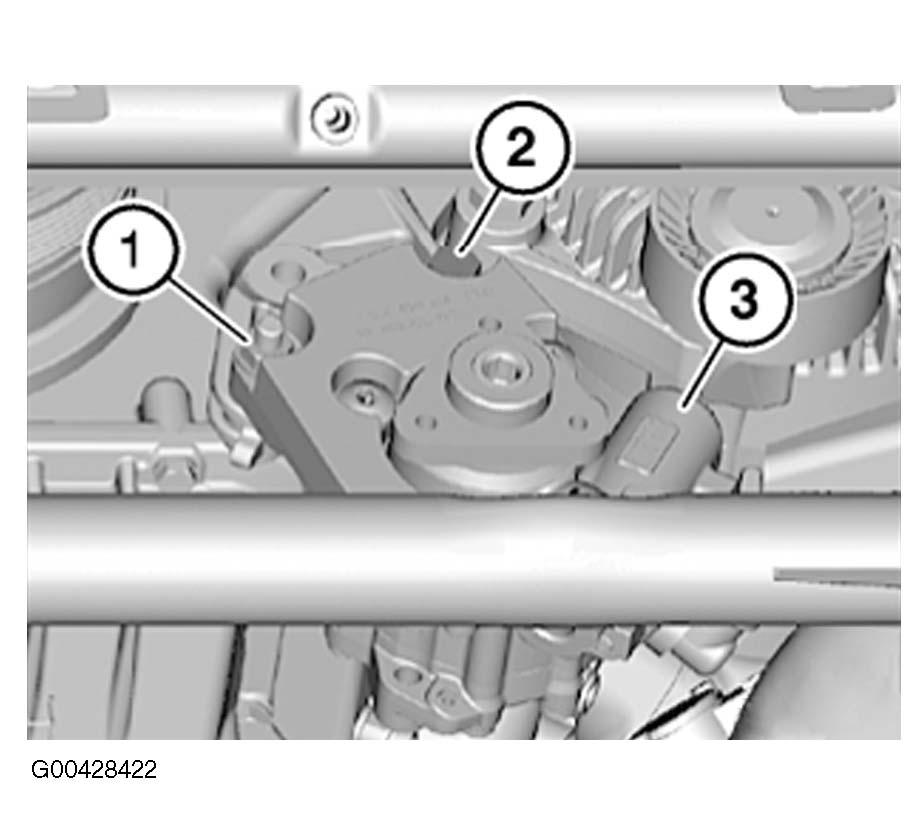

Fig 2: Removing Vane Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 32 41 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

After installation:

Fill and bleed hydraulic system, refer to 32 13 006 Bleeding power steering unit
Check pipe connections for leaks
