32 41 009 Checking function of power steering vane pump
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 32 4 000
IMPORTANT:
Prior to this check, first check all hose connections, the vane pump and the power steering gear for leaks.
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
After installation:
- Fill and bleed hydraulic system, refer to 32 13 006 Bleeding power steering unit
- Check pipe connections for leaks
Necessary preliminary tasks:
- Draw off and dispose off hydraulic fluid from fluid reservoir Observe country-specific waste-disposal regulations
- Remove front assembly underside protection, refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION
- Disconnect pressure line from vane pump, refer to 32 41 060 REMOVING AND INSTALLING/REPLACING VANE PUMP FOR POWER STEERING (N62, N62/S) . For tightening, refer to 32 41 PUMP AND OIL SUPPLY .
Connecting special tool:
Connect special tool 32 4 000 (refer to 32 41... INSTRUCTIONS FOR USING SPECIAL TOOL 32 4 000 ) with new sealing rings to vane pump and pressure line.
- Connection, vane pump
- Connection, power steering gear

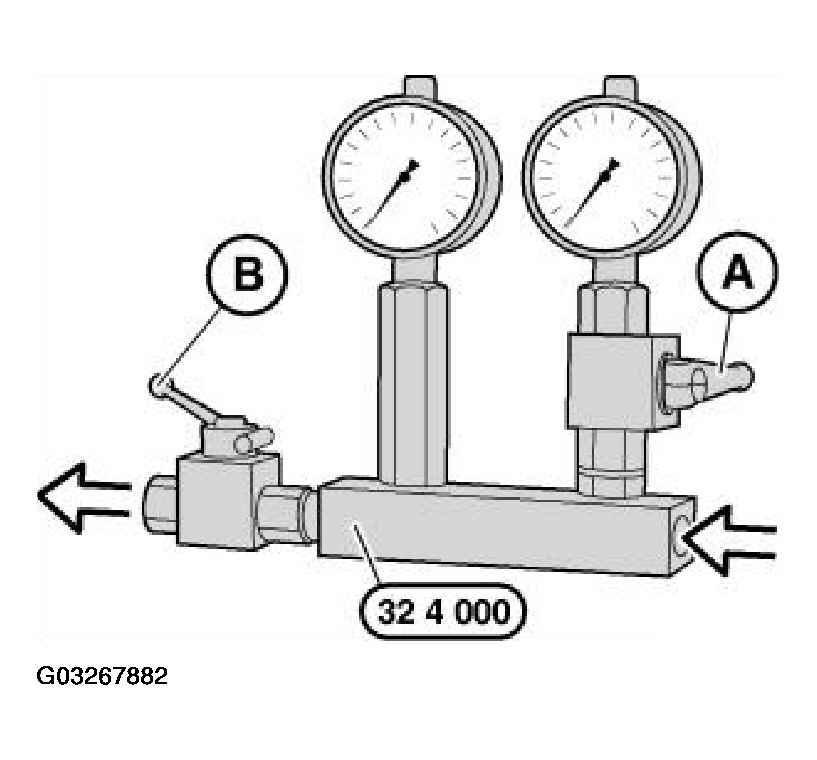

Checking pump pressure:
- Close valve (A).
- Open valve (B).
- Fill and bleed hydraulic system, refer to 32 13 006 BLEEDING POWER STEERING UNIT
- Start engine.
- Heat hydraulic fluid to approx. 50 °C by moving steering wheel at increased engine speed.
- Close valve (B) for max. 10 secs. and read off pressure.
- Compare measured pressure with specified nominal pressure. Refer to STEERING AND WHEEL ALIGNMENT - TECHNICAL DATA
.
Replace vane pump if the nominal pressure is exceeded by more than 10 %. Refer to 32 41 060 REMOVING AND INSTALLING/REPLACING VANE PUMP FOR POWER STEERING (N62, N62/S) .
Check belt tension if the nominal pressure is undershot by more than 10 %. Replace vane pump if belt tension is OK. Refer to 32 41 060 REMOVING AND INSTALLING/REPLACING VANE PUMP FOR POWER STEERING (N62, N62/S) .
