84 11 550 Removing and installing/replacing handsfree microphone

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front roofliner trim, refer to 51 44 ... REMOVING AND INSTALLING FRONT ROOFLINER TRIM .

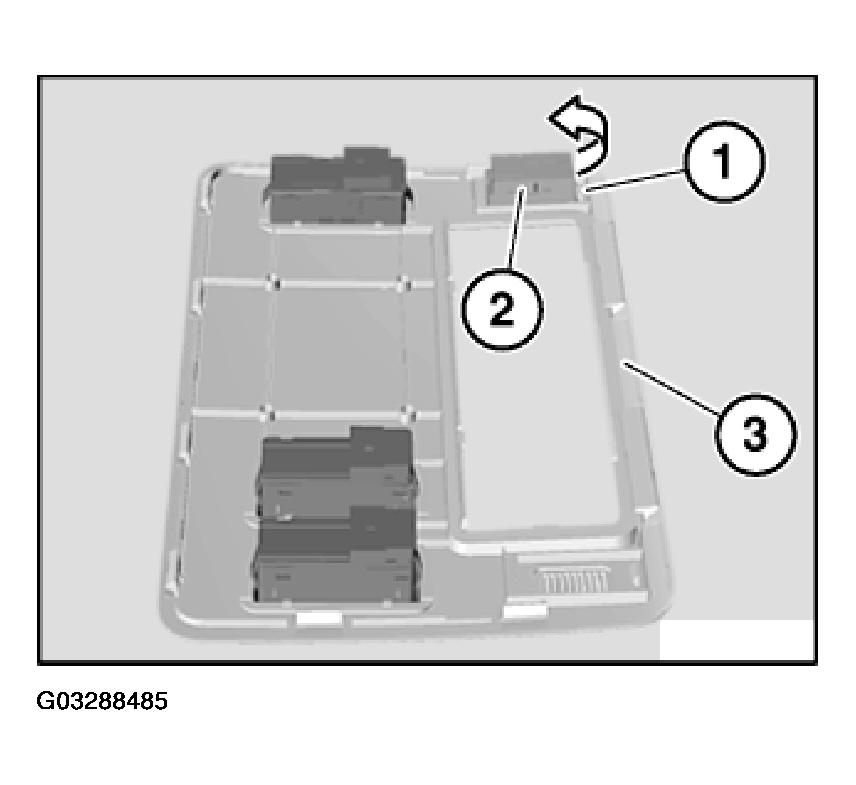

Unlock catch (1) and feed hands-free microphone (2) in direction of arrow out of front roofliner trim (3).

Fig 1: Unlocking Catch And Feed Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow on hands-free microphone (2) must point in direction of travel.
